Connecting the Converge 13
BASIC CONNECTIONS
Connecting the Converge should be a smooth process. Once basic connections for audio
conferencing are made, the system is ready to use.
SETTING UP AUDIO CONFERENCING
1. If you are installing the mixer into a rack, remove the side panels, rotate them and
then reattach.
2. Connect the first microphone breakout box to the mixer with the 18” Cat. 5 cable.
CONNECTING THE CONVERGE
18”/45.72cm
Mixer
MIC 1 MIC 2 MIC 3
IN
OUT
MIC POD IN
RECORD / PLAYBACK
L
R
IN
L +
L -
R +
R -
SPEAKER
IN OUT
LINE
12VDC 2.5A
+ - !
Breakout Box

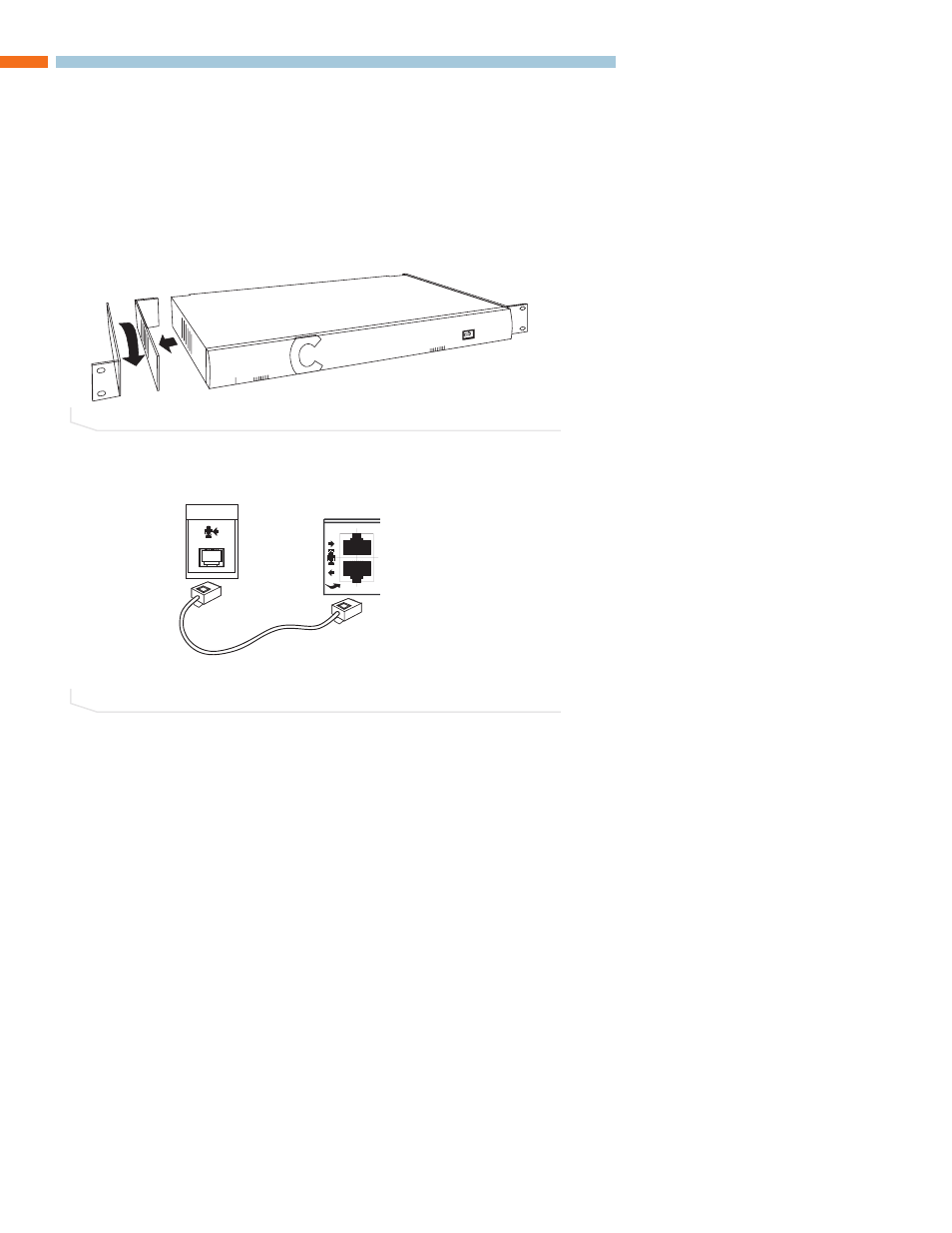

FIGURE 2.1 Attach rack ears
FIGURE 2.2 Connect to first microphone breakout box
