LINE INPUT AND OUTPUT
The Converge mixer has jacks for Line Input and Line Output that allow you to connect dif-
ferent auxiliary devices. You can configure audio levels for these devices through RAV-
Ware. You can use devices that have preconfigured audio settings from the Device
Toolbox or you can manually set the audio settings for your line in and line out devices.
PRECONFIGURED VIDEO CODECS, AMPLIFIERS, AND SOUND CARDS
The audio settings for many common auxiliary devices such as video codecs, VCRs,
amplifiers and sound cards, have been pre-configured for optimal performance with the
Converge system. Preconfigured devices are listed in the Device Toolbox and can be
placed on the Line In and Line Out icons.
> Note: If you would like to add a device to the Device Toolbox, please refer to the
Device Toolbox Editor on page 54.
To select a preconfigured line-level device
1. Click the Device TToolbox button to display preconfigured
devices (see figure 3.12).
2. Click the plus sign (+) to expand the category that matches your device type.
3. Click the device name and drag it to the Configuration screen. Drop over the Line
input or Line Output icon. The label and icon will change based on the selected
device.
> Note: Video codecs will cover both Line Input and Output. A sound card should be
placed on Line Input, Line Output, or on both Input and Output for web conferencing.
An amplifier is Output only.

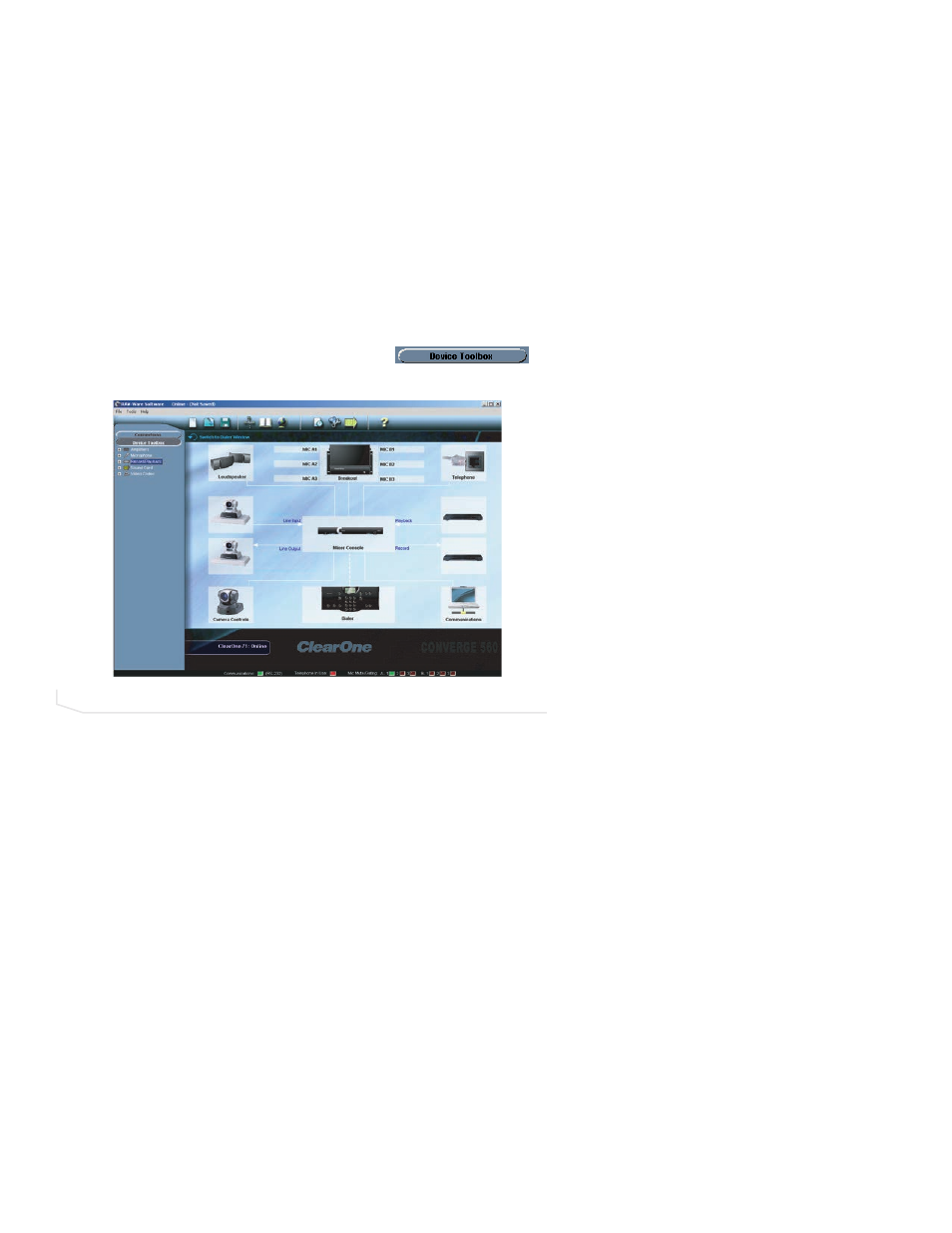

FIGURE 3.12 Line input device list (Converge 560 shown)
