REPLACEMENT PARTS and ACCESSORIES
FlexPak 3000 49’1340 e 8-10
U1 V1 W1
W2 V2 U2
A
B
E
D
C
F
H
G
B
E
D
F
G
H
= =
A
W 2 W 1 V 2 V 1 U 2 U 1
(1) (2)
∆
Protection earth connection stud
Line Reactor
Part No.
A B C D E F G H [kg]
P
v
[W]
Fig. Used for
252.40.01 190 150 190 170 75 45 67 80 4.7 50 1 Converter
252.40.02 185 150 190 170 75 60 72 85 6.5 60 1
Input
252.40.03 210 180 240 210 90 52 72 90 7.8 70 1
252.40.04 160 180 240 210 90 52 72 95 7.8 80 2
252.40.05 160 180 240 210 120 72 93 115 11 90 2
252.40.06 240 260 260 -- 240 75 97 170 18 130 2
252.40.07 240 260 260 -- 240 75 96 170 26 150 2
252.40.08 240 290 260 -- 240 100 116 190 26 170 2
252.40.09 290 320 320 -- 300 80 116 220 35 225 2
252.40.10 280 270 320 300 108 123 180 50 365 2
252.40.11 310 320 320 -- 200 93 120 220 40 370 2
252.40.12 330 350 350 -- 240 110 140 250 55 590 2
252.40.13 475 -- 390 -- 355 95 135 250 70 580 2
252.40.15 450 410 280 95 800 2
252.40.16 460 380 450 410 150 190 290 105 950 2
252.44.12 510 450 450 395 117 142 250 88 790 2
252.44.13 510 450 450 395 125 165 310 100 900 2
252.44.15 460 385 450 410 150 190 280 105 1100 2
252.42.05 110 60 44 38 50 0.48 1 Field
252.42.06 124 78 56 47 60 1.2 1
Rectifier
252.42.01 150 105 84 70 89 3.8 1
Input

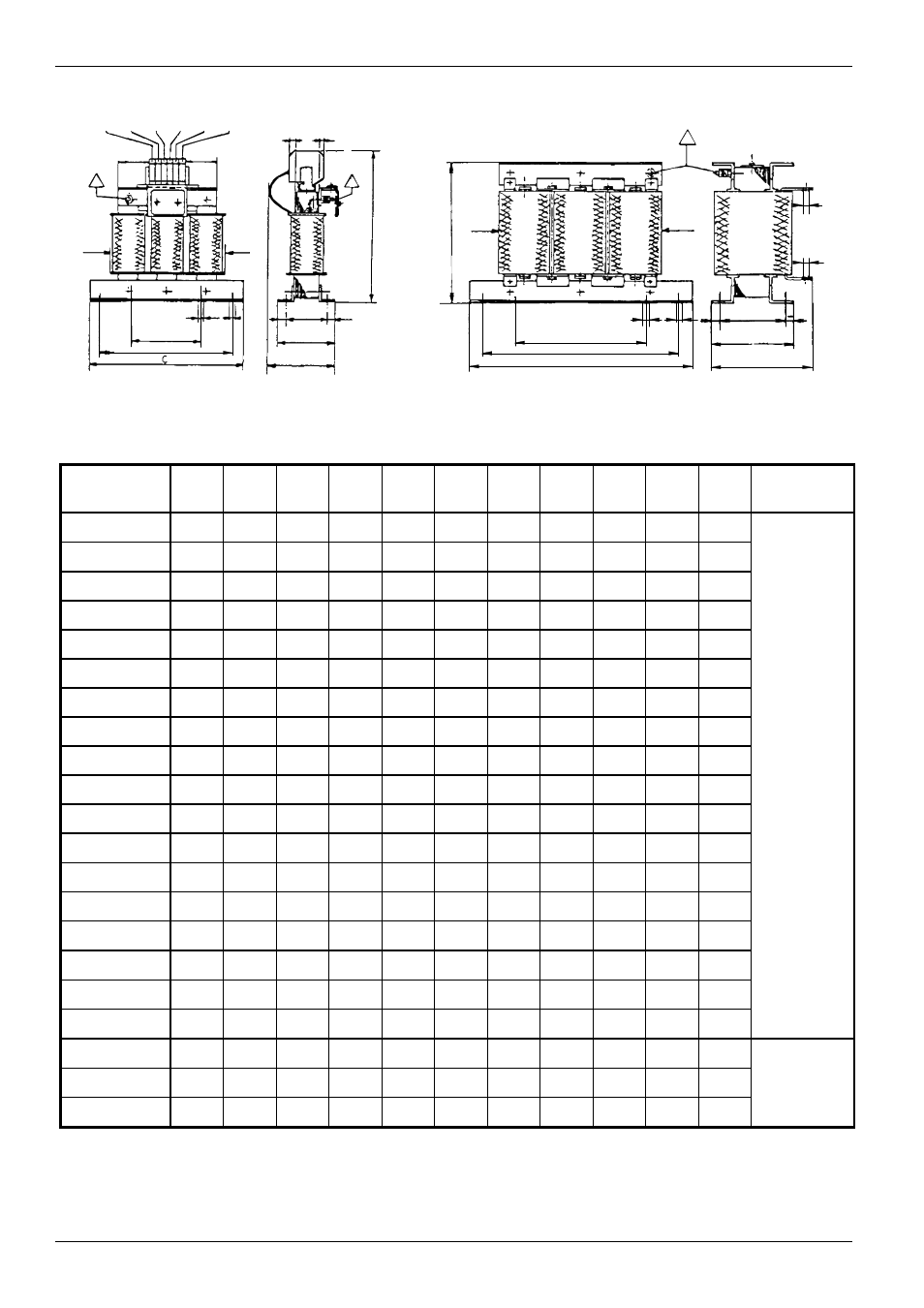

Figure 8-2: Line Reactor Dimensions (mm), Power Losses (W) and Weight (kg):
