APPENDIX B
49’1340 e FlexPak 3000 B-31

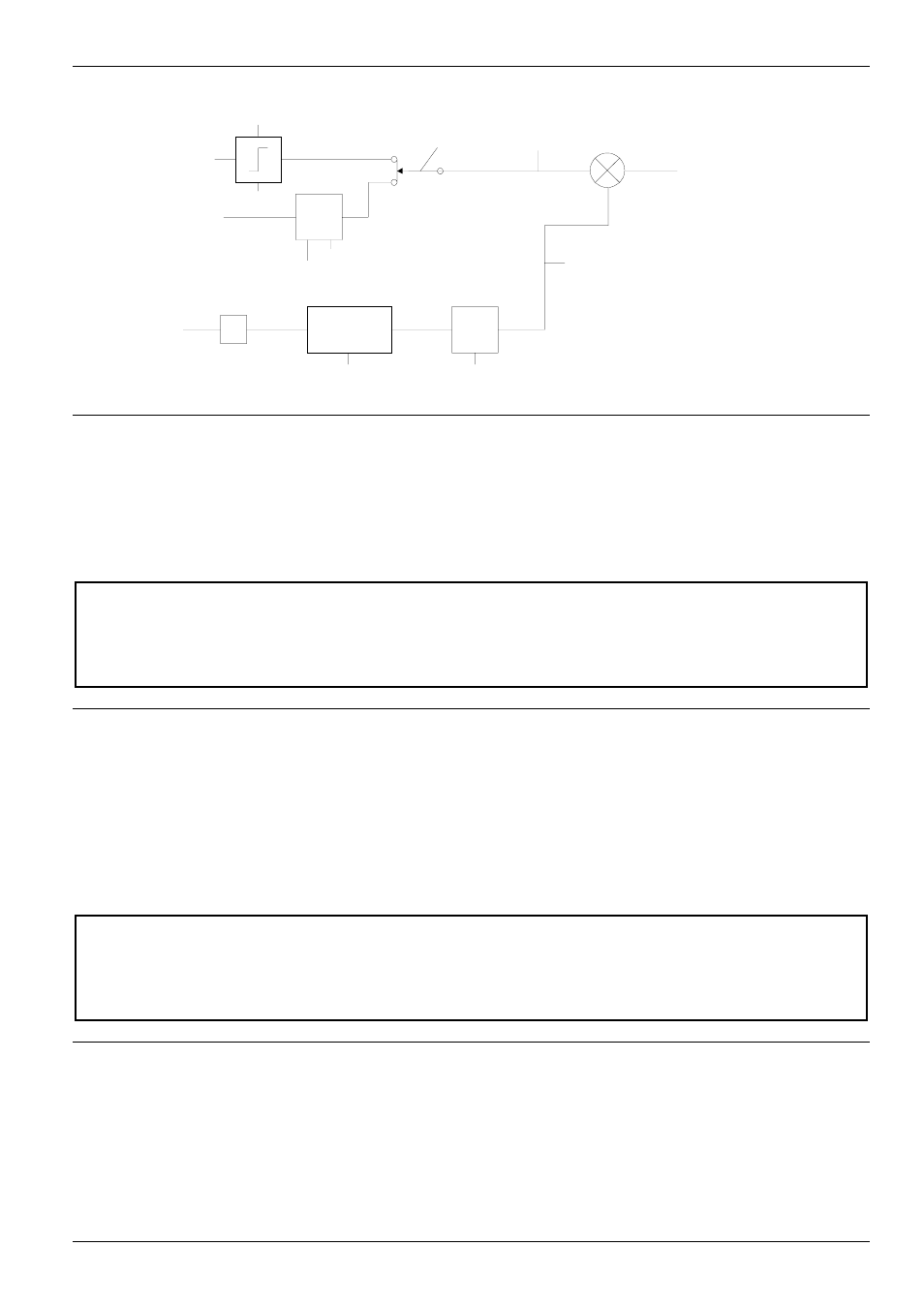

(FIELD FEEDBACK)
Scaling
Software
MOTOR HOT FLD AMPS
A/D
FIELD ECONOMY REF
100
MOTOR HOT FLD AMPS
MOTOR HOT FLD AMPS
FIELD REF REGISTER
MUL DIV
GAIN
LO
0
HI
FLD FEEDBACK
GAIN
GAIN ADJ
MUL
(FIELD ECONOMY ACTIVE)
ON
OFF
(FIELD REFERENCE)
FEEDBACK
FIELD CURRENT
To Field Current Regulator
Control Loop
P.510
P.599 P.590
P.589
P.511
P.510
P.513
P.516 P.510
+
-
MOTOR RATED ARM AMPS (P.008)
The rated armature current from the motor nameplate.
Parameter Range: 0 to 3000.0 Amps
Default Setting: Depending on unit type
Parameter Type: Configurable
OIM Menu Path(s): Current Minor Loop (CML) - CML Feedback Scaling - Quick Start
CAUTION:
The drive will not operate properly if this parameter value is entered incorrectly. This parameter must
be equal to the rated armature amps found on the motor nameplate. Overcurrent or excess heating of
the motor could result. Failure to observe this precaution could result in damage to, or destruction of,
the equipment.
MOTOR RATED ARM VOLTS (P.009)
Rated armature voltage from the motor nameplate.
Parameter Range: 160 to 675 VDC on types with nominal voltage up to 500 VAC
240 to 1000 VDC on types with nominal voltage 690 VAC (see 4.5.11)
Default Setting: 240 VDC
Parameter Type: Configurable
OIM Menu Path(s): Speed/Voltage Loop (SPD) - Speed/Volt Loop (SPD) Feedback -Quick Start
Refer also to Parameter: NOMINAL AC LINE VOLTS (P.307)
WARNING
The incorrect setting of this parameter can cause an overspeed condition. This parameter must be set
by a qualified person who understands the significance of setting it. Set the value of this parameter
accurately per your application requirements. Failure to observe this precaution could result in bodily
injury.
