Rockwell Automation GV3000/SE AC Drive AutoMax Network Communication Board, M/N 2AX3000 User Manual
Page 45
2-36
AutoMax Network Communication Option Board for the GV3000/SE AC Drive
Step 3.
Install the AutoMax Network Option Board in the Drive
Step 3.1 Remove the AutoMax Network option board from its anti-static wrapper.
Step 3.2 Align the key on the connector of the AutoMax Network option board ribbon
cable with the key on the Regulator board connector. Press the ribbon
cable connector in until it locks into position.
Step 3.3 Fasten the AutoMax Network option board to the drive using the screws
provided.
Step 3.4 Connect the brown wire of the Network Drop Cable to terminal 1 of the
2-connector terminal strip. Connect the white wire to terminal 2.

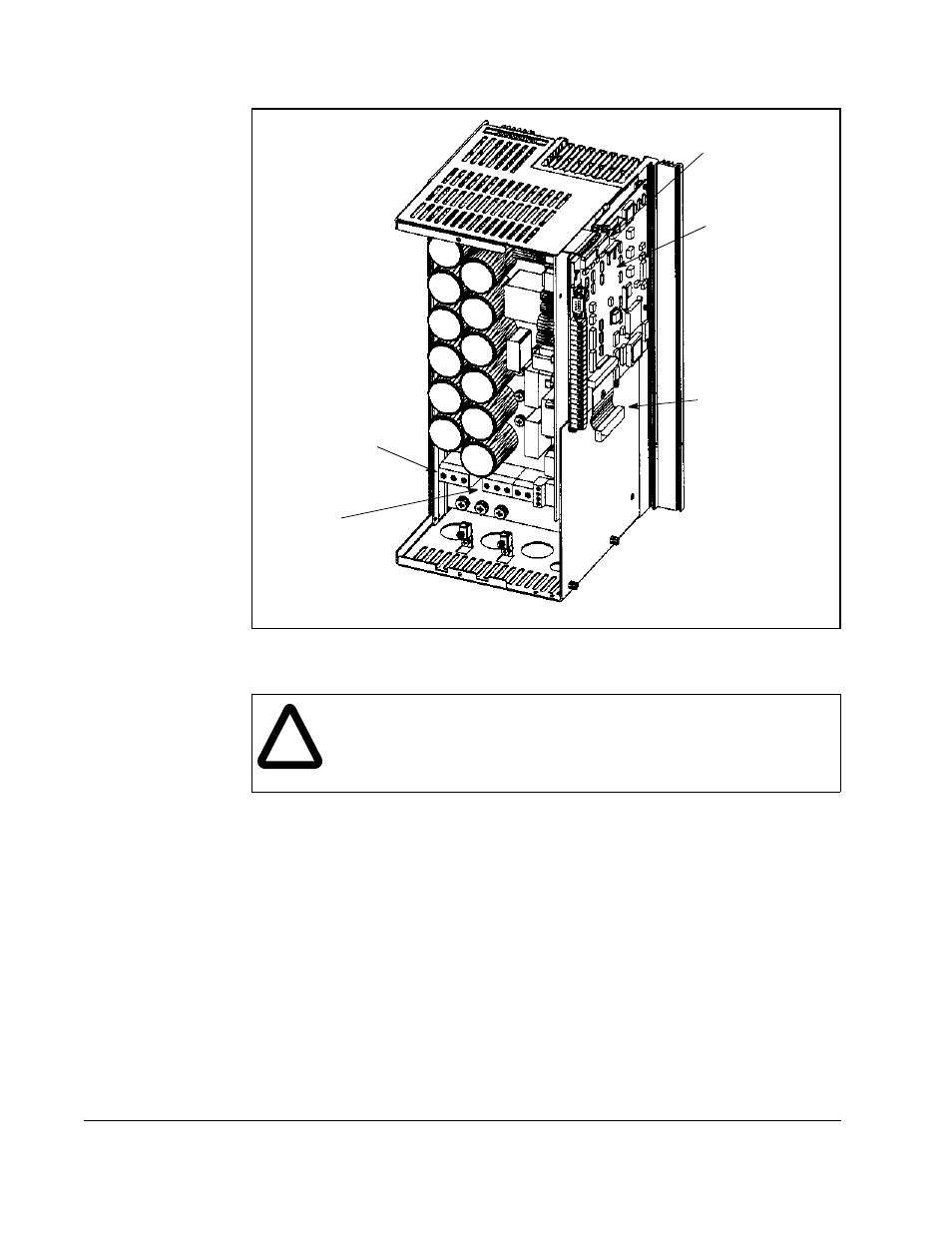

Figure 2.19 – 24 to 30 Amp GV3000/SE Bookshelf Drive (Cover and Front Panel Removed)
!
ATTENTION: The drive contains printed circuit boards that are
static-sensitive. An anti-static wrist band should be worn by any person
who touches the drive’s components, connectors, or wiring. Erratic
machine operation and damage to, or destruction of, equipment can
result if this procedure is not followed.
AC Input Power
Terminals
(L1, L2, L3)
DC Bus
Measuring Point
(–)45, (+)47
Keypad/Display
Cable Connector
Regulator
Board
Regulator Board
Ribbon Cable
