2-14 AutoMax Network Communication Option Board for the GV3000/SE AC Drive
Step 4. Install the AutoMax Network Option Board in the Keypad Bracket
Refer to figure 2.7 for component locations.
Step 4.1 Remove the AutoMax Network option board from its anti-static wrapper.
Step 4.2 Align the key on the connector of the AutoMax Network option board ribbon
cable with the key on the Regulator board connector. Press the ribbon
cable connector in until it locks into position.
Step 4.3 Route the other ribbon cable out of the side of the keypad bracket.
Step 4.4 Align the AutoMax Network option board on the four mounting tabs on the
keypad bracket. Make sure that the ribbon cable is not pinched between the
keypad bracket and the AutoMax Network option board.
Step 4.5 Fasten the right side of the AutoMax Network option board to the keypad
bracket. Use the two metal M3 screws and lock washers for grounding.
Important: You must use the lock washers to properly ground the option board.
Improper grounding of the option board can result in erratic operation of
the drive.
Step 4.6 Fasten the left side of the AutoMax Network option board to the keypad
bracket using the two plastic rivets.

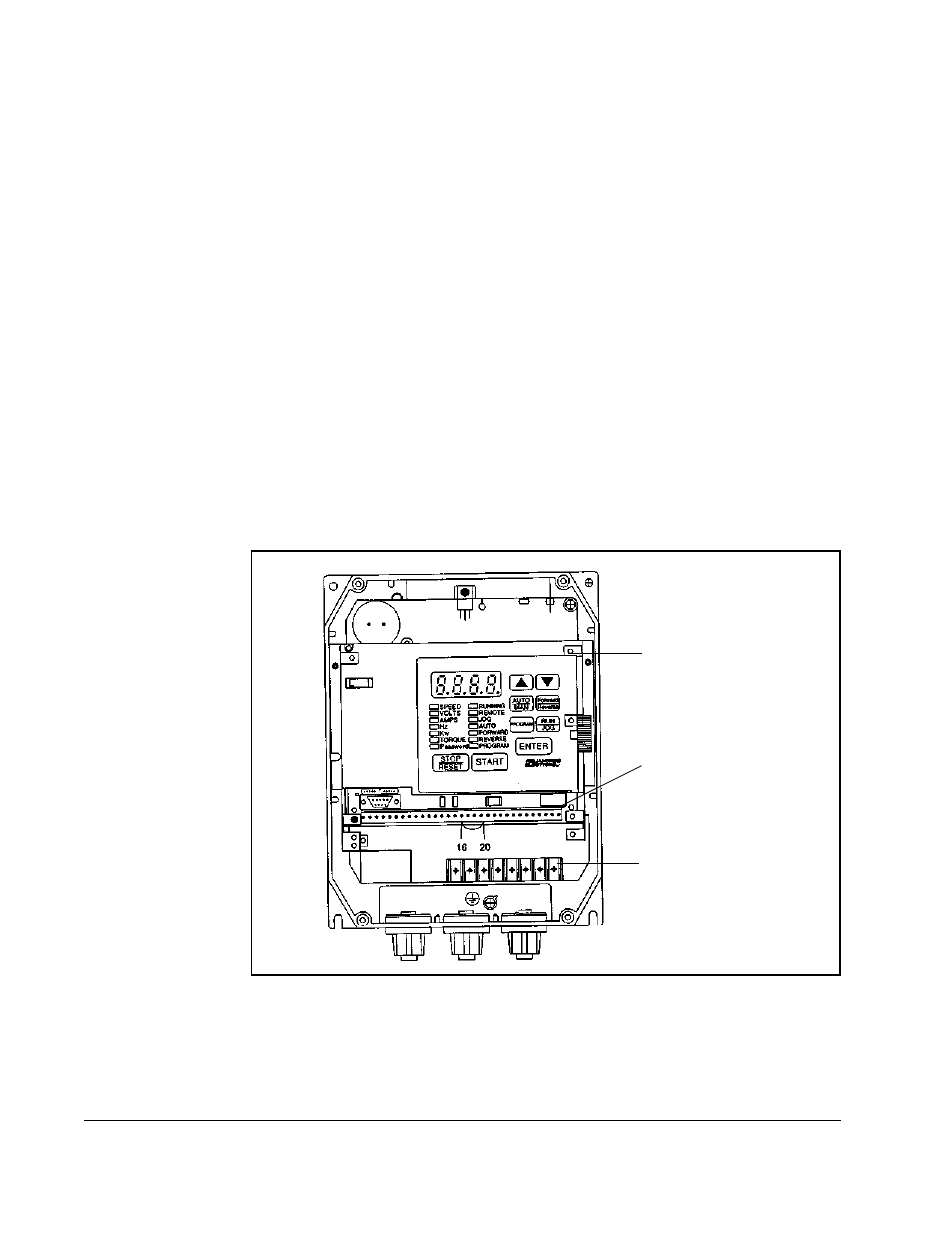

Figure 2.7 – 1 to 20 HP @ 230 V GV3000/SE Drive
Keypad Bracket
Regulator Board
Terminal Strip
Power Terminal
Strip
