EQP LOGIC EDITOR 13-11 EQP LOGIC EDITOR
Version 6.0

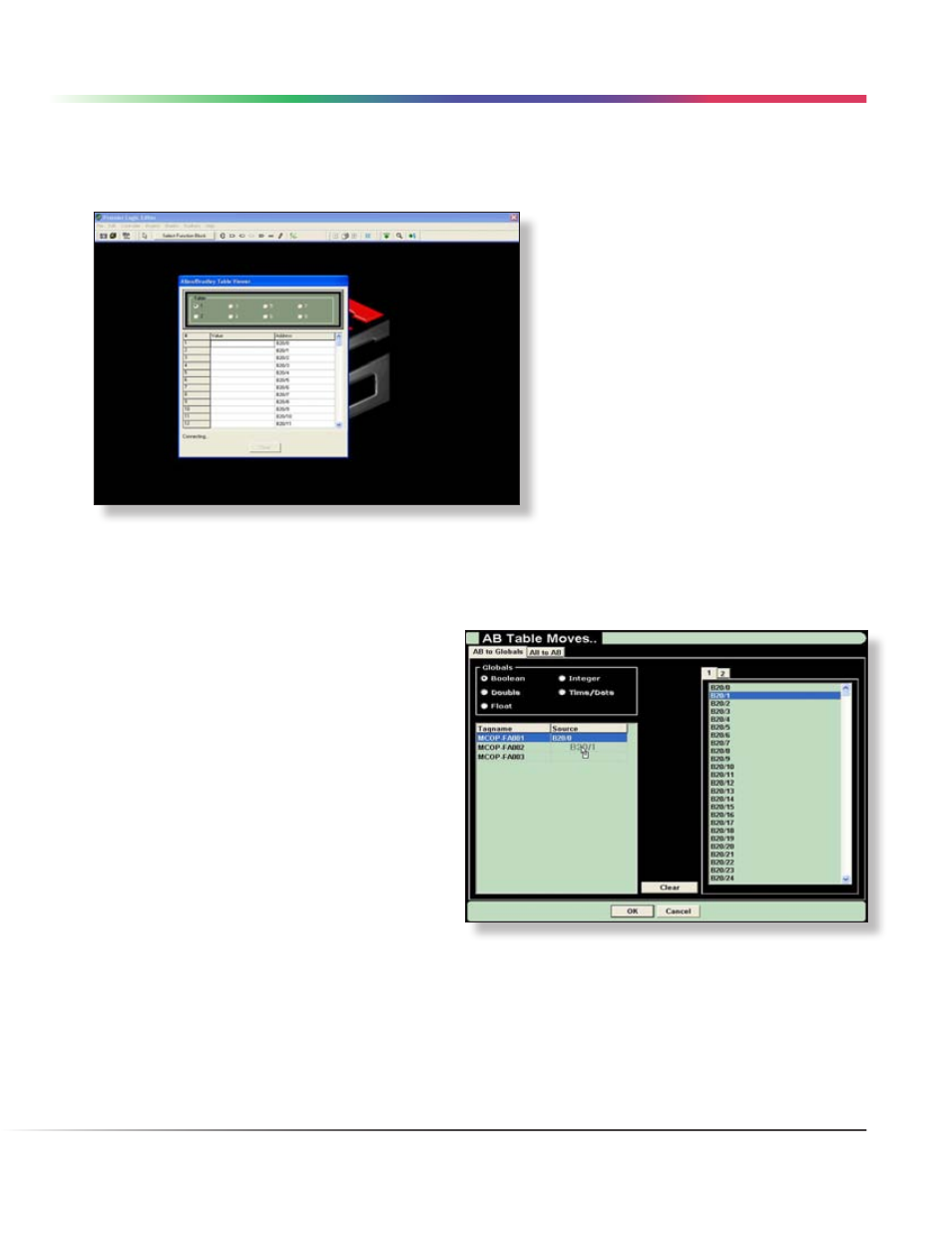

AB Monitor
This dialog box is a tool for checking the value of data in any of the eight configurable data tables used for
exchanging data between the Premier controller and Allen Bradley systems.
The desired table is selected with a radio
button in the top portion of the dialog box and a
scrolling list displays the data. In the example
above the viewer has just been activated and is
attempting to establish communication with the
Premier controller.
AB Moves
This dialog box allows for the configuration of data moving between an Allen Bradley system and the Eagle
Quantum Premier controllers memory. The dialog box uses a tabbed interface with two tabs on the left side
representing the two directions data can flow.
Data to be moved from the AB system into the
Premier controllers memory is configured under
the “AB to Globals” tab.
Data that will move from the Premier controller to
the AB system is configured under the “All to AB”
tab.
On the right side of the dialog box is a tabbed
scrolling list representing configured data tables.
In the example above, there are two tabs, one for
each configured AB table (see previous page).
There can be up to eight tabs representing the
maximum number of configured data tables.
To configure data for movement, select and drag
an address from the right hand side and drop it
into the “Source” cell next to the desired “Tagname”
in the left hand side.
LOGIC EDITOR • CONTROLLER MENU
