EAGLE QUANTUM PREMIER CONFIG. 11-17 EAGLE QUANTUM PREMIER CONFIG.
Version 6.0

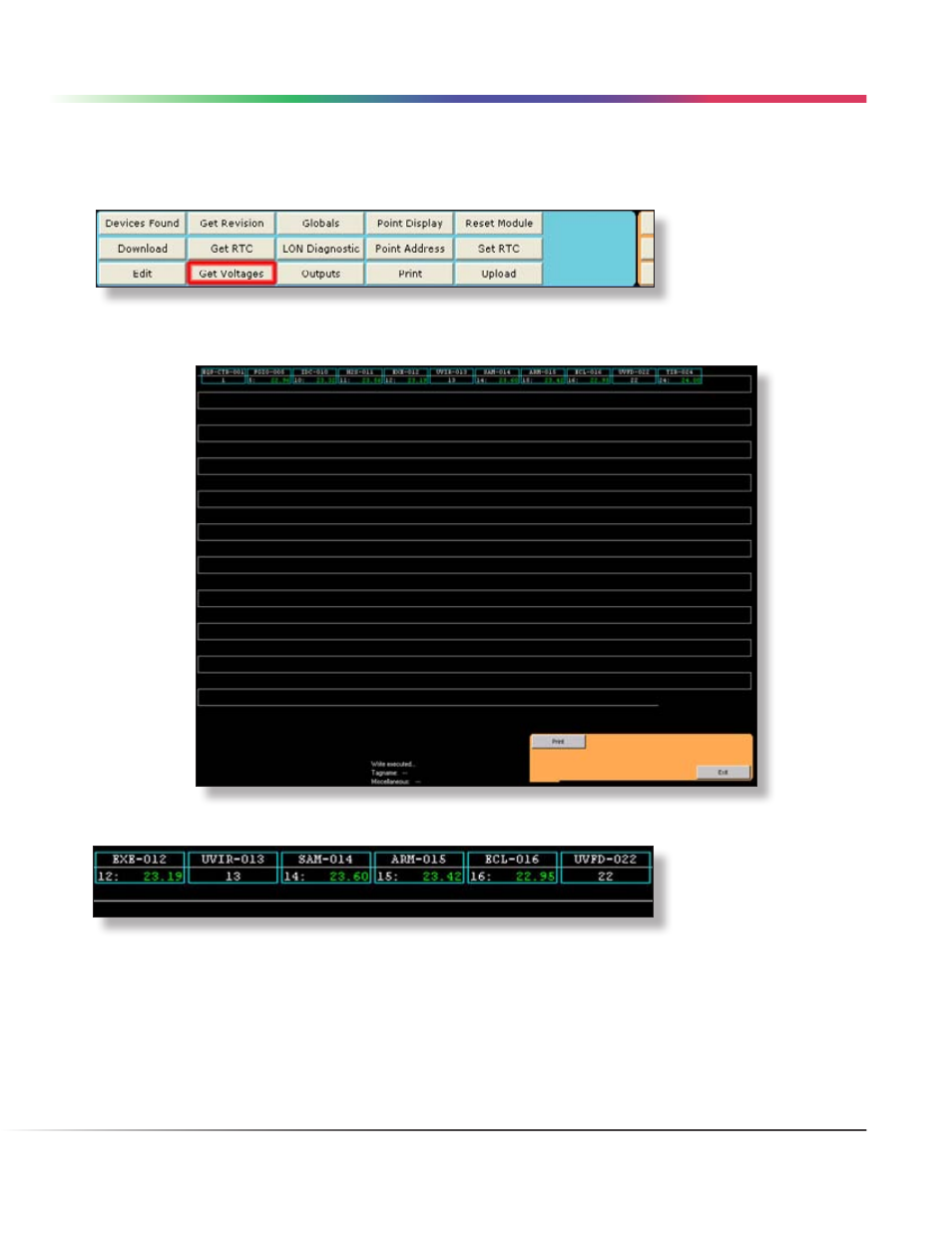

Get Voltages
Displays 24 Vdc supply voltage information for uses such as troubleshooting power distribution problems.
Selecting the “Get Voltages” button will display a graphic LON Schematic upon which S 3 will overlay dynamic 24
Vdc power supply data from each compatible field device.
Certain previous generation Eagle Quantum field devices may not be compatible with this command.
In the example above nodes 12, 14, 15 and 16 are compatible and display the node address in the lower left with
the supply voltage in the lower right. Nodes 13 and 22 are older styles, therefore a UVIR and UV optical flame
detector cannot support this feature and only display their node number.
COMMAND BAR • GET VOLTAGES COMMAND BAR • EDIT
