EAGLE QUANTUM PREMIER CONFIG. 11-13 EAGLE QUANTUM PREMIER CONFIG.
Version 6.0

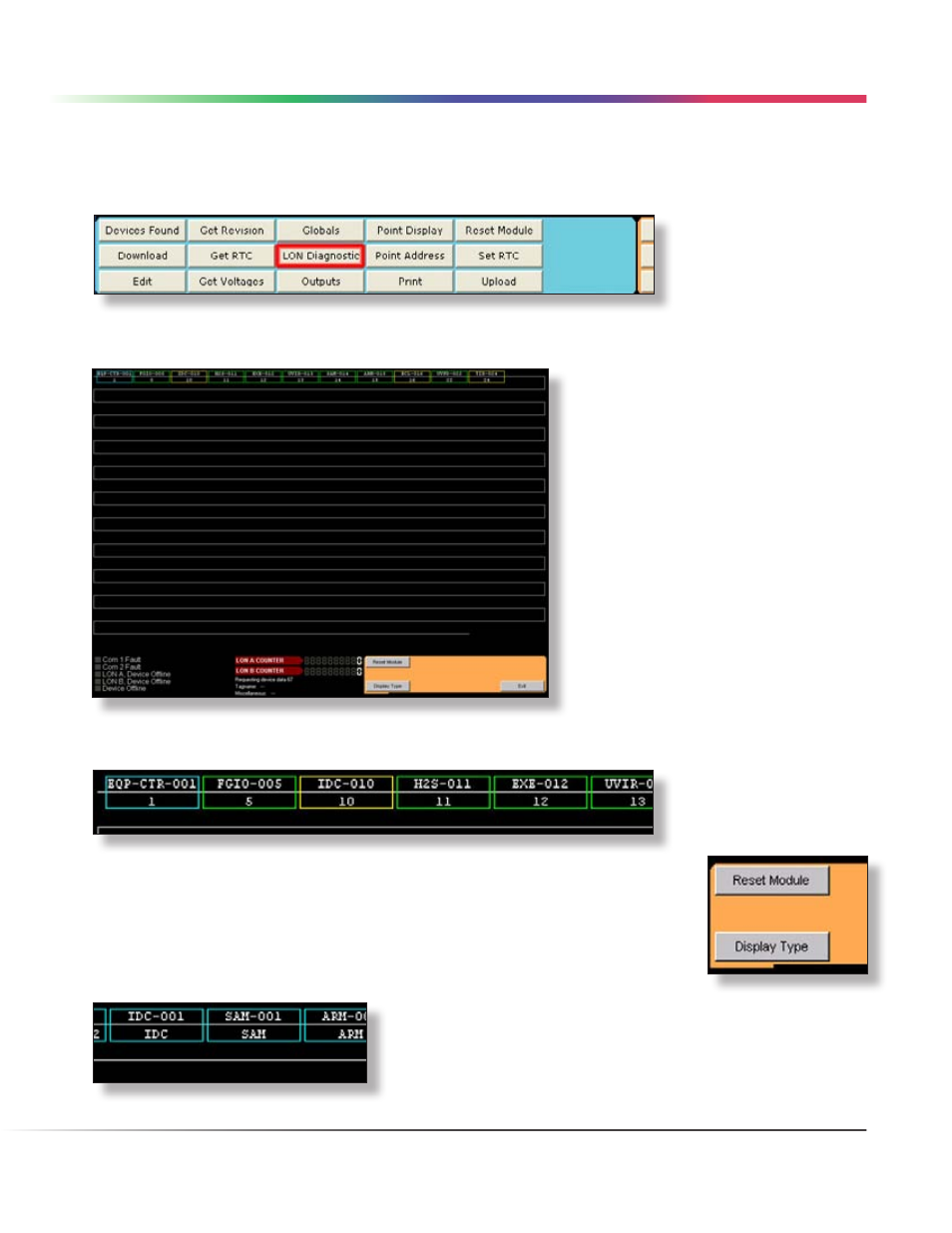

LON Diagnostic
Displays a graphic “LON Schematic” displaying dynamic information about the LON and the devices residing on
it.
The schematic begins with Node 1, the controller, in the upper left corner and a line representing the communication
network (LON) running back and forth across and down the screen.
The LON is typically wired as a loop starting
and ending at the controller although the
schematic does not show this for aesthetic
reasons. The end of the LON at the lower
right is assumed to connect back to the
controller at the top left of the screen.
Each configured device is represented by a rectangle bisected longitudinally with the tag name displayed in the
upper section and the node number (LON address) displayed in the lower section.
Using the “Display Type” button the node number in the lower section can be replaced
with the device type.
NOTE
Use of this display requires proper setup of the “LON ORDER” screen prior to the use of
this display.
This button is a “toggle” and will change name following activation to
indicate what its function will be on its next activation.
COMMAND BAR • LON DIAGNOSTIC COMMAND BAR • RESET MODULE
