EQP LOGIC EDITOR 13-57 EQP LOGIC EDITOR
Version 6.0
Creating a SIL 2 project
As specified by IEC 61508 there are 4 levels of safety performance necessary for a safe functioning system.
Det-Tronics supports a SIL 2 program when using S 3 6.x.x.x+ to build a project and downloading to controller
version 6.xx+. Creating a SIL 2 project is similar to any other project in S 3 , with a few extra steps. Follow these
steps to create a SIL 2 project.

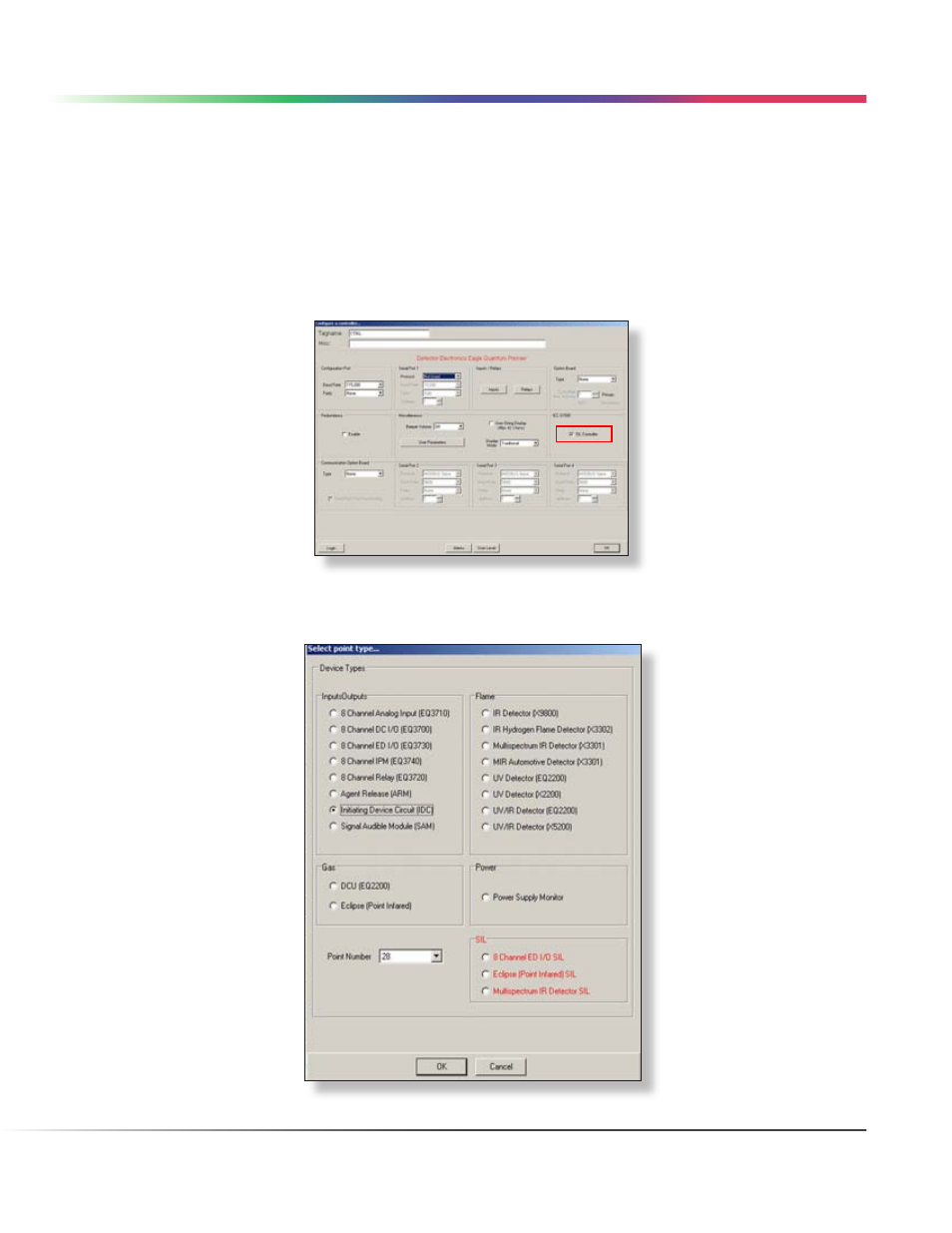

From the “Configure a controller…” screen, check “SIL Controller” as seen below . 1.
From the “Select point type…” screen, select the desired devices for a project. Note that the SIL devices are 2.
in red.
SIL 2 LOGIC CREATION LOGIC CREATION • DATA TYPES
