EQP LOGIC EDITOR 13-19 EQP LOGIC EDITOR
Version 6.0
MODBUS Table Settings

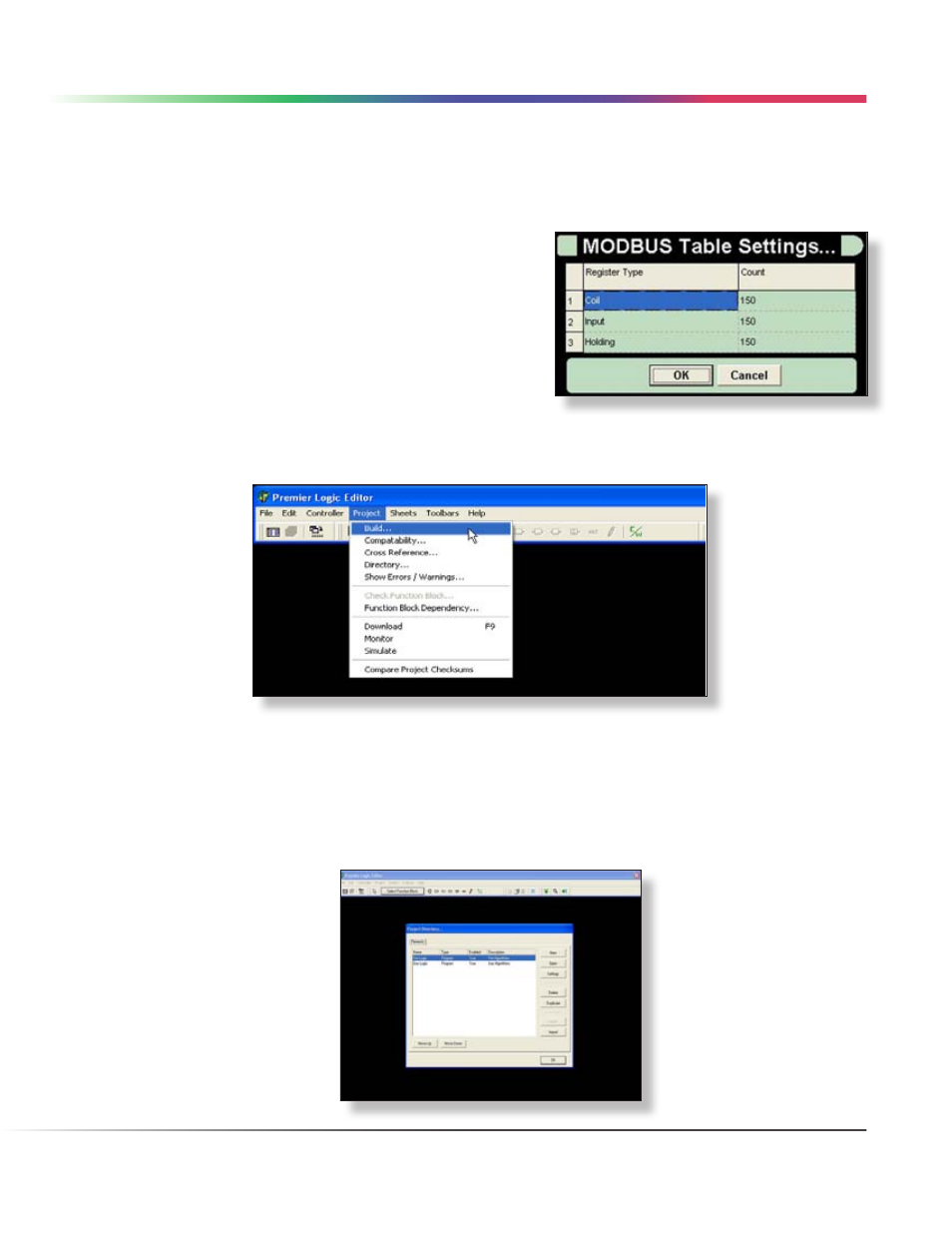

This menu selection opens a dialog box which shows the three communication interface “tables” to be configured
to allow for data to be “moved” between the Eagle Quantum Premier controller and a Modbus based system
utilizing the industry standard Modbus RTU communication protocol.
There are three register types, Coil, Input and Holding each of which
are for the exchange of a different type of data. The default “Count”
for each register type is 0.
Adjust the “Count” to match the number of registers required for
each type. Once the tables are configured, click the “OK” button
to allocate memory to support the new table configurations.
Project Menu
This menu allows access to the project directory as well as several functions related to logic creation, debugging,
simulation and downloading to the controller.
S 3 uses the international standard “IEC-1131” for the structure and style of the logic programming environment.
Selecting “Directory” will open the “Project Directory...” dialog box which lists the existing project “Elements” and
provides tools for the creation, editing, deletion, duplication and arrangement of these elements.
In the S 3 programming environment an “Element” can be either a user program or a function block. In the
example above, there are two existing elements, both of which are programs.
LOGIC EDITOR • PROJECT MENU
