12-86 EAGLE QUANTUM PREMIER DEVICES
Version 6.0
EAGLE QUANTUM PREMIER DEVICES
Controller Only
In this mode the I/O of the IPM will be controlled from the EQP Controller only and embedded logic is inactive.
Back-up Mode
The default selection) the IPM I/O is normally controlled by the EQP Controller but utilizes embedded logic in
accordance with the “Control Transfer Sequence Description” to control its I/O under certain circumstances.
Embedded Only
In this mode the IPM continuously operates from its embedded logic. The status of all IPM I/O is available to the
EQP Controller but control of the outputs are not; however, controller and S 3 reset commands are accepted.

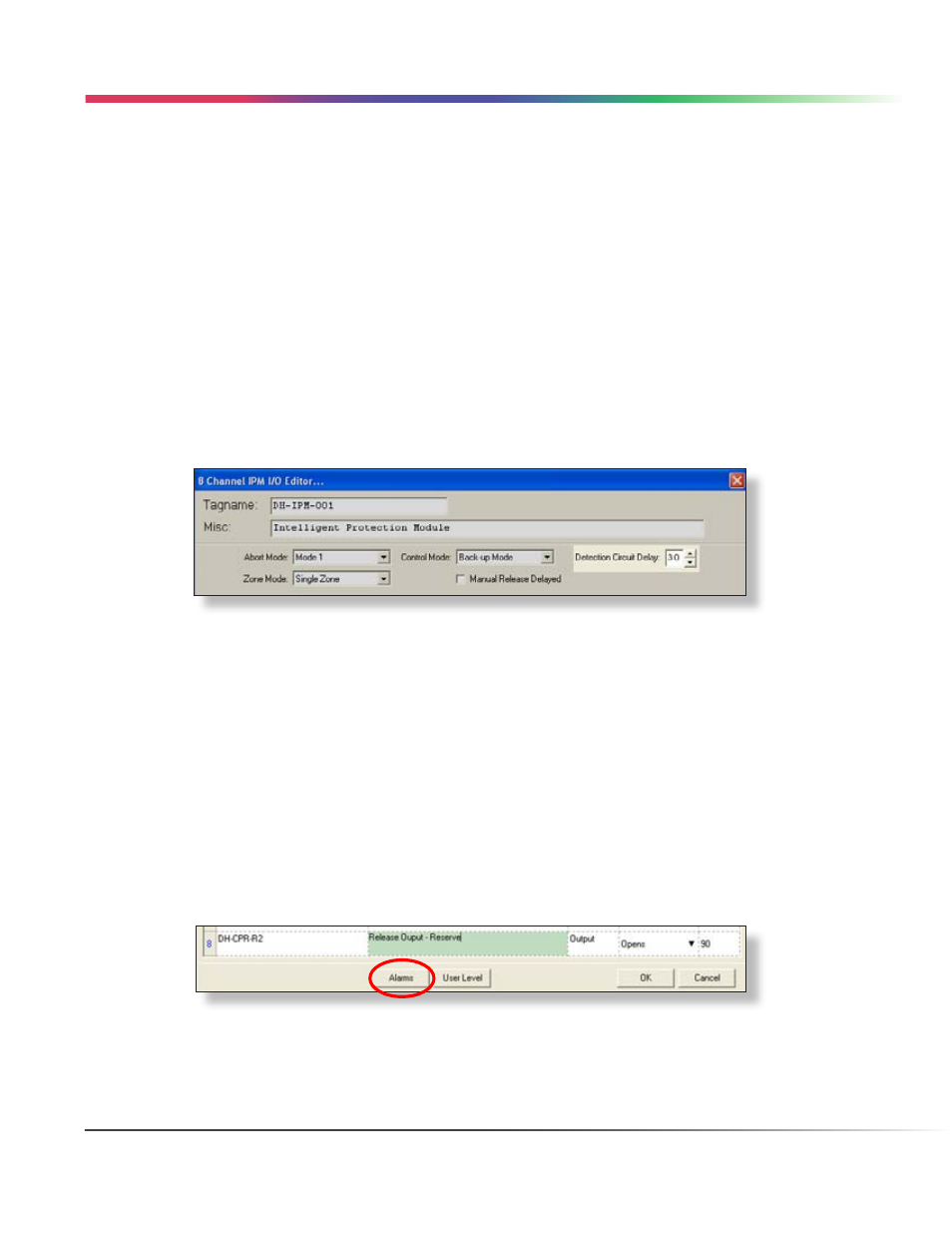

Detection Circuit Delay Selection
This selection provides a time delay that will apply to the two detector circuits, (Channels 4 and 5) as well as to
the manual release signal (Channel 2).
There are seven time delay selections running between 0 and 60 seconds in ten second increments as shown
below:
0 Second
10 Seconds
20 Seconds
30 Seconds
40 Seconds
50 Seconds
60 Seconds
If the time delay selected is greater than 30 seconds, this time will apply only to the two detection circuits. The
manual release time delay will be clamped at 30 seconds.
Alarms
Selecting this button opens the “Alarms to Monitor...” dialog box. This scrolling list displays the alarms and
events related to the device that can be configured to be monitored by S 3 .
IPM • DETECTION CIRCUIT DELAY SELECTION
