12-78 EAGLE QUANTUM PREMIER DEVICES
Version 6.0
EAGLE QUANTUM PREMIER DEVICES

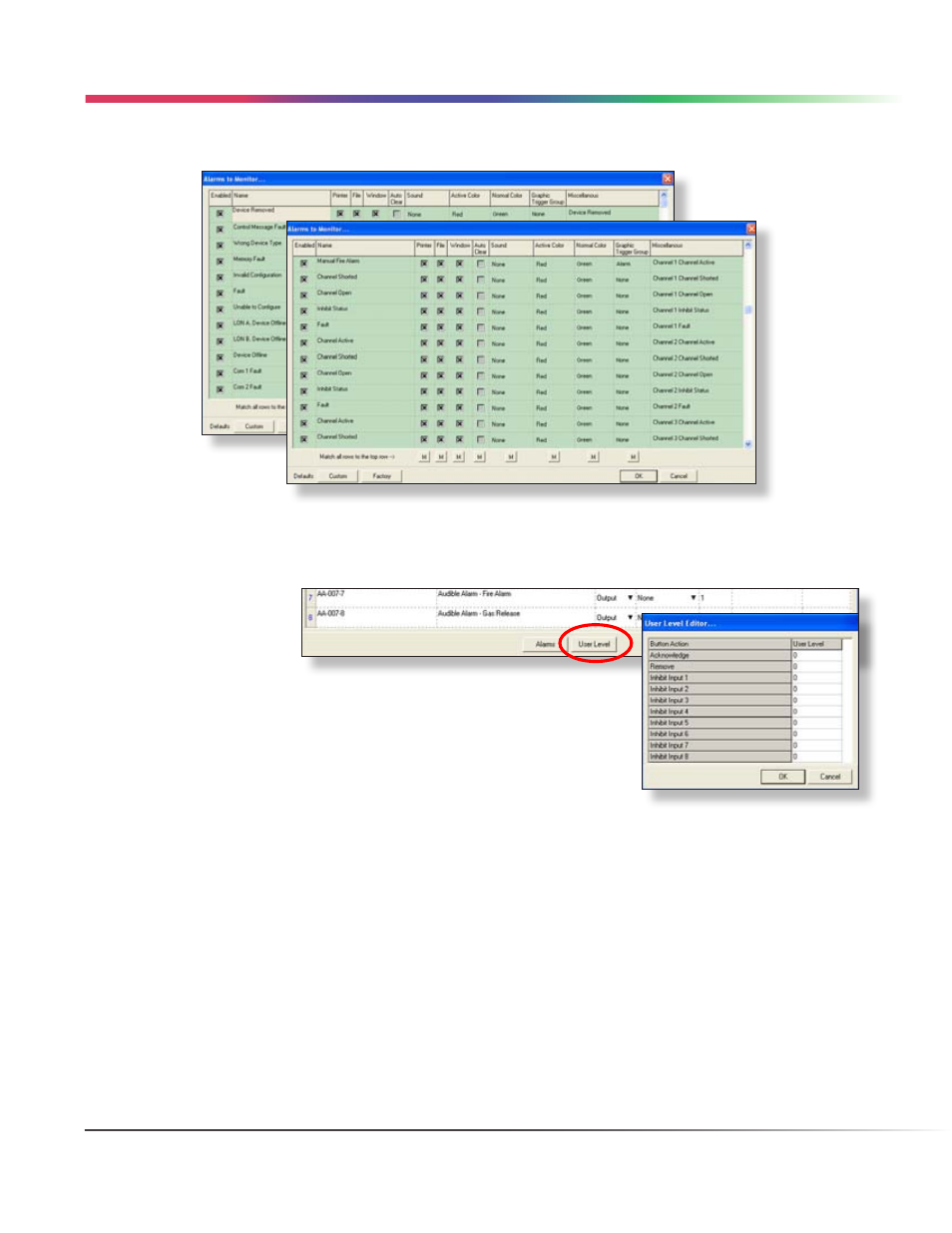

The first 13 alarms pertain to the status and diagnostic for the overall module.
After this come 5 alarms for each of the eight channels. This gives a total of 53 alarms and events that can be
enabled and monitored by S 3 for this module type.
User Levels
The “User Level Editor...”
provides a means for limiting
access to the “Acknowledge”,
“Remove”, and “Inhibit” buttons
for the module which are accessible from the devices point display.
The default value is “0” and provides access to all users. Change these values
to match a user account configuration and security needs.
Completing Configuration
When all parameters have been set, select the OK button to return to the LON
configuration screen.
From the Command Bar Download the new configuration to the controller, or configure other devices.
DCIO/EDIO • USER LEVELS
