EAGLE QUANTUM PREMIER DEVICES 12-39 EAGLE QUANTUM PREMIER DEVICES
Version 6.0

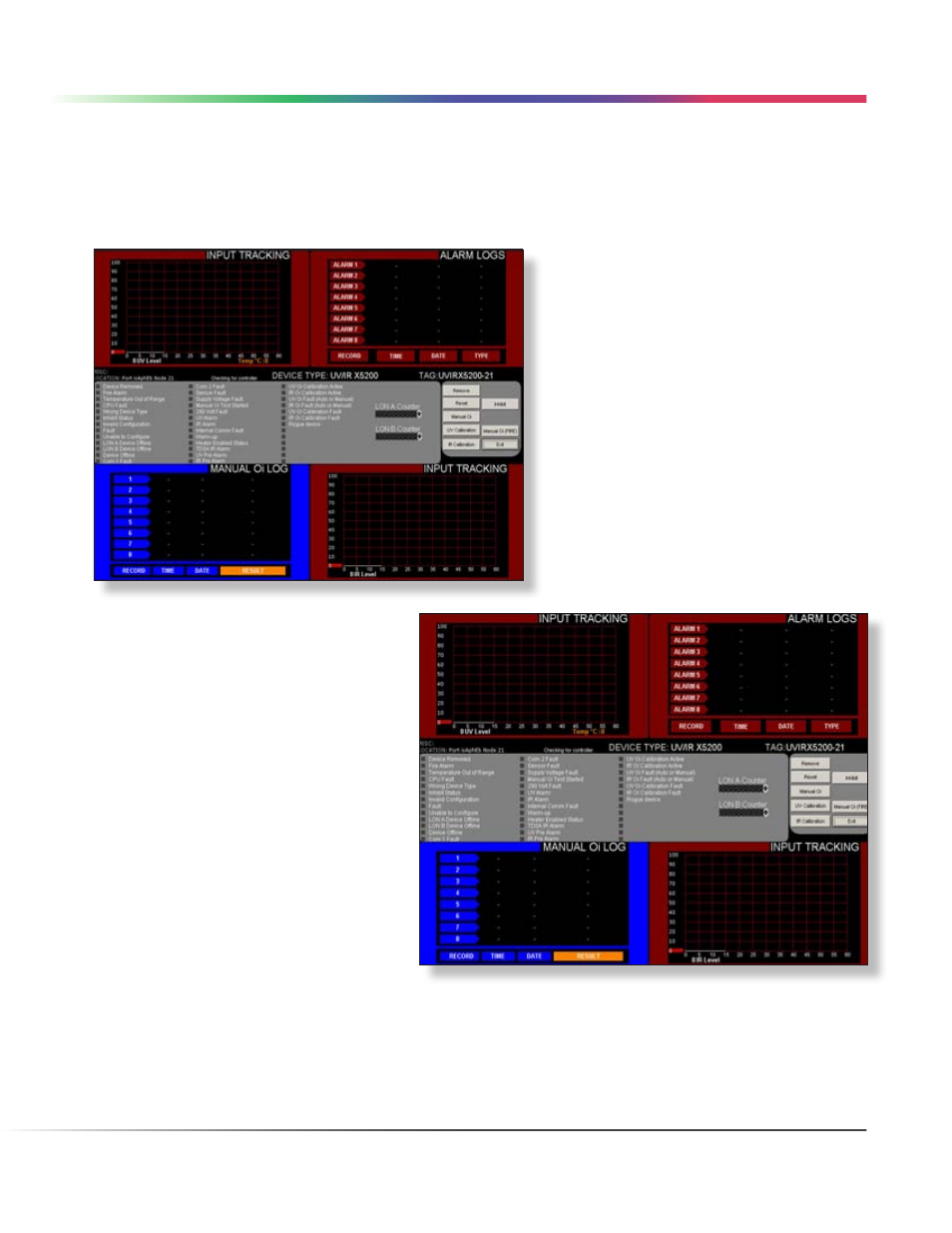

Point Display
The UVIR X5200 detector has a custom “Point Display” that can be accessed from either the Point Display button
on the Command Bar or from the Online Mode. The point display provides a single window view of all available
real-time data for the device.
Alarm Logs
The top right quadrant of the display shows the
last eight alarms with their date and time data.
Analog Input Tracks
The top left and bottom right quadrants show
a dynamic 60 second history of the detectors
measured variables, UV and IR levels. The
input track scrolls from left to right with the most
current data at the “pen” on the left margin.
The display updates once every five seconds.
Oi Log
The bottom left quadrant of the point display
shows the detectors manual Optical Integrity
(Oi) log. The last eight manual tests are shown
with the date, time and a PASS/FAIL indicator.
Status & Diagnostics
The middle portion of the point display shows
the discrete status and health indicators for
the detector.
Buttons
There are eight buttons that can send
commands to the detector including; remove,
inhibit, reset, Manual Oi, Manual Oi (FIRE), IR
Calibration and UV Calibration.
X5200 • POINT DISPLAY
