EAGLE QUANTUM PREMIER DEVICES 12-17 EAGLE QUANTUM PREMIER DEVICES
Version 6.0

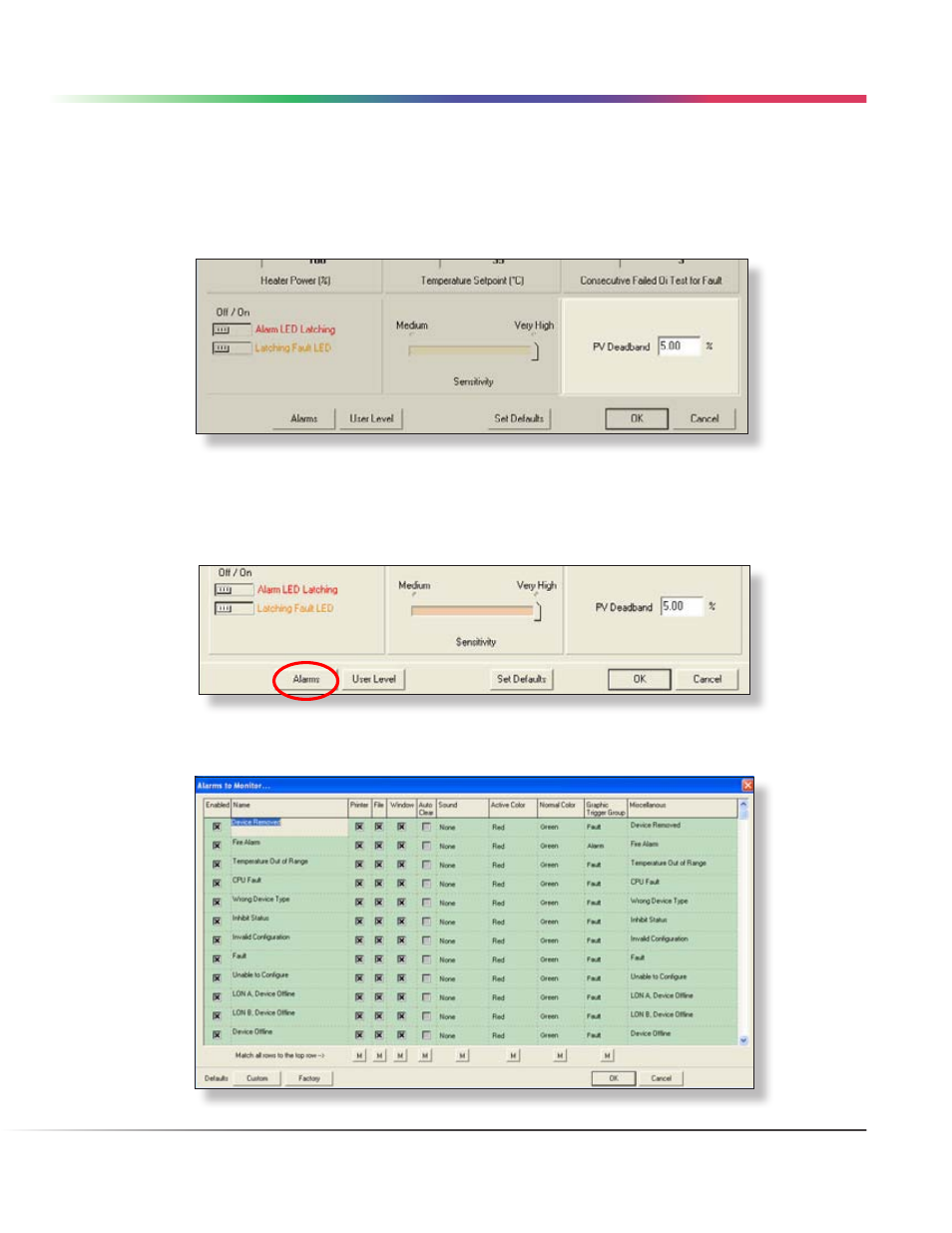

PV Deadband
A field is provided to enter the desired PV (Process Variable) Deadband.
Normally all values are transmitted to the controller every five seconds; If the PV changes more than the entered
percentage before the five second report time arrives, an immediate message is sent with the current values.
Alarms
Selecting this button opens the “Alarms to Monitor...” dialog box. This scrolling list displays the alarms and
events related to the device that can be configured to be monitored by S 3 .
There are 31 alarms and events that pertain to the status and diagnostics for the MIR X3301.
MIR X3301 • ALARMS
