Delete immediately and permanently erases a slots configuration. This function is not “reversible” so use with
caution.
Search allows for locating matching text strings to quickly find a desired slot for viewing or editing, since
thousands of outputs can be configured.
Check is primarily used following editing of the LON configuration to verify that all configured outputs are still
linked to valid items in the database.
Print
Allows for the select printing of configuration information for the controller, field devices and database for
documentation purposes.
NOTE
This command will send the selected configuration data to the default Windows printer, not the alarm & event
printer.

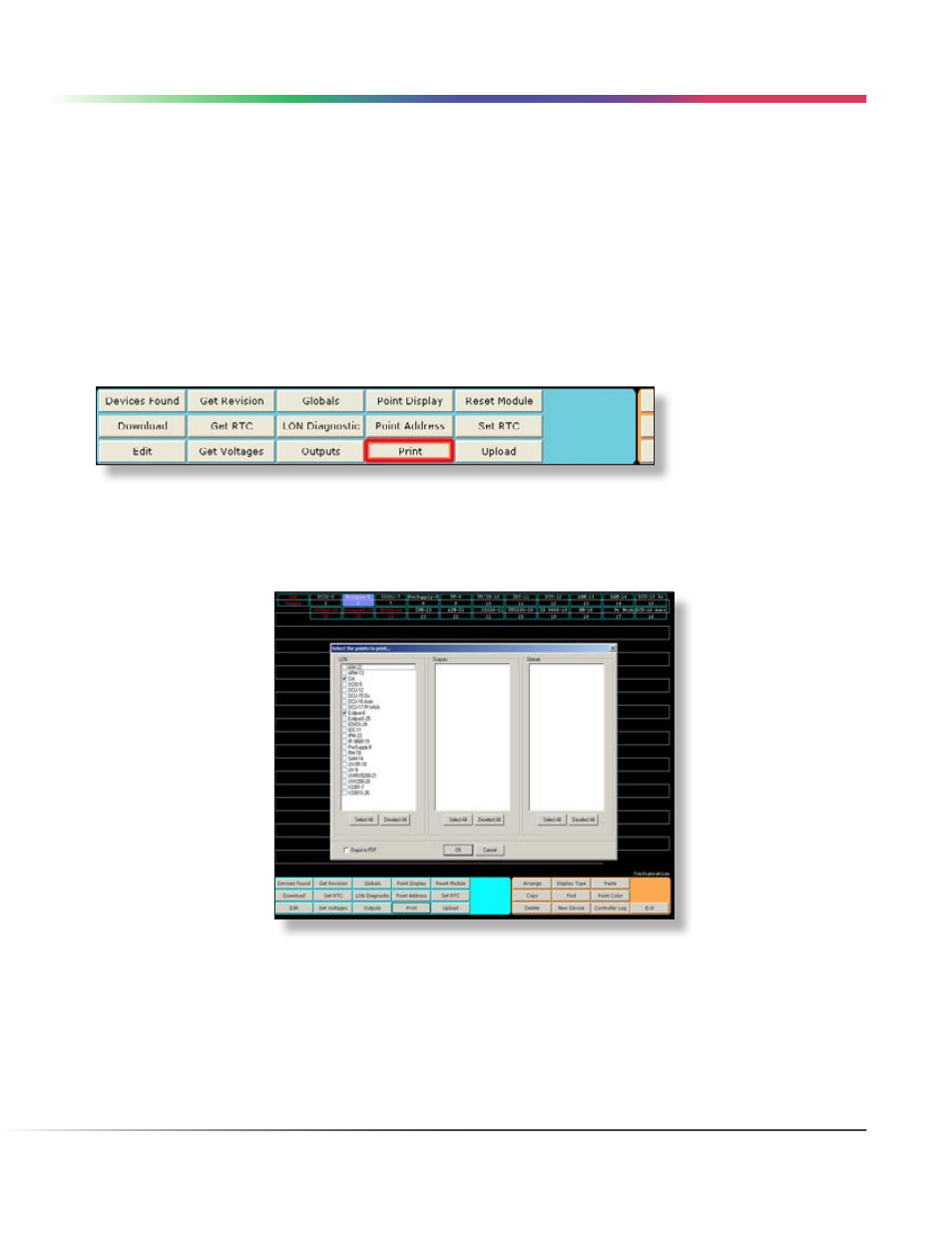

Once the “Print” button on the command bar is selected the print selection dialog box will open.
The dialog box is divided into three main selection areas, LON, Outputs, and Globals. All configured items for
each category are displayed along with a checkbox to select the items data for printing.
At the bottom of each column are “Select All” and “Deselect All” buttons to aid in the rapid selection of data to
print.
Optionally, the data can be output to “PDF” format by using the checkbox in the lower left of the dialog box.
