AEM 30-71XX Infinity Stand-Alone Programmable Engine Mangement System Full Manual User Manual
Page 58

52
© 2014 AEM Performance Electronics
Infinity User Manual

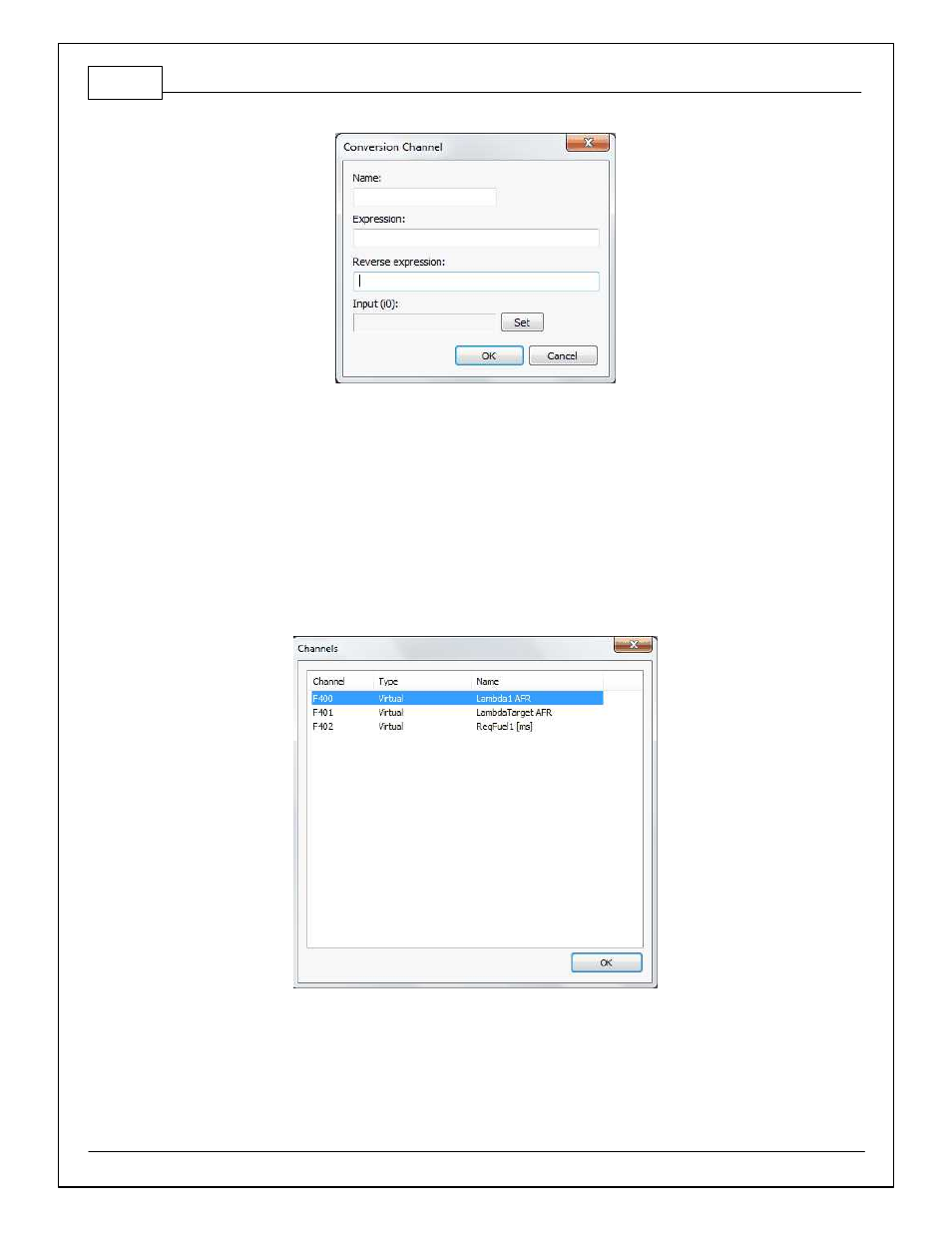

Name: Enter desired name of virtual channel being defined.
Expression: Enter desired expression. For details and examples of the syntax see below
Reverse expression: Enter expression to convert channel back to its original value.
Set: Select the channel you wish to create a conversion for.
Here you may review all of the virtual and conversion channels you have defined in the current
session you have running. The Channel number, Type, and Name are listed in the three columns.
Right clicking on any of the channels listed provides you with the option of removing the channel
or editing the channel. By selecting edit, you can redefine anything about the given channel. If you
made a mistake or something changes you can easily go back and make your desired changes.
The syntax for the math expressions you can define in Infinity Tuner is fairly straightforward. The
slight detail that may seem strange at first is listing the selected inputs in the expression as i0, i1,
i2, and so on according to the order the appear on the list of Inputs.
