Step switch setup – AEM 30-71XX Infinity Stand-Alone Programmable Engine Mangement System Full Manual User Manual
Page 180
174
© 2014 AEM Performance Electronics
Infinity User Manual

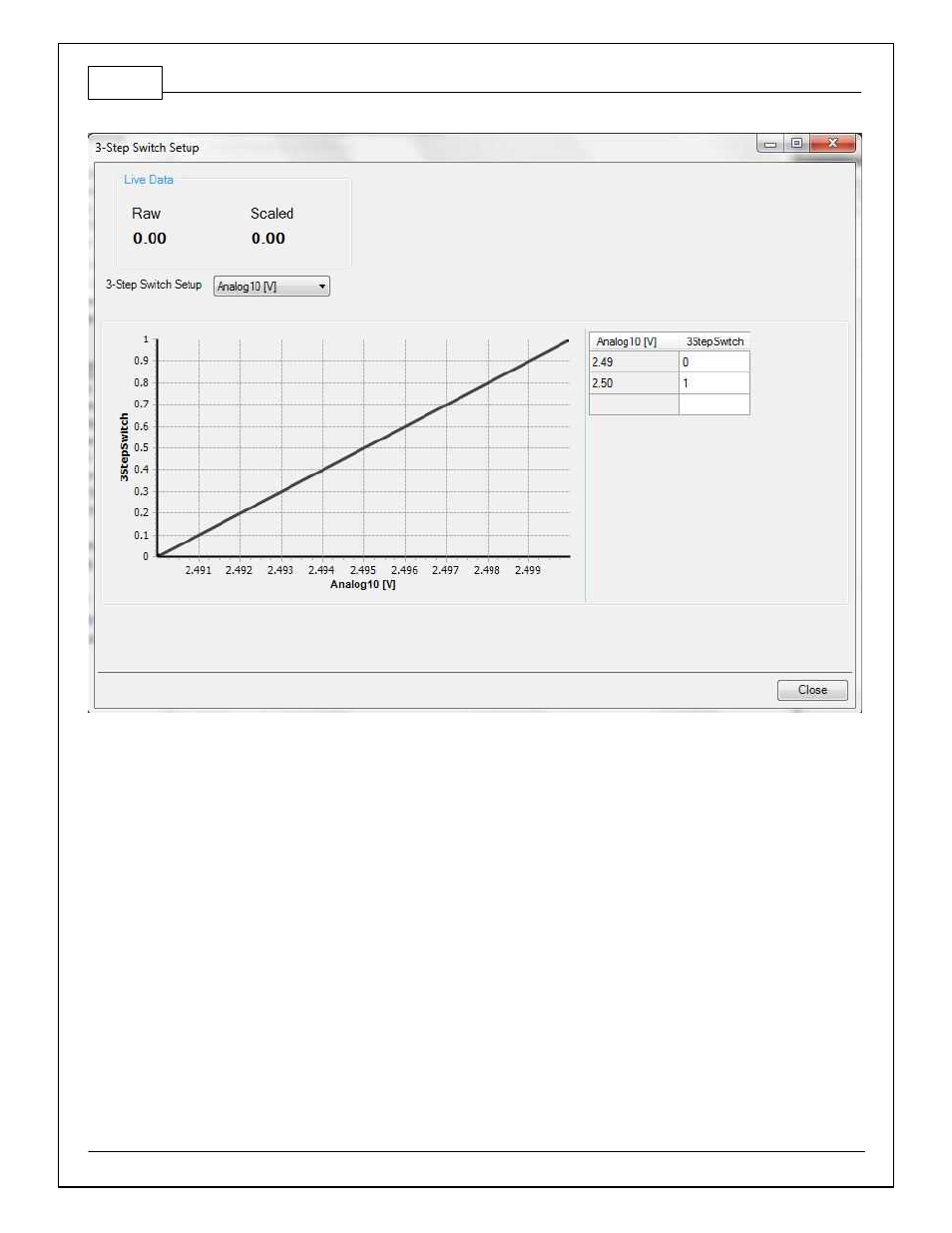

Choose the input channel from the available selections in the drop down list. Use the table to
define the logic output. In the example above, the two breakpoints are used to define a function
where the input is OFF below 2.49 volts and ON above 2.50 volts.
