AEM 30-71XX Infinity Stand-Alone Programmable Engine Mangement System Full Manual User Manual
Page 242
236
© 2014 AEM Performance Electronics
Infinity User Manual

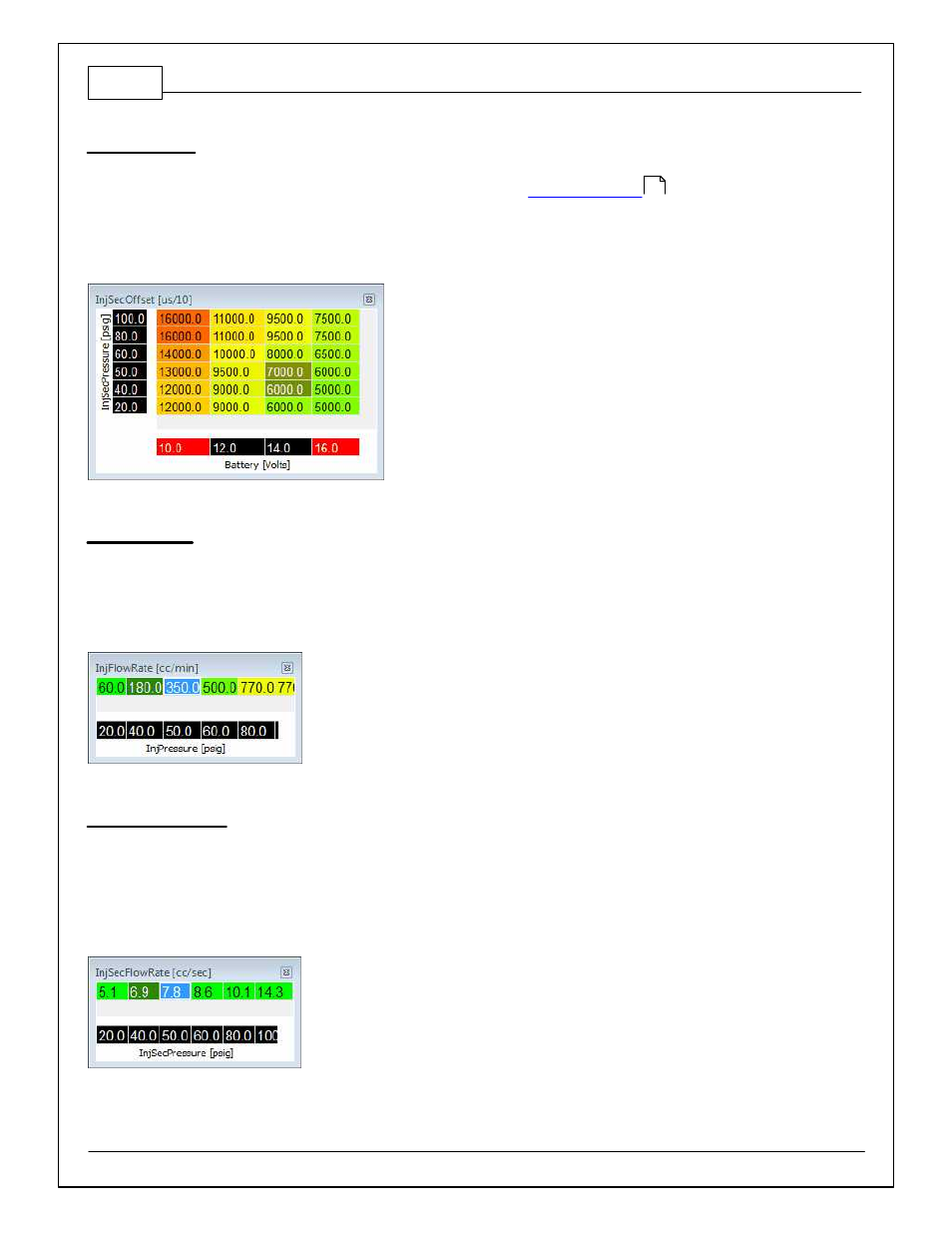

InjSecOffset
Units: PSIg vs Volts
Description: If a fuel pressure sensor is installed (see
), secondary injector
pressure can be calculated. This is simply the pressure difference between intake manifold and
secondary fuel rail pressure. This table is used to setup the secondary injectors' latency
(response time) based on the secondary injector pressure and battery voltage.
InjFlowRate
Units: Injector Flow Rate vs Injector Pressure
Description: If a fuel pressure sensor is installed, injector pressure can be calculated. This is
simply the pressure difference between intake manifold and fuel rail pressure. This table allows
for an actual injector flow rate to be entered based on the injector pressure.
InjSecFlowRate
Units: Secondary Injector Flow Rate vs Injector Pressure
Description: If a fuel pressure sensor is installed, secondary injector pressure can be
calculated. This is simply the pressure difference between intake manifold and secondary fuel
rail pressure. This table allows for an actual secondary injector flow rate to be entered based on
the injector pressure.
103
