Virtual and conversion channels, Software>virtual and conversion, Channels – AEM 30-71XX Infinity Stand-Alone Programmable Engine Mangement System Full Manual User Manual
Page 57

Software
51
© 2014 AEM Performance Electronics
Virtual and Conversion Channels
Virtual Channels provide you with a flexible means of defining and manipulating the raw data you
are viewing in Infinity Tuner. Virtual Channels allow you to select any of the available channels
present in your session and include them in custom math expressions defined by you.

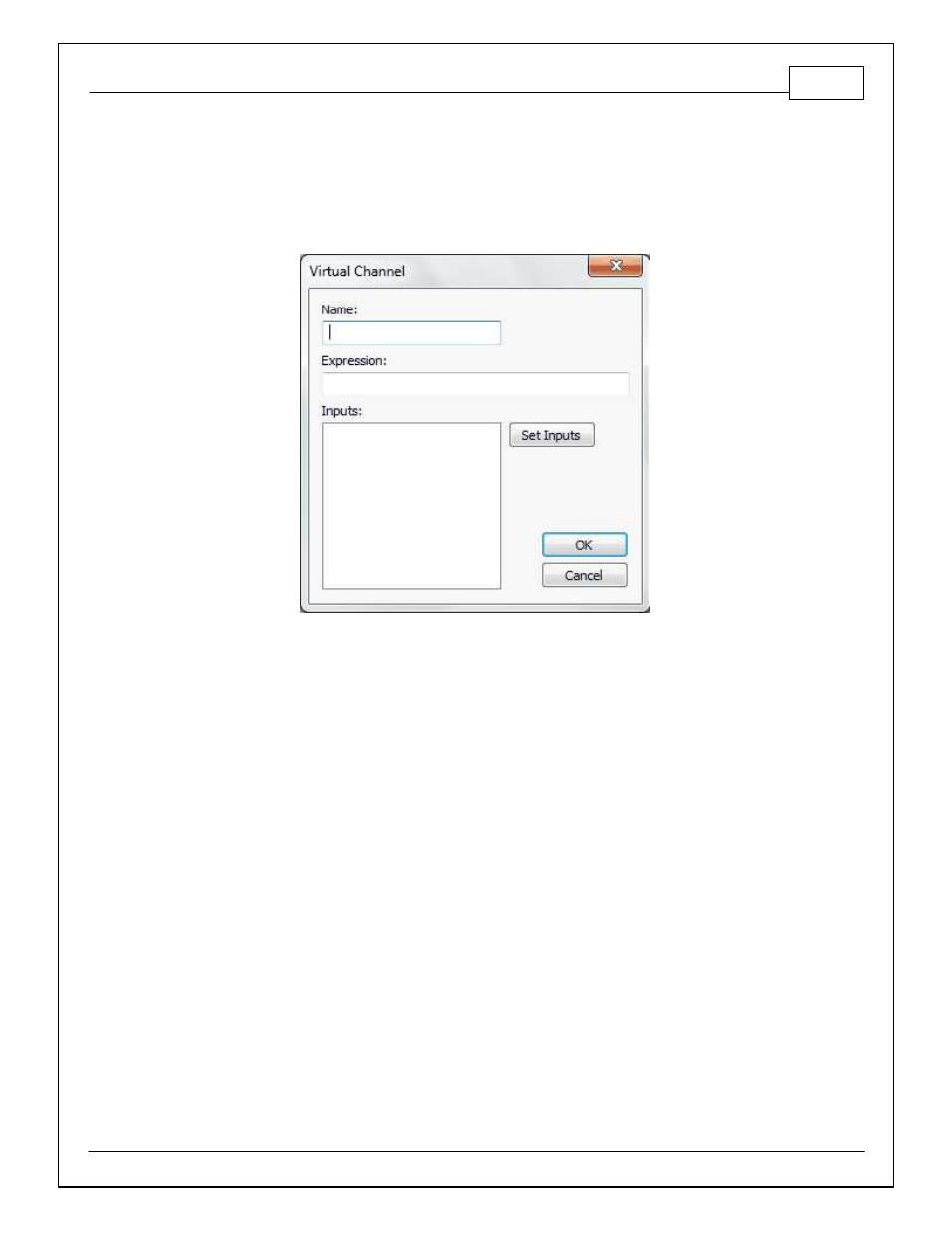

Name: Enter desired name of the virtual channel being defined.
Expression: Enter desired expression. Inputs in expressions are listed as i0, i1, i2 and so on.
For details and examples of the syntax see below.
Inputs: A list of the current channels that can be used in this virtual channel
Set Inputs: Can add/remove the channels that can be used with this virtual channel
Conversion channels provide you with a quick means of converting the values of an entire table
or graph. Once a conversion channel is created ,simply right click on the table or graph and
select the desired conversion channel from “Table conversion.”
