AEM 30-71XX Infinity Stand-Alone Programmable Engine Mangement System Full Manual User Manual
Page 107

Tuning Guide
101
© 2014 AEM Performance Electronics

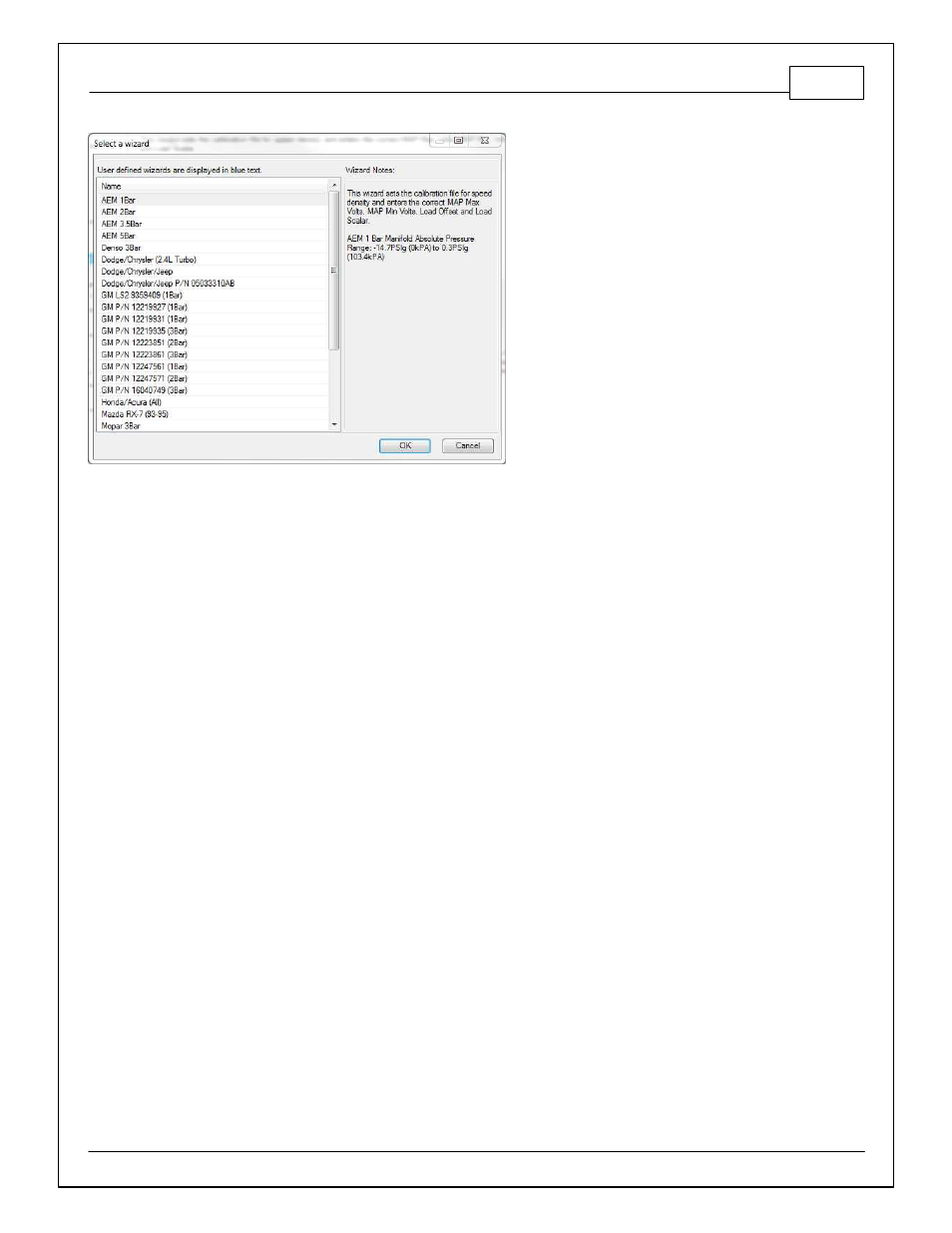

Manifold Pressure Wizard Selection:
Select the proper pre programmed data of the sensor that is being used.
MAP Volts Min:
This should be set to the manufacturer specifications. Otherwise, a value just below a raw MAP
voltage that cannot be attained while driving.
MAP Max Volts must be > MAP Min Volts.
User entries that do not meet this criteria are not allowed.
Min value = 0, Max value = 5
MAP Volts Max:
This should be set to the manufacturer specifications. Otherwise, this should be set to a value just
below the raw MAP voltage when the sensor is unplugged.
MAP Max Volts must be > MAP Min Volts.
User entries that do not meet this criteria are not allowed.
Min value = 0, Max value = 5
MAP Cal Max [kPa]:
This should be set to the manufacturer specifications.
MAP Cal Max must be > MAP Cal Min.
User entries that do not meet this criteria are not allowed.
Min value = 0, Max value = 700
MAP Cal Min [kPa]:
This should be set to the manufacturer specifications.
MAP Cal Max must be > MAP Cal Min.
User entries that do not meet this criteria are not allowed.
Min value = 0, Max value = 700
MAP Smoothing:
