AEM 30-71XX Infinity Stand-Alone Programmable Engine Mangement System Full Manual User Manual
Page 265
Tuning Guide
259
© 2014 AEM Performance Electronics

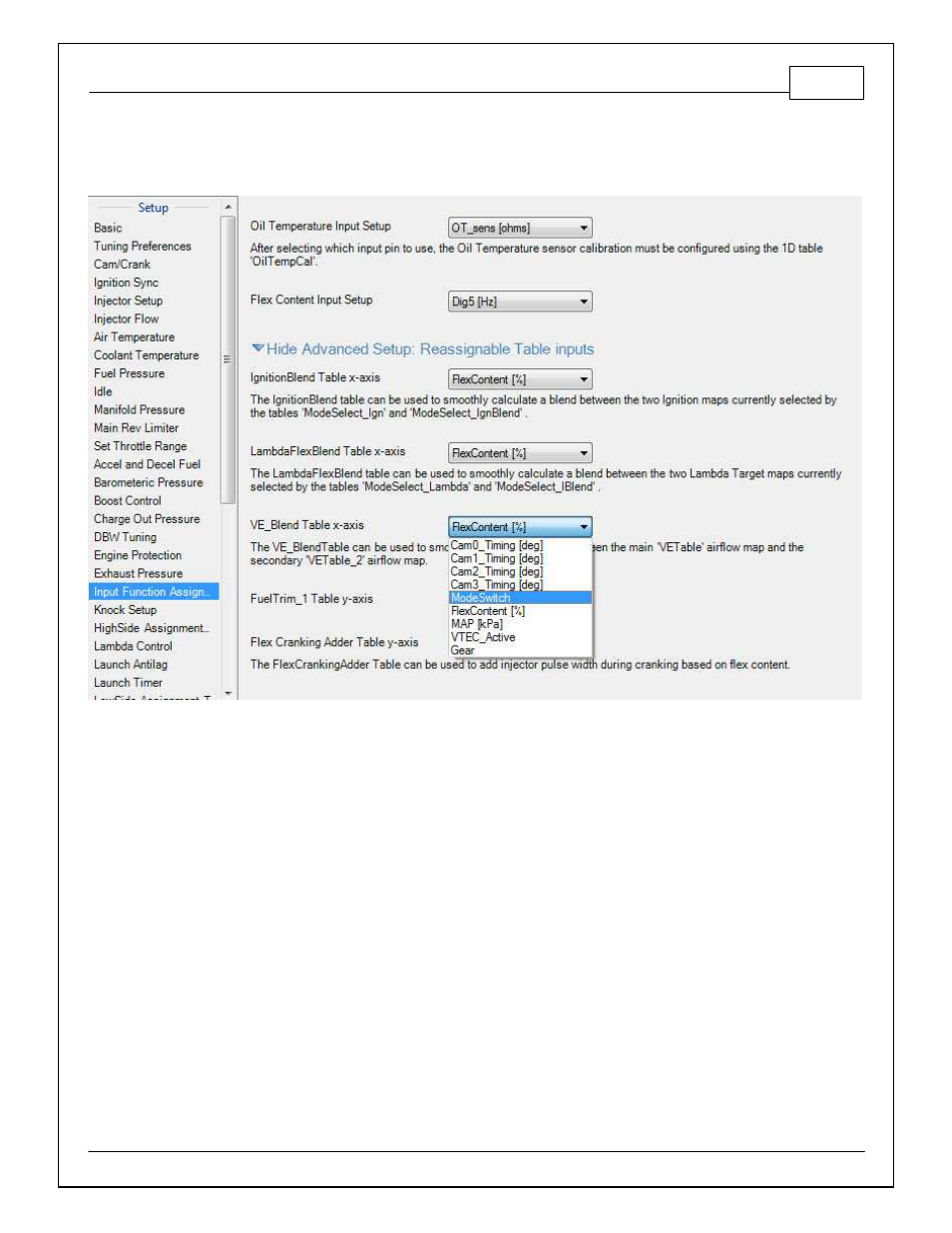

Note that the input axis data for the VE_BlendTable is user selectable in the setup wizard as
shown below.
It might be beneficial to blend between the two available VE maps based on either
CamX_Timing [deg] or VTEC state as these certainly influence the engine's VE.
