Software 39
© 2014 AEM Performance Electronics

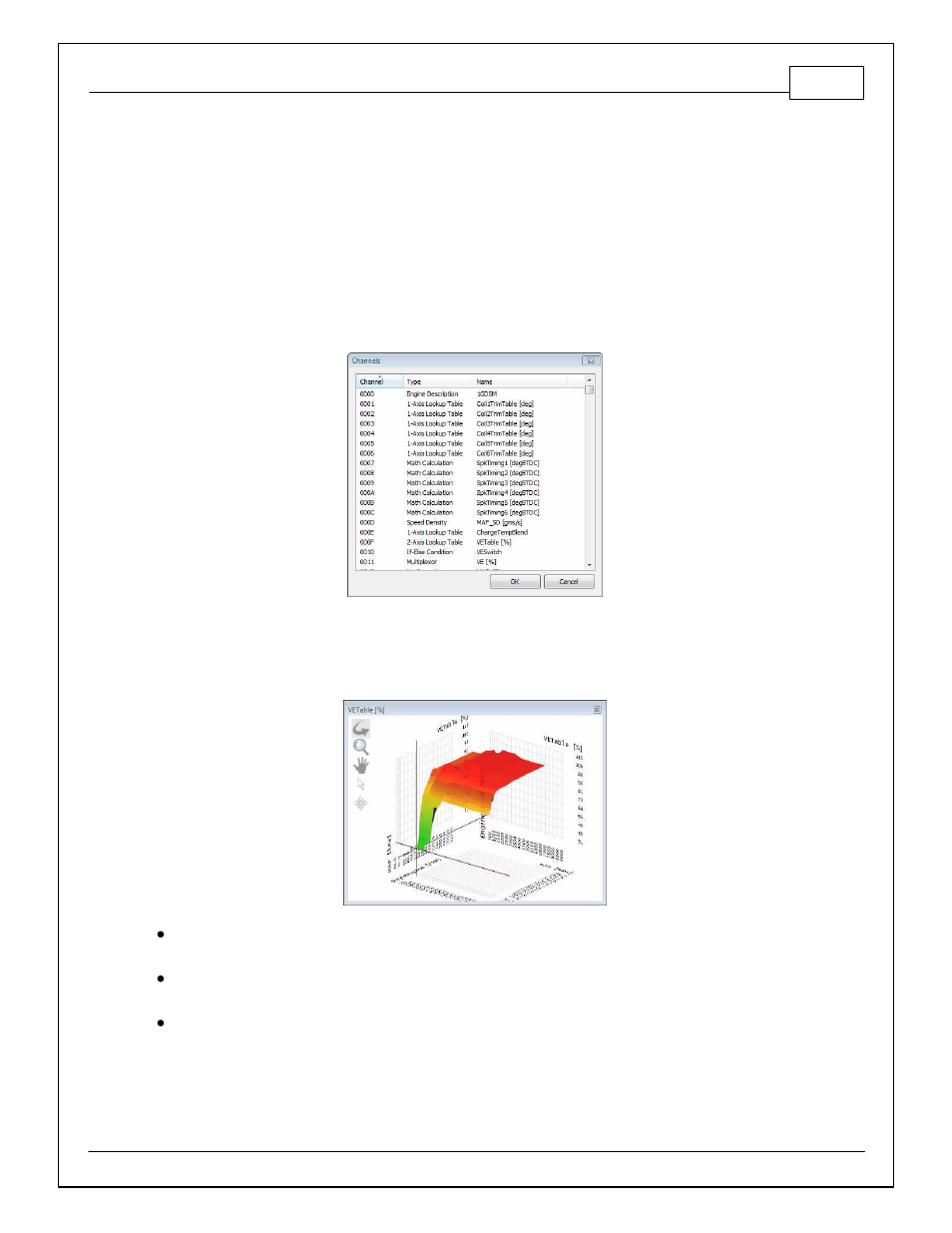

3D Graph
A 3D Graph represents a two-dimensional matrix (two input channels).The two inputs index into a
lookup table for the output.
To add a 3D Graph:
1. Select Layout > Add Control > 3D Graph.
2. Right Click on the window and select Set Channel.
3. Select the desired 2-Axis Lookup Table from the Channel List dialog box.
4. Click OK. A 3D Graph provides a visual representation of one channel input relative to
another channel input.
Rotate: Rotates the 3D graph. Left-click, hold, and move the cursor to the right, left,
up or down to rotate the graph right, left, up or down.
Zoom: Zooms in and out. Left-click, hold, and move the cursor to enlarge or reduce
the graph size.
Pan: Moves the 3D graph left, right, up, or down
