AEM 30-71XX Infinity Stand-Alone Programmable Engine Mangement System Full Manual User Manual
Page 141
Tuning Guide
135
© 2014 AEM Performance Electronics

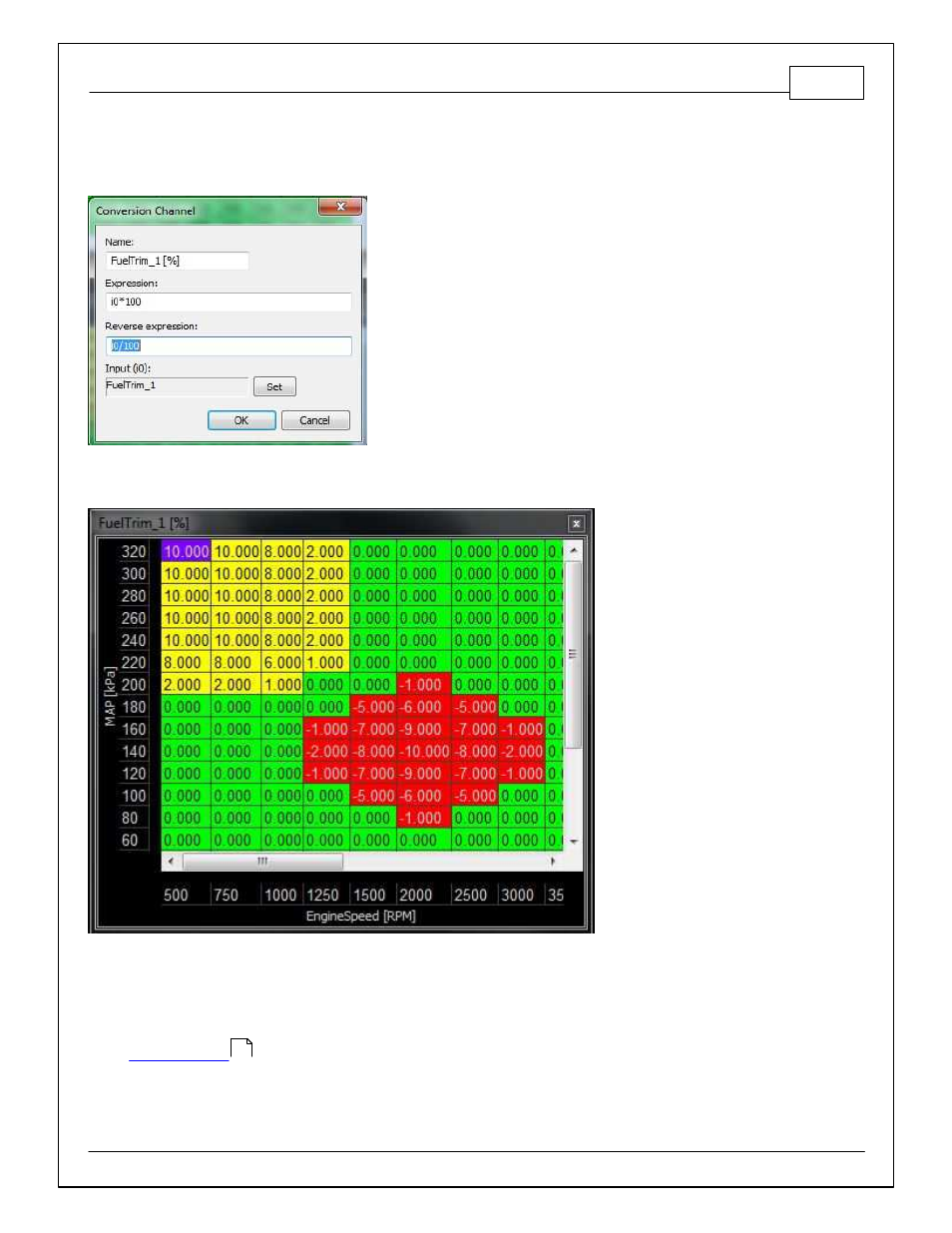

A conversion channel of the following format will allow the user to view the data in [%]
modifications.
When this conversion channel is applied, the data will be represented as follows.
Aside from these main fuel trims, there are a few other functions that can add fuel trims:
FuelTrim_N2O:
FuelTrim_N2O is a the amount of fuel added when the nitrous function is enabled. See the
section for more details.
FuelTrim_Decel:
FuelTrim_Decel is a the amount of fuel added after the decel cut has turned off, to prevent
205
