Ethernet connection, Ethernet connection -11, Figure 3-7 – ADTRAN 1248 User Manual
Page 35: Total access 1248 ethernet port -11
Installation Steps
61179641AL4-5B
3-11
Ethernet Connection
The Total Access 1248 interfaces with networks for management through an Ethernet port
(see
).

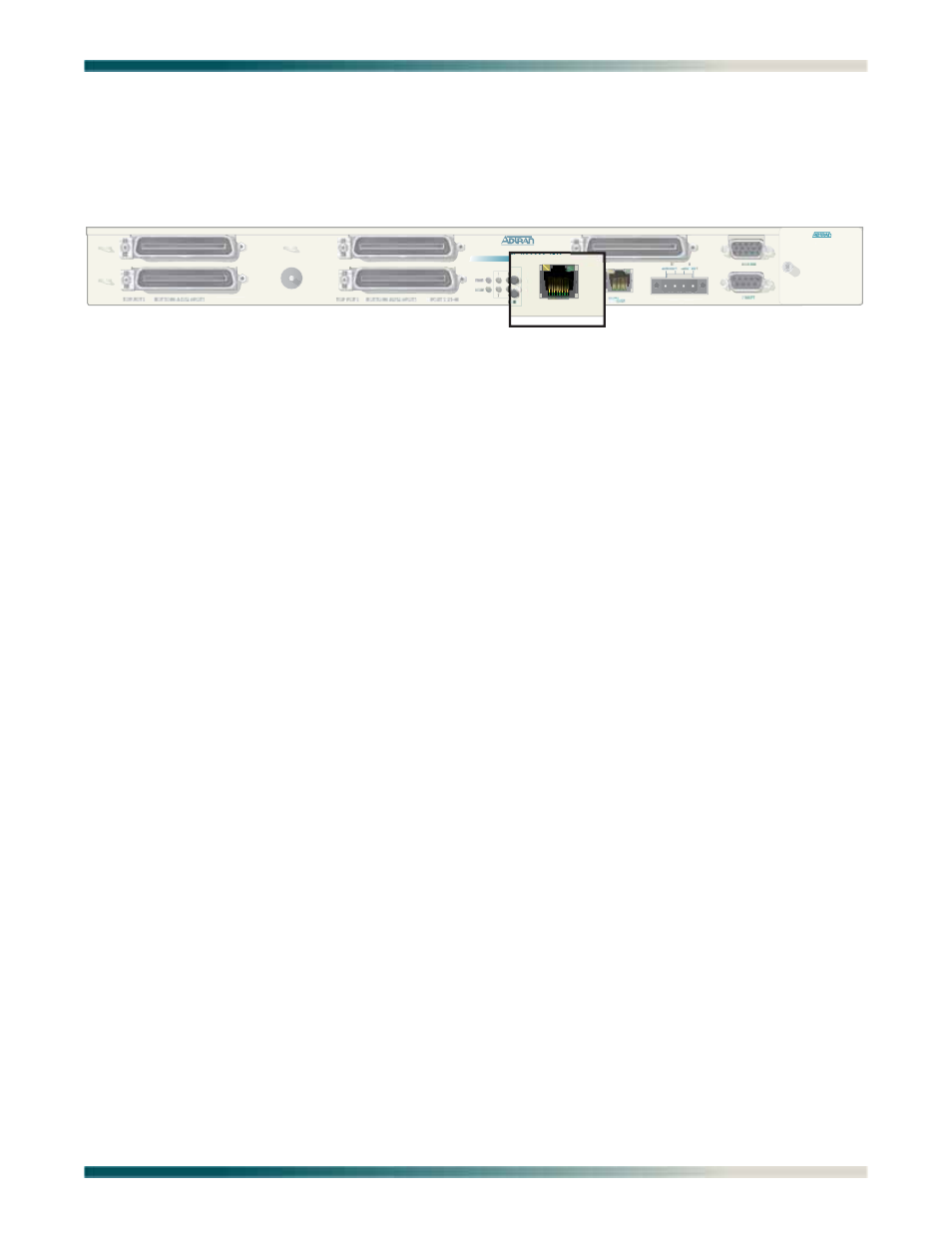

Figure 3-7. Total Access 1248 Ethernet Port
The following Ethernet protocols are supported:
• IEEE 802.3, 10/100Base-T
• DHCP Client Mode for Management
• SNMP
FAN MODULE
1179675L1
1179641AL4
PORTS 1-24
EXPANSION
-48V .....,5.0A
.
USE COPPER CONDUCTORS ONLY!
ETHERNET
7
8
