2. UNPACKING AND INSTALLATION
Carefully unpack the balance, remove plastic, cardboard and foil packagings
together with protective elements and using gently movements place the

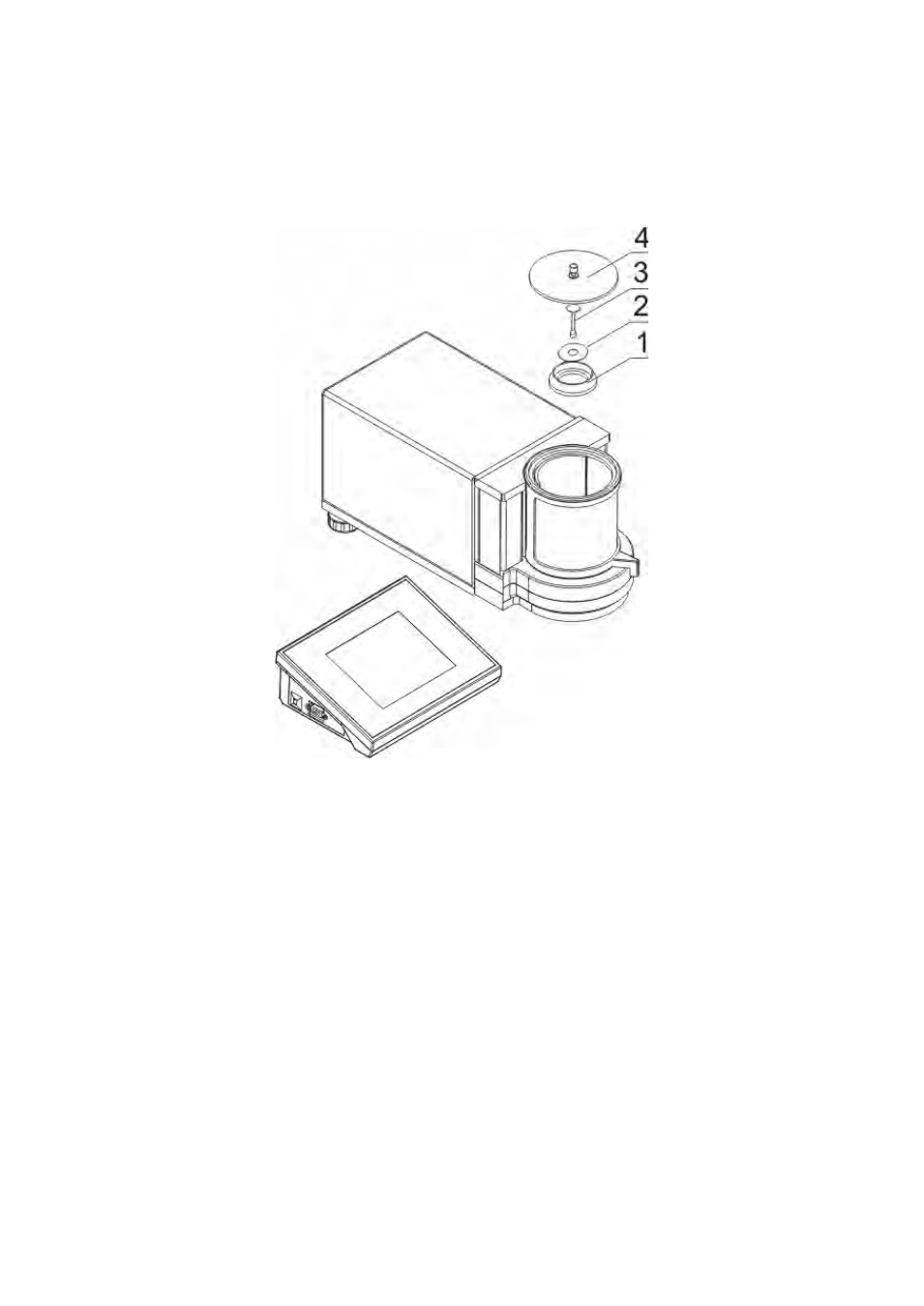

balance onto its location. Assembly the weighing pan and other elements
following the diagram.
After installing the balance at the operating place, following elements should be
set in a given order:
1 – pan shield
2 – bottom ring
3 – balance pan
4 – glass cover
After the elements setting, additional devices should be connected and balance
should be plugged to power source. Power socket is located at the back side of
an electronic module.
