Omega confirms a successful operation with the message MAC
address added and the MAC address.
8. Return to the Main Menu.
Changing a
Multicast Port
Assignment
To add or remove ports from a multicast MAC address assignment, re-
enter the multicast MAC address and the new port assignments by
performing the instruction in the previous section. This will overwrite
the old port assignments with the new port information.
Deleting a
Multicast Address
To delete a multicast address from the MAC address table, perform the
following procedure:
1. From the Main Menu, select the switch with the multicast address to
be deleted.
2. From the Main Menu, select MAC Address Table.
The MAC Address Table menu is displayed.
3. Select Multicast addresses.
The menu in Figure 45 on page 4-92 is displayed.
4. Select Delete MAC Address.
The Deleting a Multicast Address window in Figure 47 is
displayed.

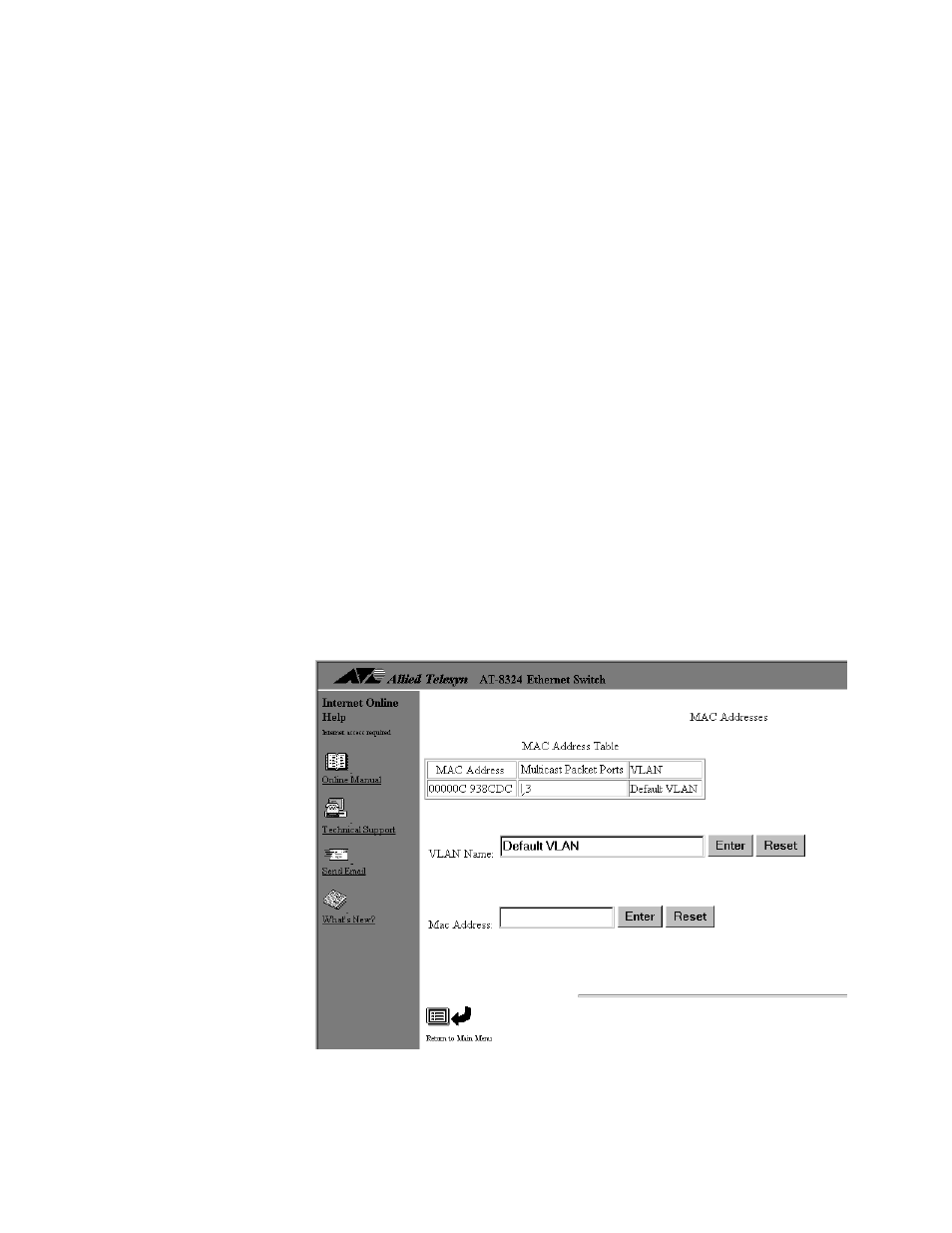

Figure 47 Deleting a Multicast Address Window
