AT-S25 Version 1.4 User’s Guide
93
4. Select Add MAC address.
The Adding a Multicast Address window shown in Figure 46 is
displayed.

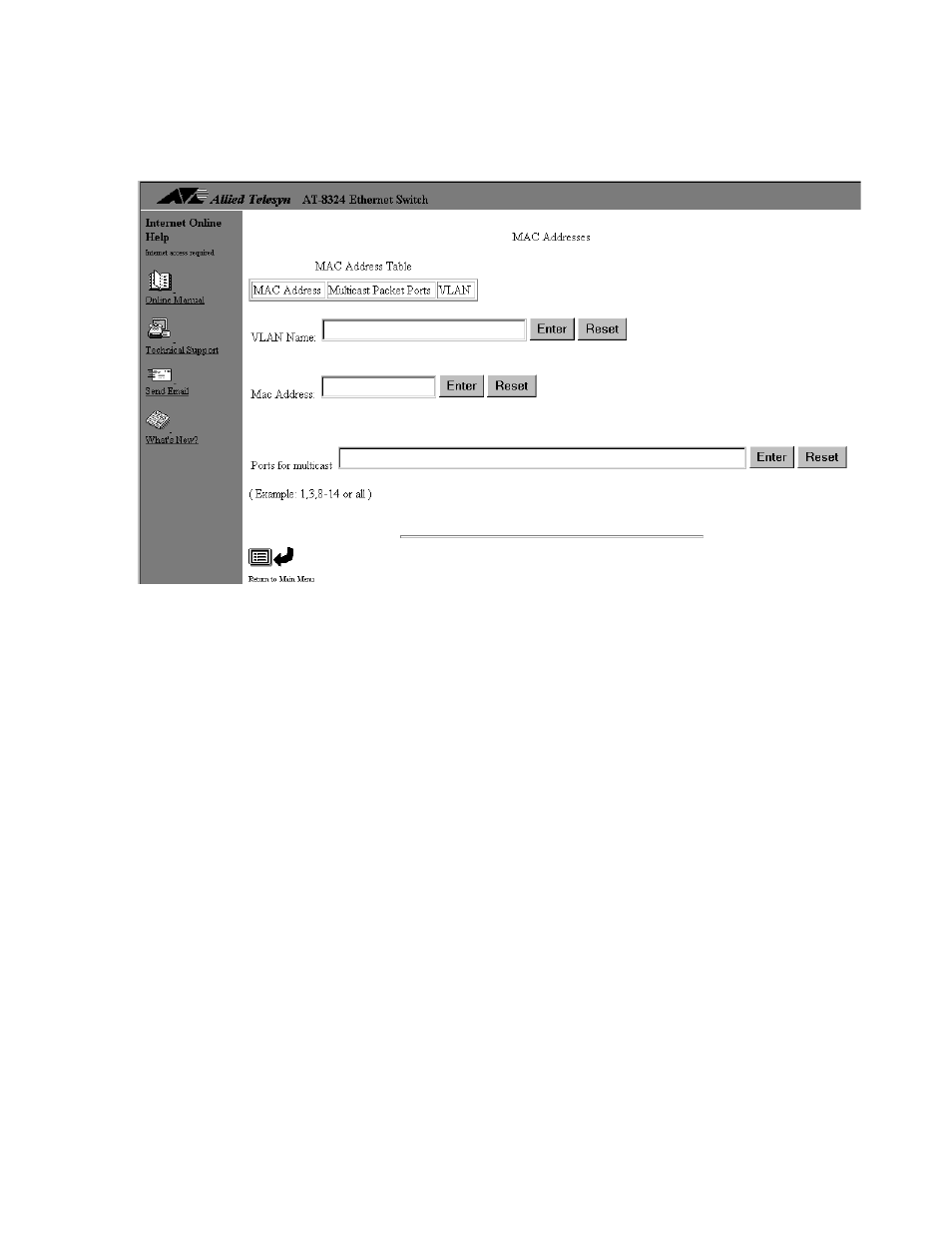

Figure 46 Adding a Multicast Address Window
5. In the VLAN Name field, enter the name of the VLAN to receive the
multicast frames. Press .
6. In the MAC Address field, enter the MAC address of the multicast
stream. Press .
7. In the Ports for Multicast field, enter one or more port numbers that
are members of the specified VLAN and that are to receive the
multicast packets from the device. Press .
You can use one of the following formats to specify the port
numbers:
Single port (for example, 1)
Several ports separated by comma (for example, 3, 8, 22)
Range of ports (for example, 4-16)
All ports by entering the word “all”
You can combine these different formats in a single line.
Any port can have more than one multicast address associated
with it. The number of multicast addresses you can configure is
limited to ten (10) per switch.
