56
The Terminal Configuration window shown in Figure 17 is
displayed.

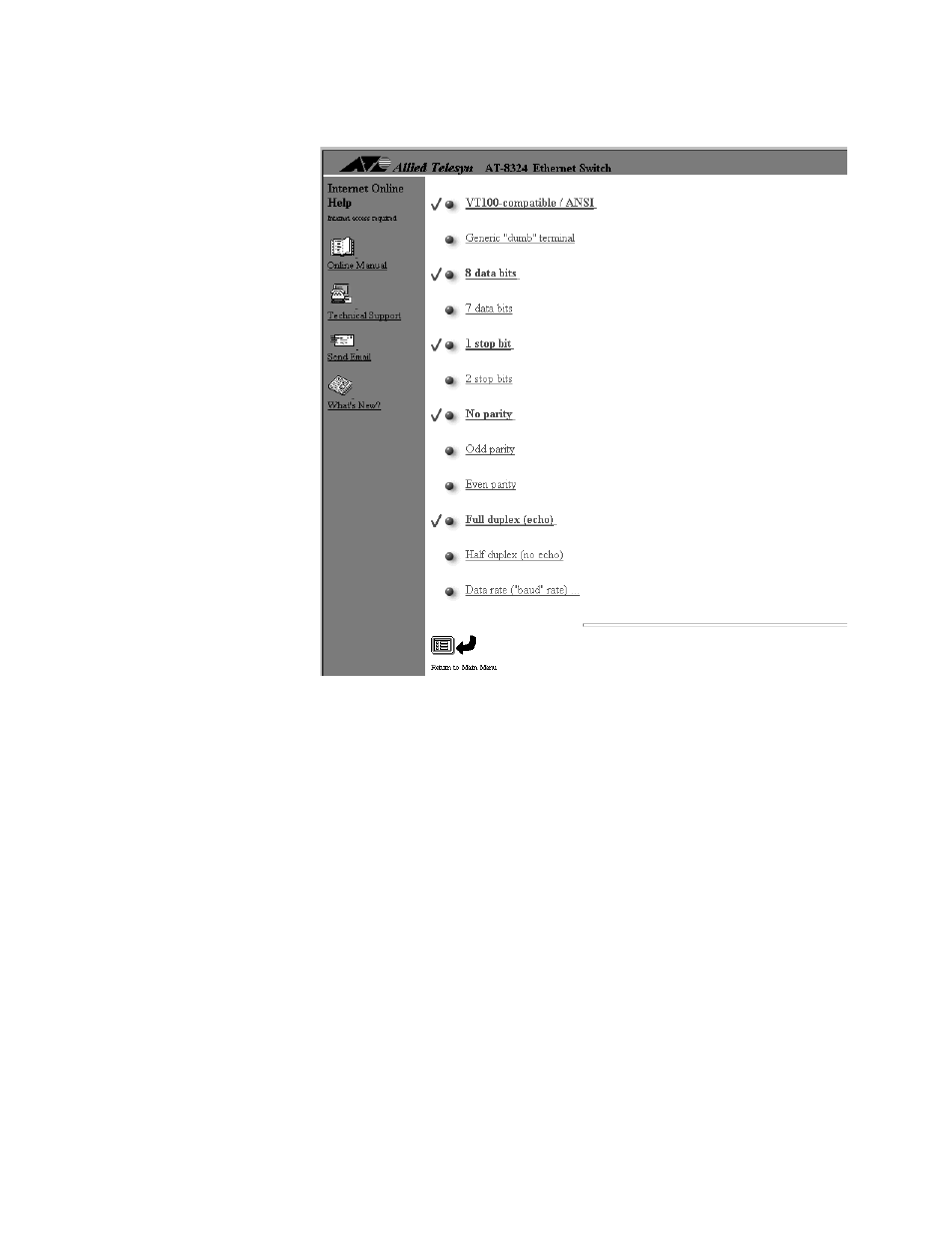

Figure 17 Terminal Configuration Window
If you are running the Omega session from a web browser, you
can display the Terminal Configuration window by clicking on the
RS232 port in the graphic display of the master switch.
4. Adjust the settings as desired.
The parameters are described below.
VT100-compatible / ANSI
Generic “dumb” terminal
You use these selections to specify the type of terminal. The
default is VT100-compatible / ANSI.
8 data bits
7 data bits
These two selections are used to specify the number of data bits.
The default is 8 data bits.
