Introduction to Virtual LANs
150
Tagged VLAN
Example

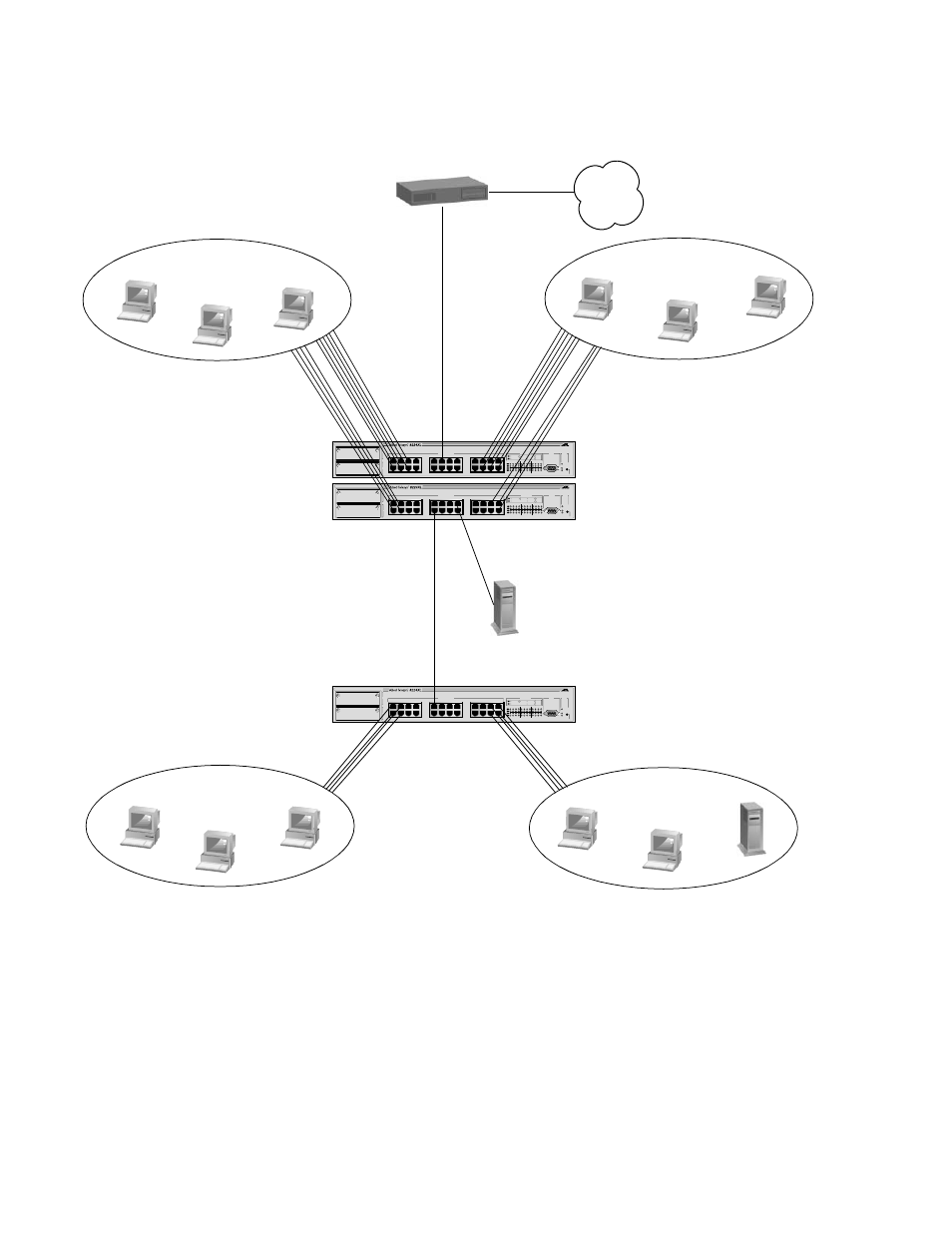

Figure 62 is an example of a network that uses tagged ports in two
tagged VLANs to share network devices.
Figure 62 Tagged VLAN Example
