60
Displaying the Activity Monitor
The Activity Monitor is useful in monitoring the status of a ping
command or in determining the status of a software download from
switch to switch. To display the Activity Monitor, perform the following
procedure:
1. From the Main Menu, select the master switch.
2. From the Main Menu, select Administration.
3. From the Administration menu, select Activity monitor.
The Activity Monitor window for the stack is displayed. The
example shown in Figure 19 displays the results of a ping
command.

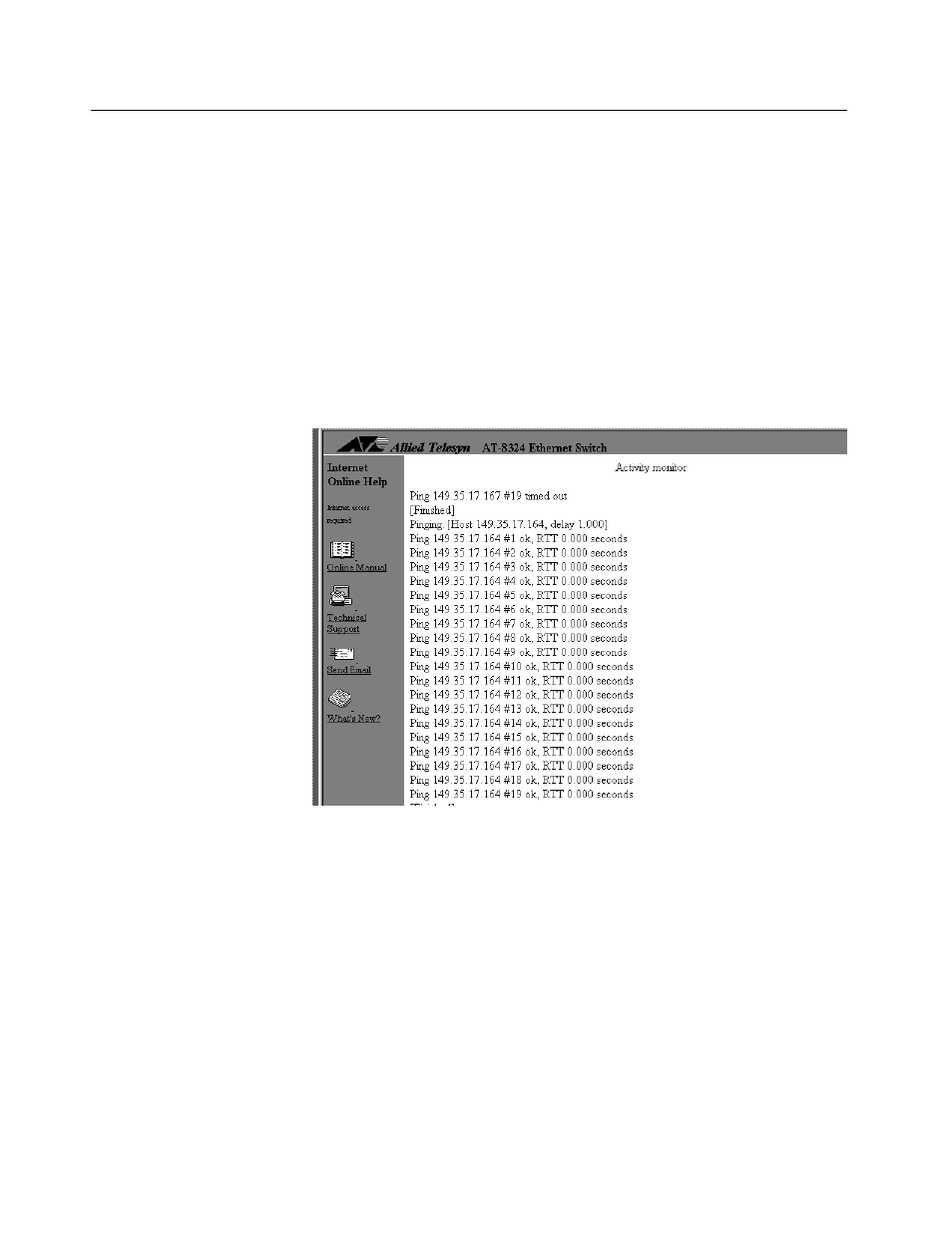

Figure 19 Activity Monitor Window
4. Return to the Main Menu.
