AT-S25 Version 1.4 User’s Guide
59
The tests take only a second or two to complete. The results are
displayed in the Diagnostics window. An example of the window
is shown in Figure 18.

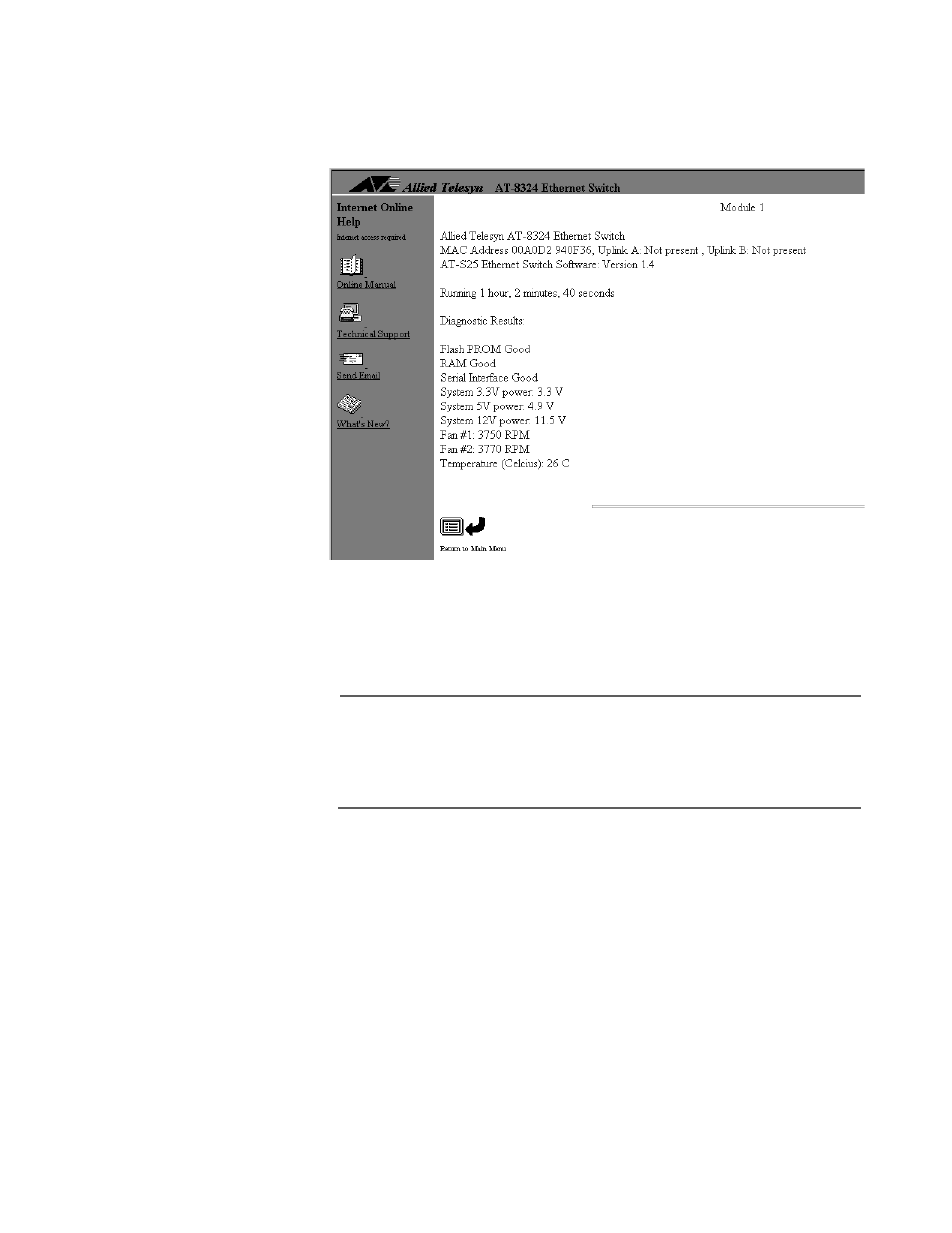

Figure 18 Sample Diagnostics Window
The Flash PROM, RAM, and Serial Interface test results are given as
Good or Failed.
Note
The second and third lines in the Diagnostic window, concerning
the MAC address, the presence of expansion modules, and the
software version number, apply only to the master switch,
regardless of the currently selected switch.
4. Return to the Main Menu.
