Allied Telesis AT-S25 - Manual (Page 89)

AT-S25 Version 1.4 User’s Guide
89
The window in Figure 43 is displayed. You use this window to
specify the MAC address of the device you want to allow access to
the port, as well as the name of the VLAN to which the port
belongs.

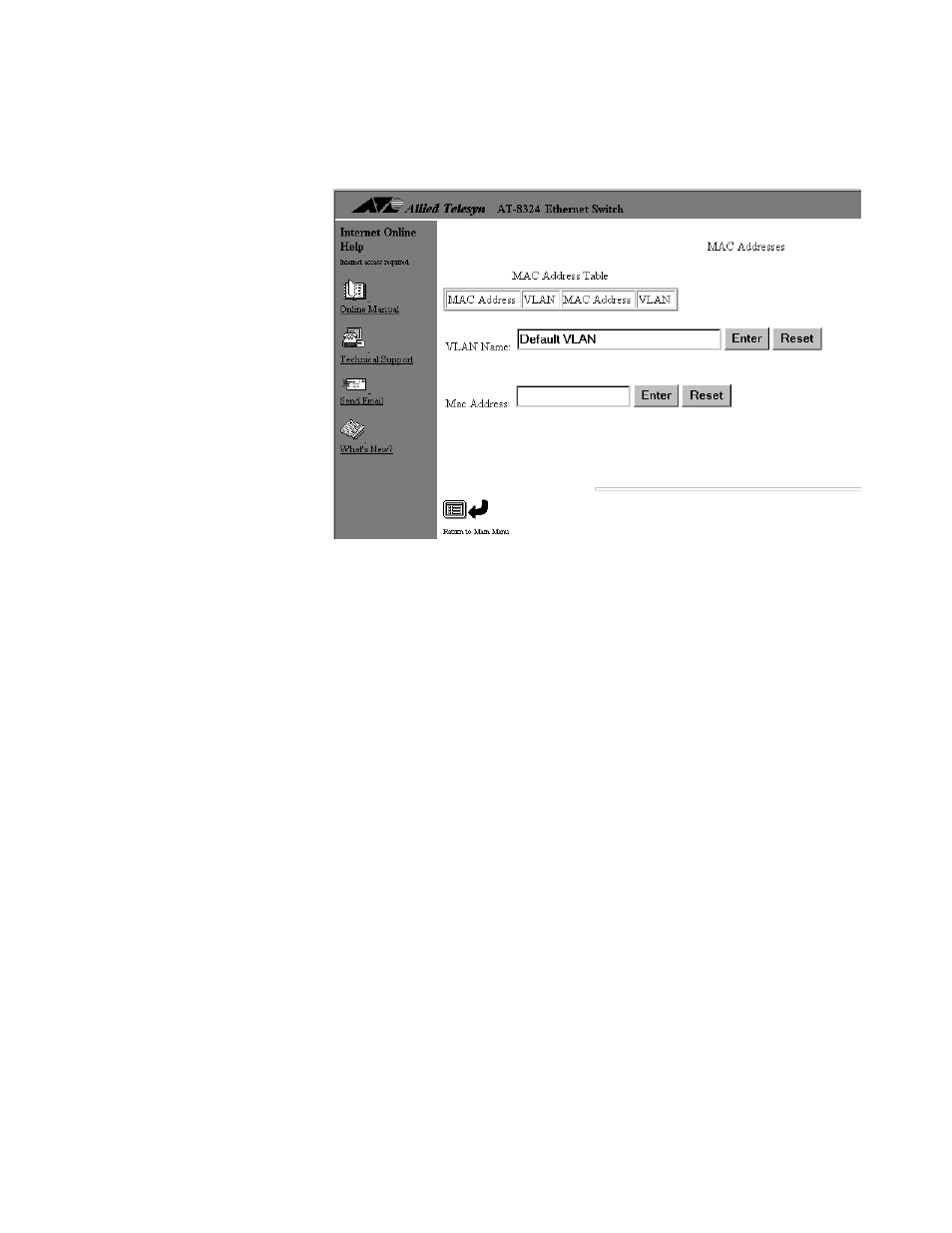

Figure 43 Adding a Static MAC Address
7. In the VLAN Name field, specify the VLAN to which the port belongs.
If you have not created any VLANs on the stack, you should enter
Default VLAN. Press or select Enter.
8. In the MAC Address field, enter the static MAC address of the device
to have access to the port. Press or select Enter.
The address should be entered in the following format:
XXXXXX XXXXXX
After adding a static MAC address, return to the Main Menu and
select All static MAC addresses from the MAC Address Table menu
to display the updated table.
The static MAC address appears on the Static MAC table. You can
configure only one static MAC address per port.
9. Return to the Main Menu.
