3. To view received frame statistics for a particular port, do either of the
following:
a. Select Individual port overview and then a port. The frames
statistics for the selected port are displayed. Figure 55 is an
example of the window.

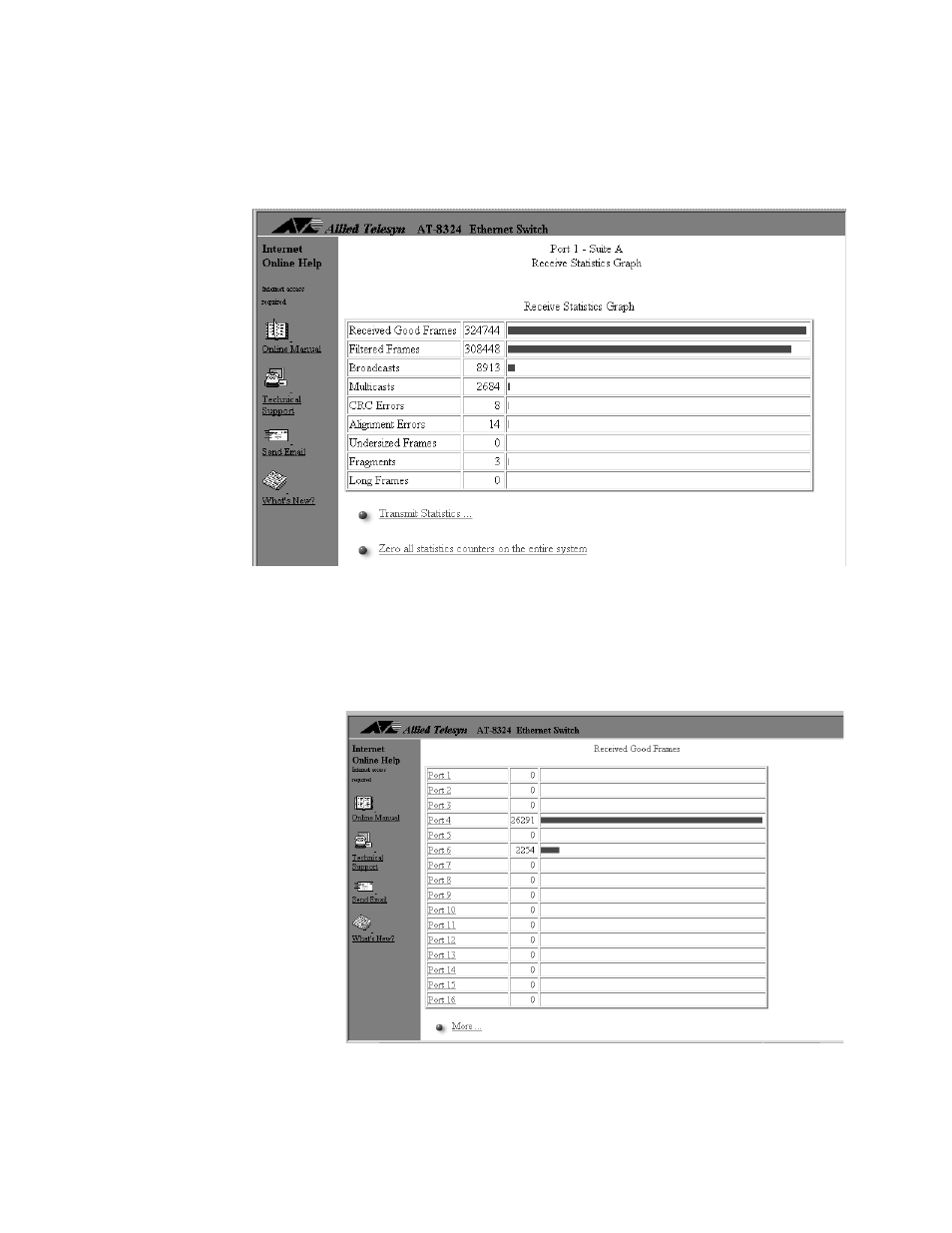

Figure 55 Graph of a Port’s Received Frames
b. Select a frame type from the Receive Frames window. The
statistics for the selected frame type for all of the ports is
displayed. A example is shown in Figure 56.
Figure 56 Sample Graph of a Single Frame Type on All Ports
