Allied Telesis AT-S25 User Manual
Page 44
44

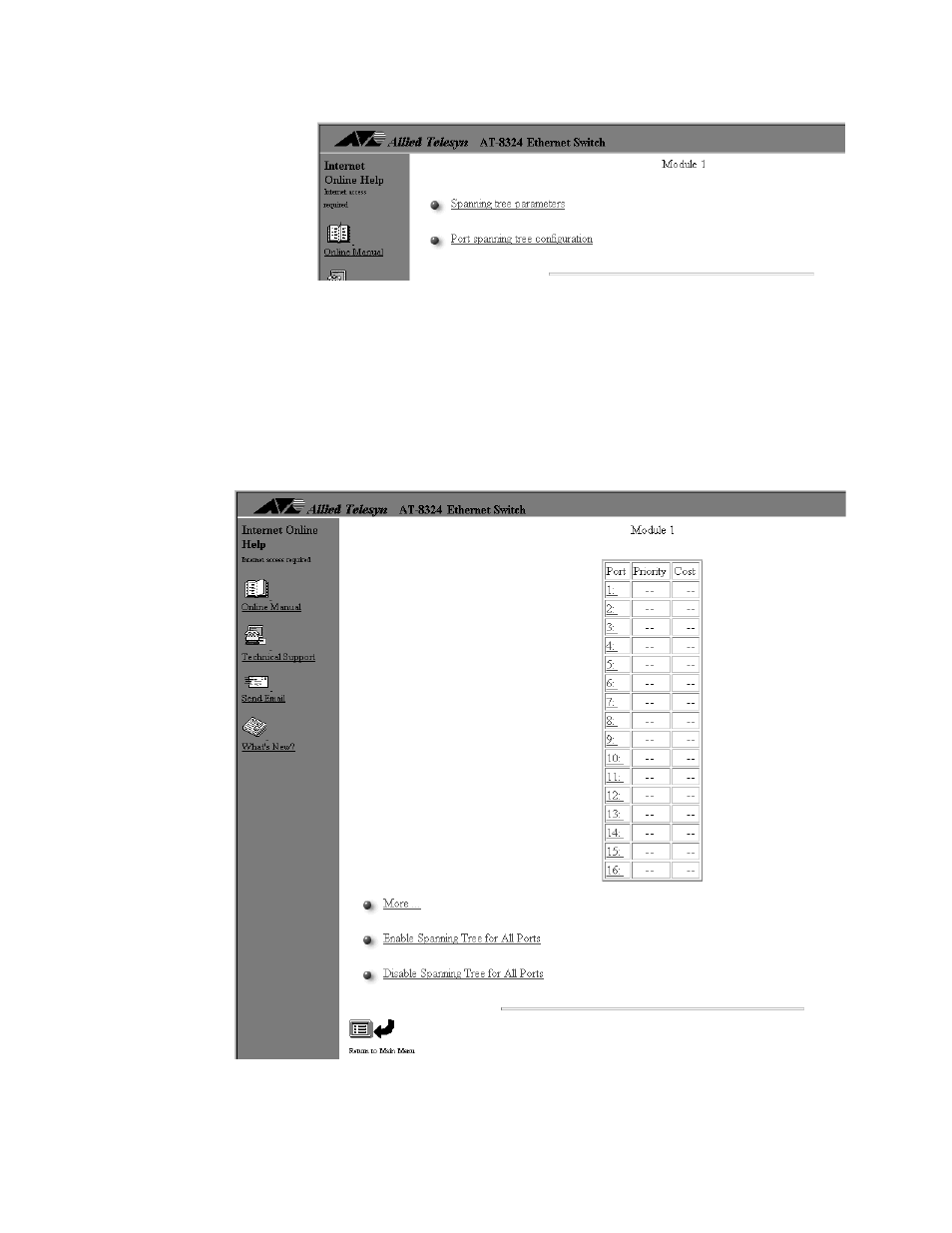

The Bridging menu in Figure 9 is displayed.
Figure 9 Bridging Menu
3. Select Port spanning tree configuration.
The Port Parameters for the Spanning Tree Protocol window in
Figure 10 is displayed. The window lists the ports on the switch
and the current STP parameter settings for the ports. Figure 10 is
an example of the window.
Figure 10 Port Parameters for the Spanning Tree Protocol
