84
The table lists each MAC address that the stack has learned, the
number or name of the port on which the MAC address was
detected, and the VLAN to which the port belongs.
Clicking the Refresh button at the bottom of the window queries
the switch for the latest MAC addresses and displays an updated
version of the MAC address table on the screen.
4. Return to the Main Menu.
Displaying the
MAC Addresses
of a Port
In addition to displaying all of the MAC addresses stored in a switch, you
can also display the MAC addresses associated with a specific port. This
allows you to easily determine the MAC addresses of the devices
connected to a port on a switch.
To display the MAC addresses for a specific port, perform the following
procedure:
1. From the Main Menu, select the switch containing the port whose
MAC addresses you want to view.
2. From the Main Menu, select MAC Address Table.
The MAC Address menu shown in Figure 35 is displayed.
3. Select By port MAC addresses.
A list of the ports on the switch is displayed.
4. Select the desired port number from the list.
The MAC Address Table Per Port window is displayed. The
window contains the MAC addresses that have been detected on
the selected port. Figure 37 is an example of the window.

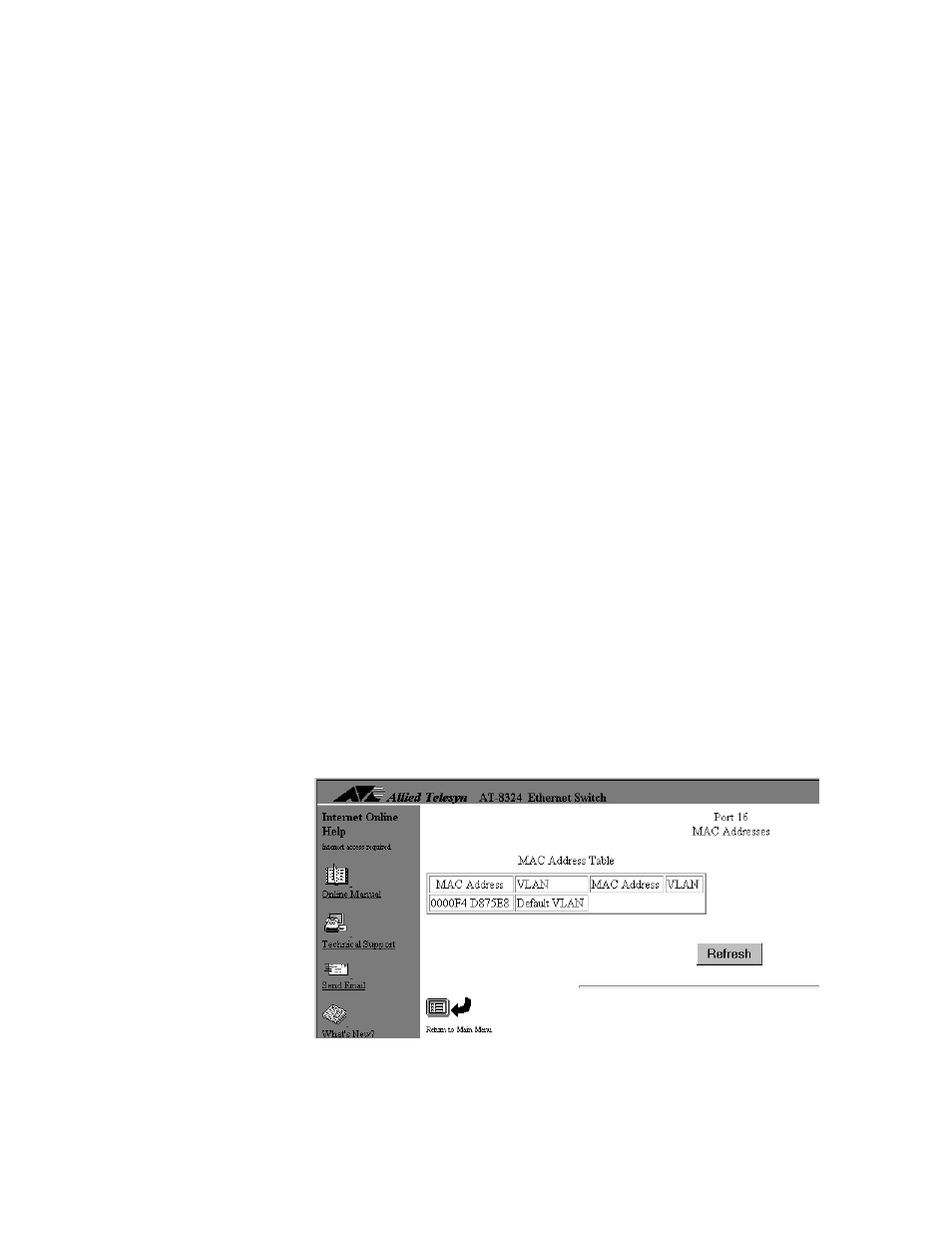

Figure 37 MAC Address Table Per Port Window
