88
Adding Addresses
to the Static MAC
Address Table
To add MAC addresses to the static MAC address table, perform the
following procedure:
1. Compile a list of the MAC addresses of the devices to be added to the
table.
2. From the Main Menu, select the switch in the stack with the port
where you want to add static MAC addresses.
3. From the Main Menu, select MAC Address Table.
The MAC Address Table menu shown in Figure 35 is displayed.
4. Select Per port static MAC addresses.
A list of the ports on the switch is displayed.
5. Select the port where the static MAC address is to be added.
The window in Figure 42 is displayed. The window lists the static
addresses already defined for the selected port.

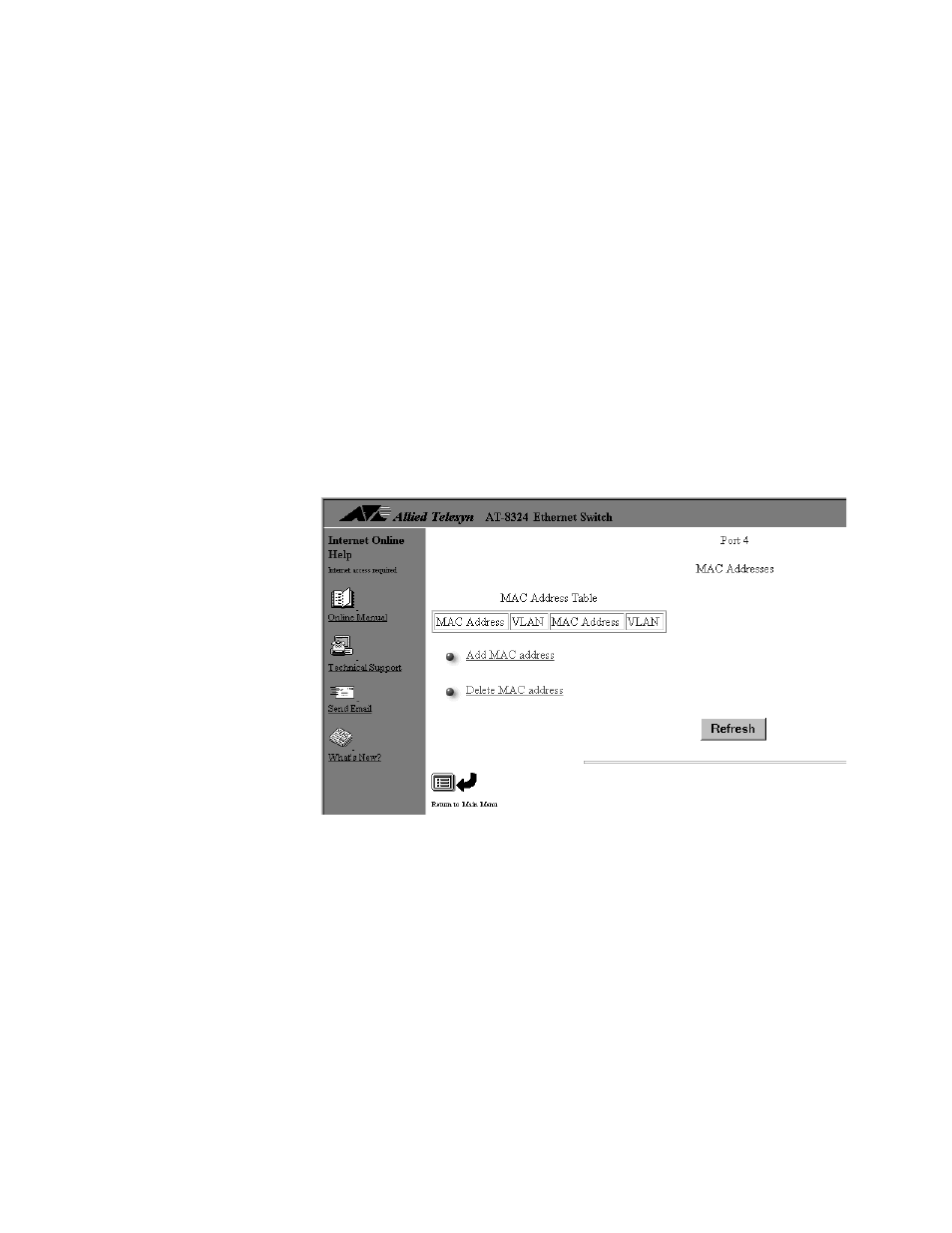

Figure 42 Static MAC Addresses Per Port Window
6. Select Add MAC Address.
