Guideline 8: Creating Port Trunks on Expansion Modules
The ports on some expansion modules can be grouped together to form
port trunks. Refer to Table 4 to determine if your expansion modules
support port trunking.
Creating a Port
Trunk
To create a port trunk, perform the following procedure:
1. From the Main Menu, select the switch where the port trunk is to be
created.
2. From the Main Menu, select System configuration.
The System Configuration menu is displayed.
3. Select Port trunking.
The Port Trunking window is displayed. The window lists the port
groups on the selected switch. The example in Figure 28 shows
the five port groups on an AT-8324 switch. Port groups 1, 2, and 3
are for the twisted pair ports, and port groups 4 and 5 are for the
optional expansion modules.

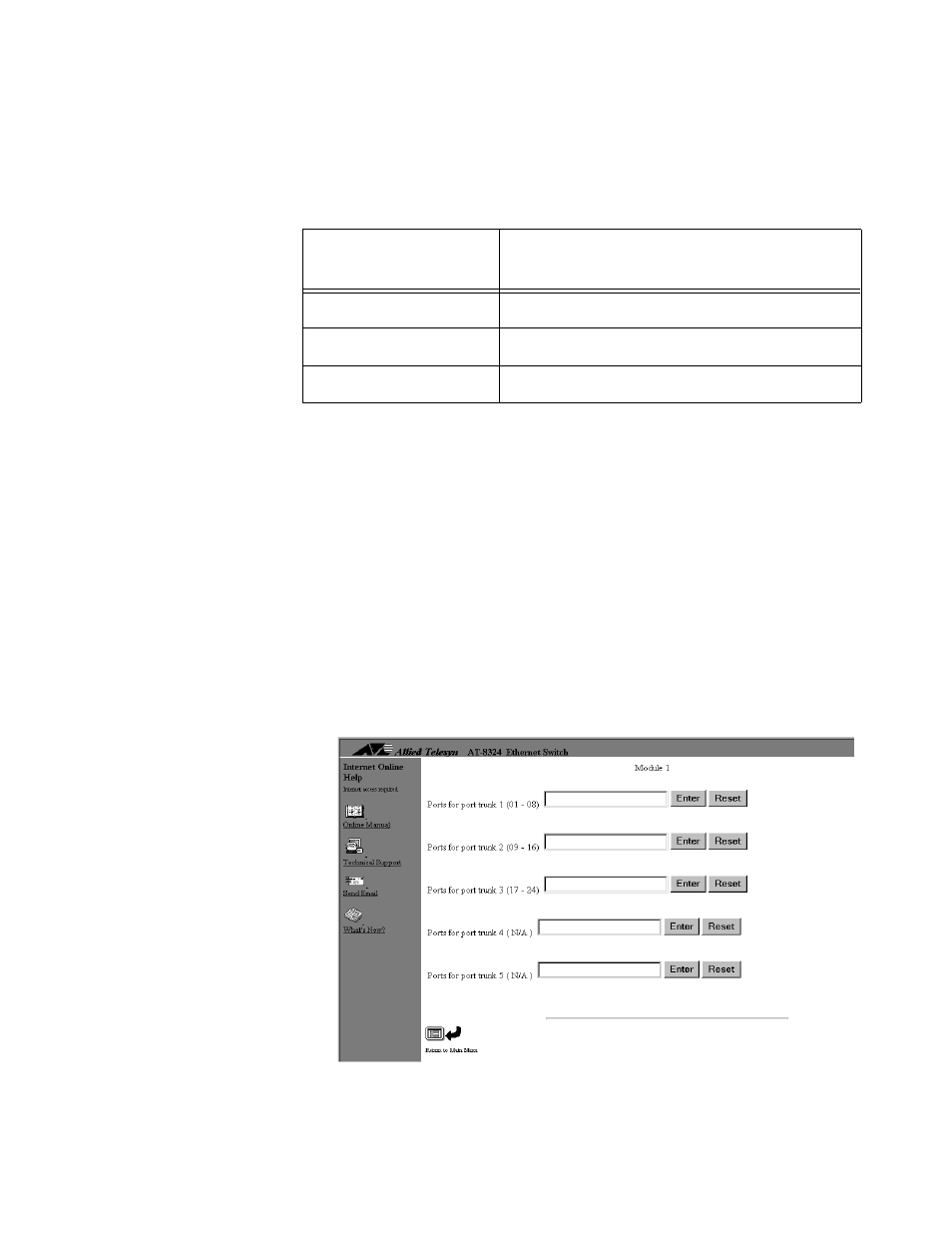

Figure 28 Port Trunking Window for an AT-8324 Switch
Table 4 Trunked Ports on Expansion Modules
Number of Ports on
Expansion Module
Port Trunks
1 Does not support port trunking.
2 One port trunk consisting of two ports.
4 One trunk consisting of two or four ports.
