38 Ag Leader Integra and Versa Firmware Version 4.3 / Edge Firmware Version 5.1
RTK
The RTK screen enables you to set all the RTK radio settings.
Note: RTK is a position location process using a GPS receiver and a Base Station to provide sub-
inch position accuracy.
To access the RTK screen:

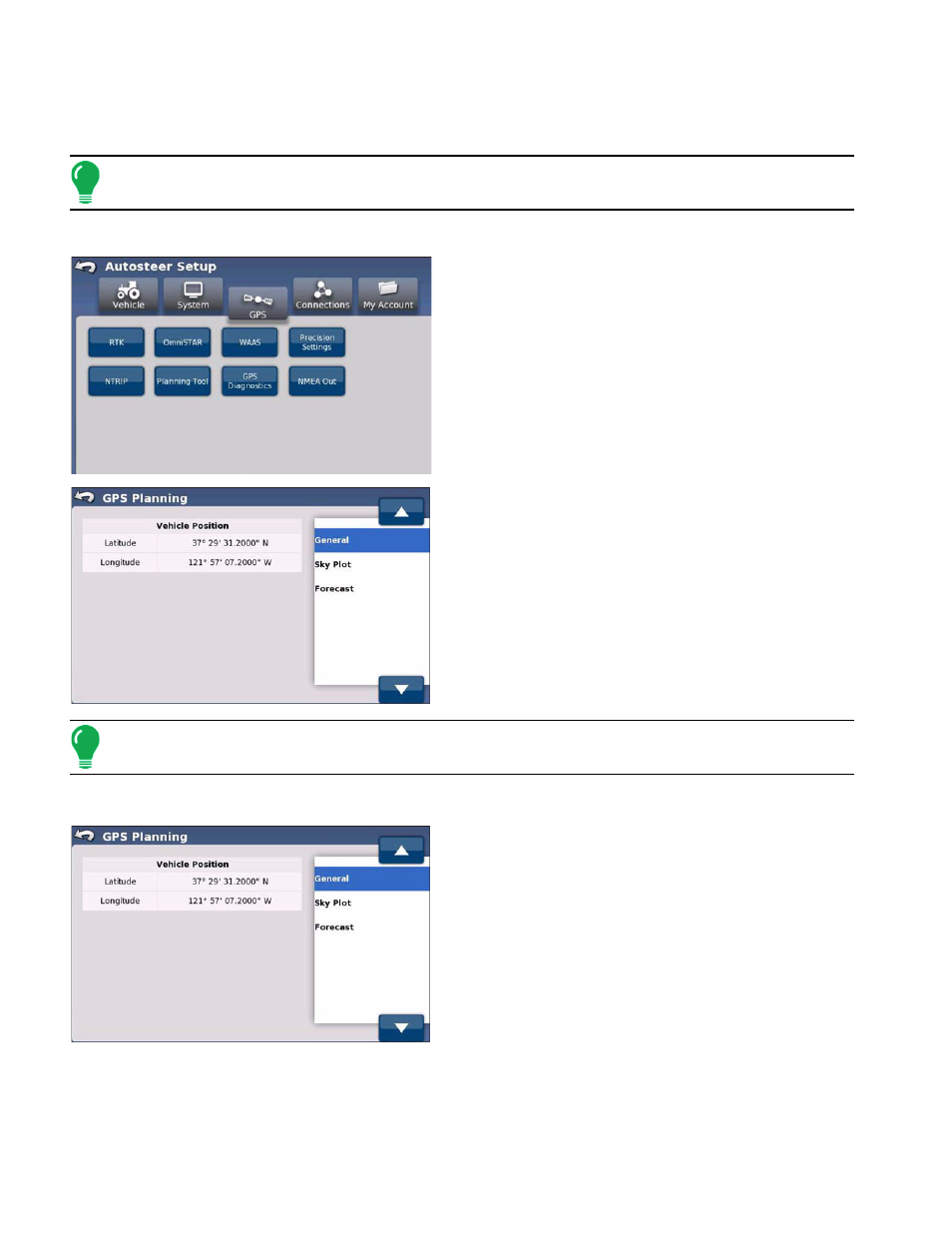

1. From the GPS screen, press the RTK button. The
RTK screen appears.
2. There are several RTK options available. Refer to
the following sections for details.
Note: The items in the right hand scrolling list change depending on which radio is installed and
which RTK Connection Type is selected.
General
The General item shows you if the system is receiving
a RTK fix solution and which channel or frequency is
current. The
Radio Type can be either 900 MHz (Freewave) or
AFLink (Satel).
• GPS Mode has three different status indicators as
follows:
- A Red indicator shows that RTK is not ready.
- A yellow indicator shows that the system is retrieving an
RTK corrections fix.
- A green indicator shows that RTK is ready.
- You will not be able to autosteer your vehicle before the Heading item (See the GPS Diagnostics
section for details.) displays a value.
• Distance to base shows the distance from the vehicle to the Base Station.
