16 Ag Leader Integra and Versa Firmware Version 4.3 / Edge Firmware Version 5.1

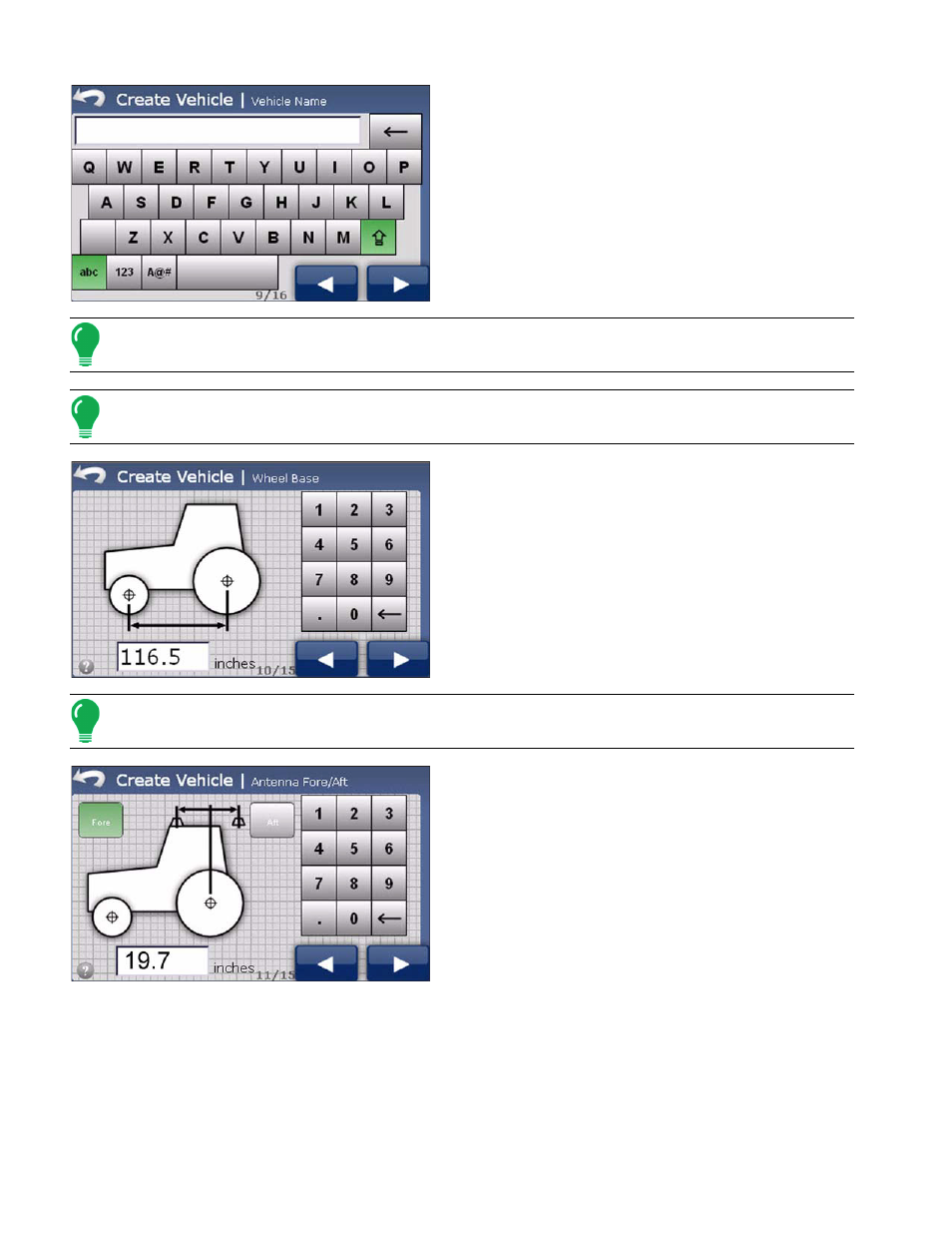

6. Enter a name for the vehicle and then press the
Right Arrow button. The Wheel Angle Sensor dialog
box appears.
7. Press the appropriate button. The Wheel Angle
Sensor screen appears.
Note: The Wheel Angle Sensor is optional equipment that may not be required on your vehicle.
Note: If the Wheel Angle Sensor option is changed after AutoCal is completed, the AutoCal must be
redone.
8. Enter the Wheel Base value using the numeric
keypad. Press the Right Arrow button. The Antenna
Fore/Aft screen appears.
Note: The choice of units of measurement is made in the display’s Console Setup General Tab.
9. Enter the Antenna Fore/Aft value using the numeric
keypad, and then press the Fore or the Aft button as
applicable to your installation. When finished, press the
Right Arrow button. The Antenna Lateral Offset screen
appears.
• Fore indicates the antenna is located in front of the
vehicle’s control point.
• Aft indicates the antenna is located behind the vehicle’s
control point.
• The Control Point of a vehicle is defined as:
- Standard Wheeled Vehicle - Rear Axle
- Track Vehicle - Center of tracks
- Articulated Tractor - Pivot point of vehicle
