Wheel Angle Sensor
The Wheel Angle Sensor is optional equipment. It
sends wheel angle position signals to the system in
order to ensure precise autosteering operations. The
Wheel Angle Sensor item appears on the scrolling list
when it is installed on the active vehicle. The Wheel
Angle Sensor screen displays the Wheel Angle Sensor
encoder counts when the sensor is functional.
U
SING THE
S
YSTEM
M
ENU
O
VERVIEW
The system menu features the following functions:
• System Health enables you to monitor system
parameters and performance.
• Manage Settings enables you to save, delete or reset the
information relative to the system database and log files.
• Accessories enables you to activate or deactivate
optional sensors.
• Technician is password protected for use by qualified
service technicians only.
• Software Upgrade enables you to
• with the latest application software available.
S
YSTEM
H
EALTH

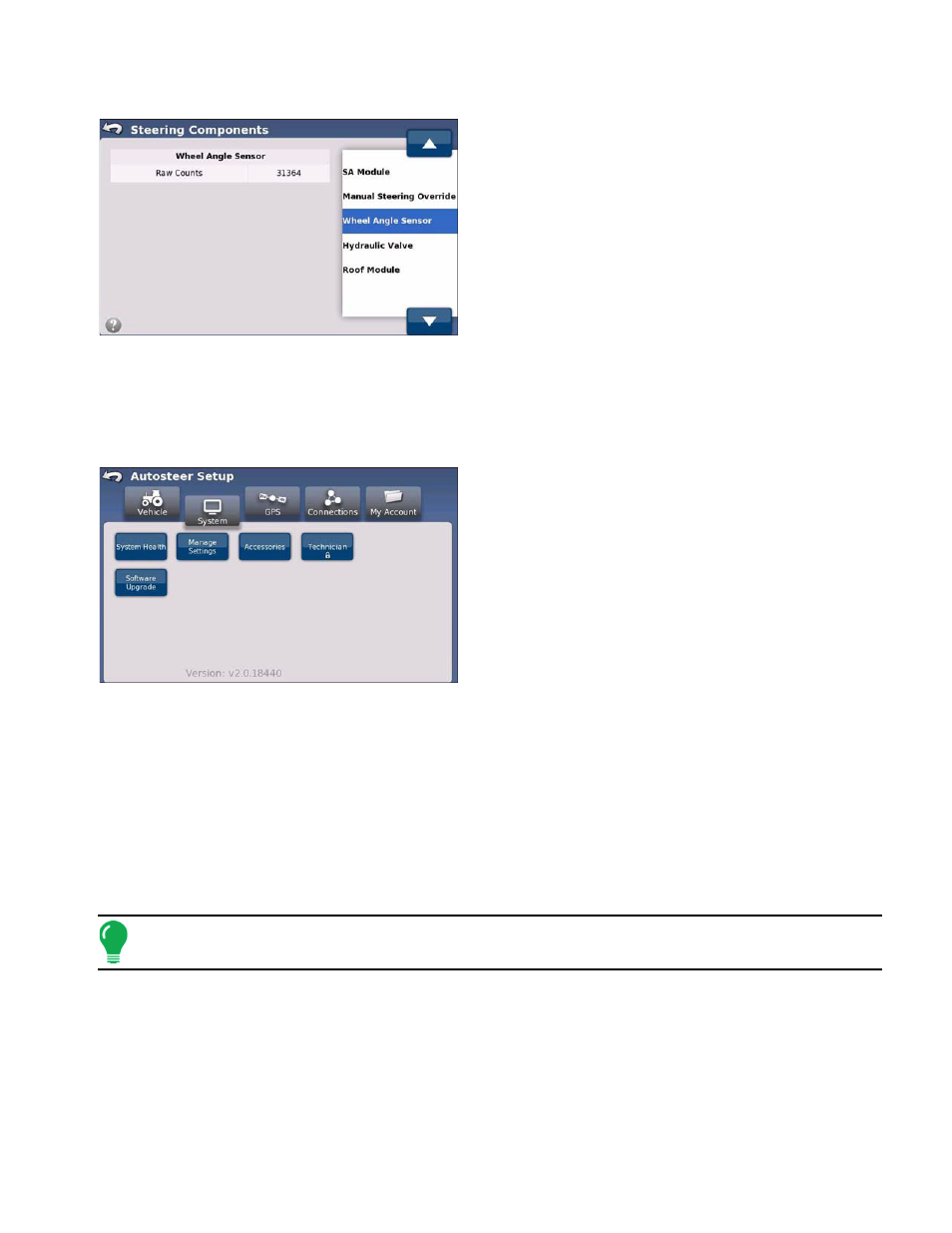

The System Health screen provides diagnostic and status information for various aspects of steering
system. Use the scrolling list on the screen right side to select the component for which you want health
information. The overview screen displays the status of the components. Use the up and down arrows to
select an item for which you want a detailed status.
To check the system parameters:
Note: The following is a example status request. The procedure is the same for each item from the
right side scrolling list.
