SERVICE

8

93

ALTOSONIC V12

www.krohne.com

04/2013 - 4002643502 - MA ALTOSONIC V12 R02 en

• Turn the hand wheel clockwise to move the end of the main shaft with the transducer outward.

The assembly of the transducer and the adapter is now accessible to be removed from the
shaft.

The removed transducer can now be detached from the transducer adapter. The adapter, the
transducer fastening nut and the bronze adapter fastening nut are available to be used to
continue the operation to re-install a new transducer.

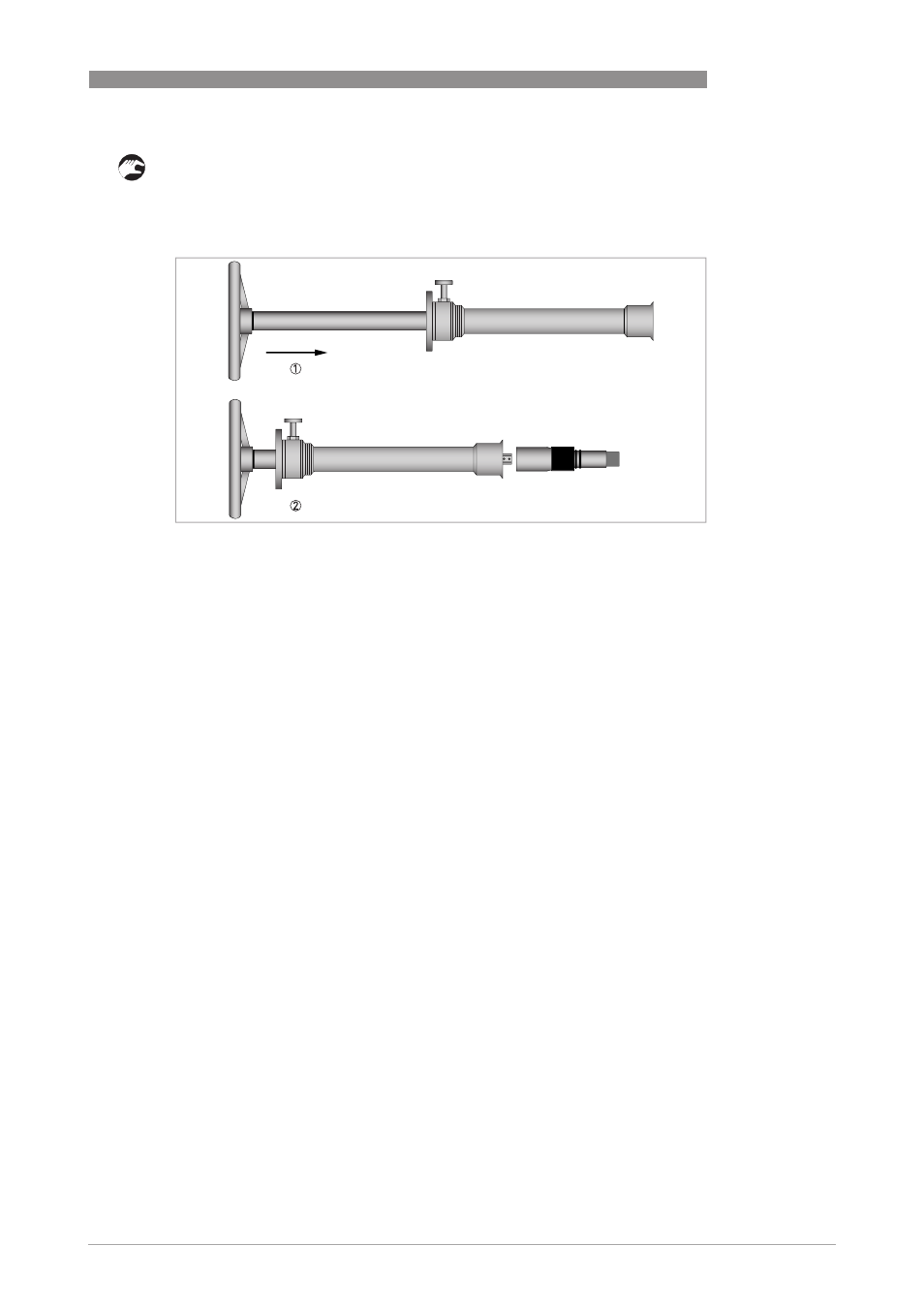

Figure 8-34: Extracted transducer

1 Turn wheel clockwise
2 Extracted transducer, fastening nut and transducer adapter
