7

SOFTWARE SERVICE TOOL

66

ALTOSONIC V12

www.krohne.com

04/2013 - 4002643502 - MA ALTOSONIC V12 R02 en

7.9.2 Reporting related to process values

For the reporting functions related to actual process values the same features and procedures
are applicable as valid for the parameters.

7.9.3 Reporting related to calibration parameters

The calibration parameters is a subset of the whole collection of parameters. The calibration
parameters are those parameters that will effect the value of the measuring results. Do not
modify these parameters after the meter has been calibrated.

For the reporting functions related to calibration parameters the same features and procedures
are applicable as valid for the parameters.

7.9.4 Reporting related to privileges

For the reporting functions related to privileges the same features and procedures are
applicable as valid for the parameters.

7.10 Logging data from a flowmeter

After connecting with a flowmeter, the default monitoring configuration file included in the

Quick Start” software package will start the logging process automatically. A predefined set of

data will be collected from the meter and stored as a file on disk.
A field in the status bar at the bottom of the screen will show a field displaying “Log.ON” with a
green background colour.

In the same field the name of the disk file where the data is stored is displayed between square
brackets.

When you open the “Monitoring” menu you will observe also a check mark to the left of the option

Logging” when data is actually being logged.

To stop or interrupt the logging process:

To stop or interrupt the logging process:

To stop or interrupt the logging process:

To stop or interrupt the logging process:

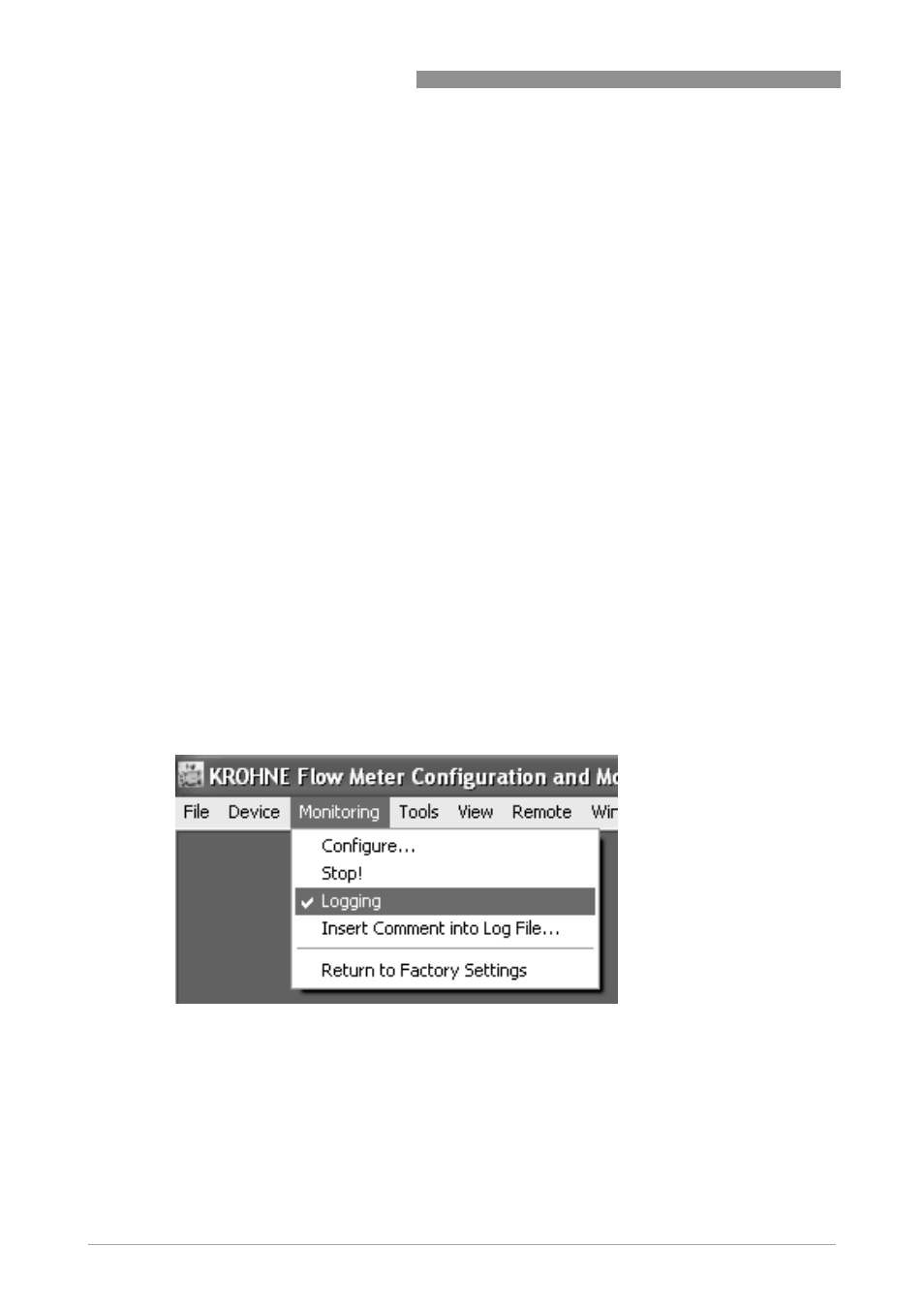

Figure 7-46: Monitoring menu
