7

SOFTWARE SERVICE TOOL

58

ALTOSONIC V12

www.krohne.com

04/2013 - 4002643502 - MA ALTOSONIC V12 R02 en

The size of the grid is now defined, however it can be adjusted at any time adding columns or
rows.

To define the information to be displayed by a specific cell:

To define the information to be displayed by a specific cell:

To define the information to be displayed by a specific cell:

To define the information to be displayed by a specific cell:

Step 1:

Step 1:

Step 1:

Step 1: Position the cursor on the cell to be defined.

Step 2:

Step 2:

Step 2:

Step 2: Click the desired cell with a click of the left mouse button.

Step 3:

Step 3:

Step 3:

Step 3: Open a menu with a right mouse click.

Step 4:

Step 4:

Step 4:

Step 4: Click “Cell Content…”.
In the dialogue box that appears, for the field “Cell Content Type”.

Step 5:

Step 5:

Step 5:

Step 5: Click “down” to open the value list to display the options:

Empty” / “User Text” / “Process Value Property”.

Step 6:

Step 6:

Step 6:

Step 6: Click “Process Value Property” .

Step 7:

Step 7:

Step 7:

Step 7: For the field “Process Variable” open the variable list .

Step 8:

Step 8:

Step 8:

Step 8: Click the variable to be displayed.

Step 9:

Step 9:

Step 9:

Step 9: For the field “Subitem” open the variable list.
Subitem is the array index for a variable defined as an array.

Step 10:

Step 10:

Step 10:

Step 10: Click the index of the array element to be displayed.

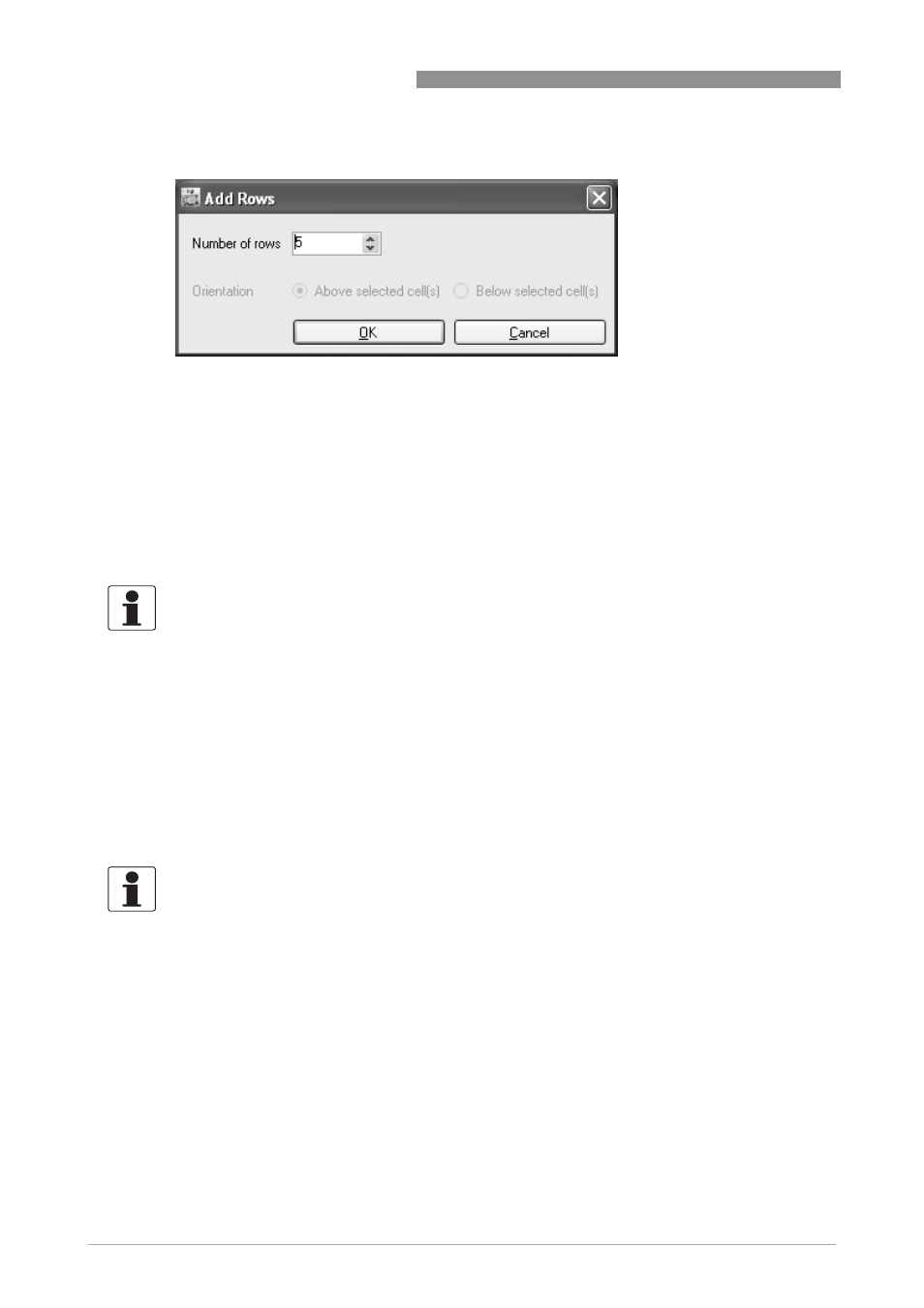

Figure 7-37: Add rows

INFORMATION!
Do not forget the next step! If you skip the cell selection and continue with the following steps
you might edit the content or format a cell you don't want to change.

INFORMATION!
Steps 6...8

Steps 6...8

Steps 6...8

Steps 6...8 can be done in two ways. After "Step 13" you find an alternative way.
