Steps to install a transducer:

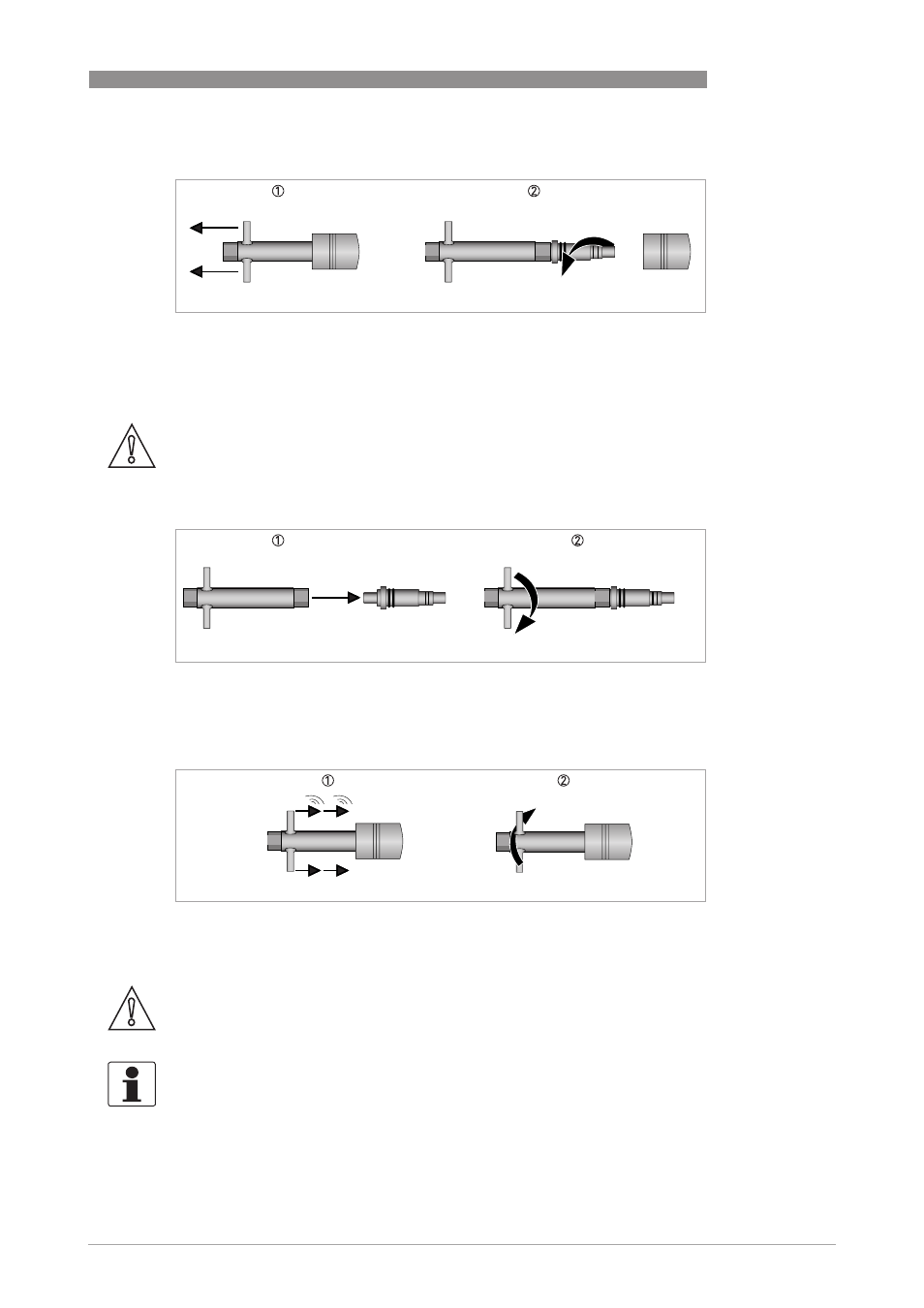

Figure 8-8: Pulling out the transducer

1 Pull to remove the transducer
2 Turn the transducer to loosen the transducer from the tool

CAUTION!

Make sure that the inside of the transducer nozzle is completely clean.

Make sure that the two O-rings of the new transducer are a little greasy.

Figure 8-9: Installing transducer in tool

1 Put the tool on the transducer.
2 Turn the tool clockwise to attach it to the transducer.

Figure 8-10: Replacing the transducer

1 Firmly push the wrench. Two o-rings snap in place.
2 Loosen the wrench by turning it counter clockwise.

CAUTION!
Make sure that the transducer does not come loose when you rmove the wrench.

INFORMATION!
Put a little grease on the screw thread of the transducer nut to make it easier to install.
