SERVICE

8

75

ALTOSONIC V12

www.krohne.com

04/2013 - 4002643502 - MA ALTOSONIC V12 R02 en

Steps to remove a transducer:

• Remove the Delrin protection cap (only for welded meter bodies).
• Untighten and release the small M2 screw (number 1 in picture below).

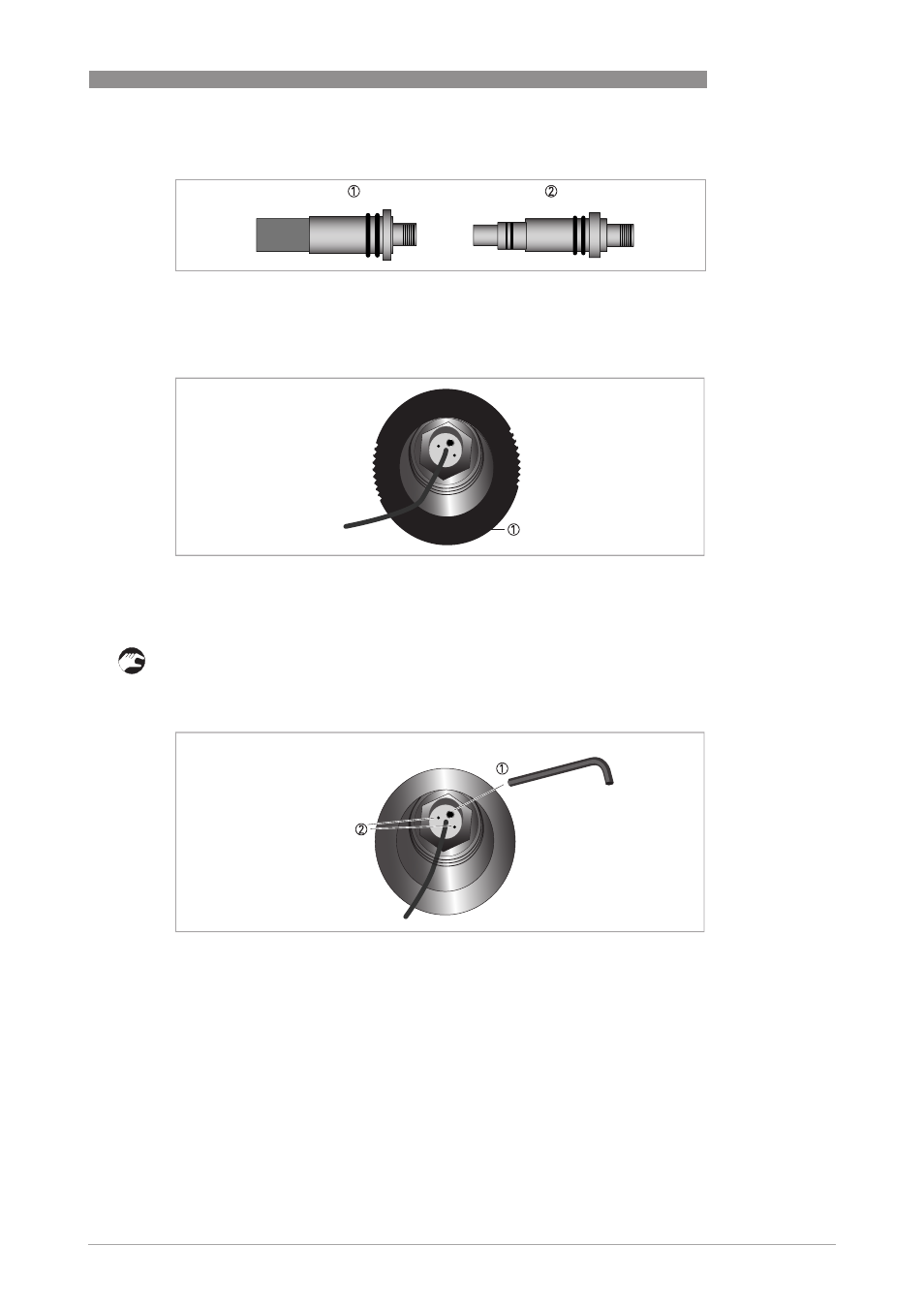

Figure 8-2: Transducer types

1 Epoxy type
2 Titanium type

Figure 8-3: Delrin protection cap

1 Delrin protection cap (only at welded meter bodies)

Figure 8-4: View at installed transducer

1 Hexagonal securing screw M2
2 Holes for removal of cap
