SOFTWARE SERVICE TOOL

7

63

ALTOSONIC V12

www.krohne.com

04/2013 - 4002643502 - MA ALTOSONIC V12 R02 en

As this report will occupy several pages you can use the buttons on top of the screen to select a
particular page.

The small panel at the left side lists – as a tree structure - all the items included in the report.
You can use the scroll bar in the right of the small panel to position immediately the report page
where this parameter is printed in front in the right panel. You can click the highlighted “tree”
icon to remove this “tree” panel, click again to let it reappear.

Printing a formatted report

Printing a formatted report

Printing a formatted report

Printing a formatted report

Click the button with the printer icon in the upper left of the window to get a printed copy of the
report.

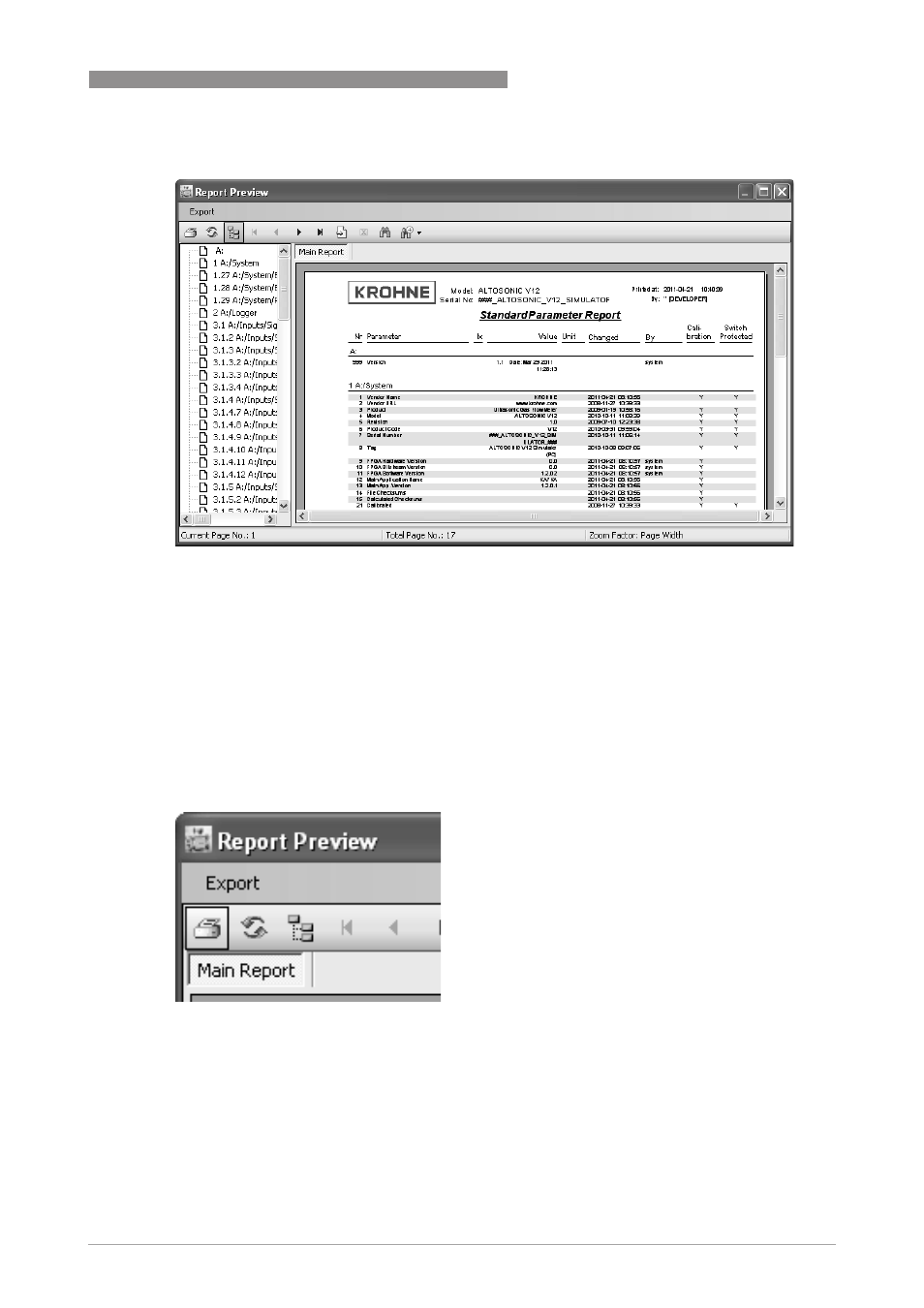

Figure 7-41: Preview of report

Figure 7-42: Report preview
