SERVICE

8

83

ALTOSONIC V12

www.krohne.com

04/2013 - 4002643502 - MA ALTOSONIC V12 R02 en

Four transducers (belonging to two acoustic paths) are located on the back side of the
flowmeter. The codes and locations of these transducers are indicated in the figure below.

Two transducers are located on the top of the ultrasonic flowmeter. The codes and locations of
these transducers are indicated in the figure below.

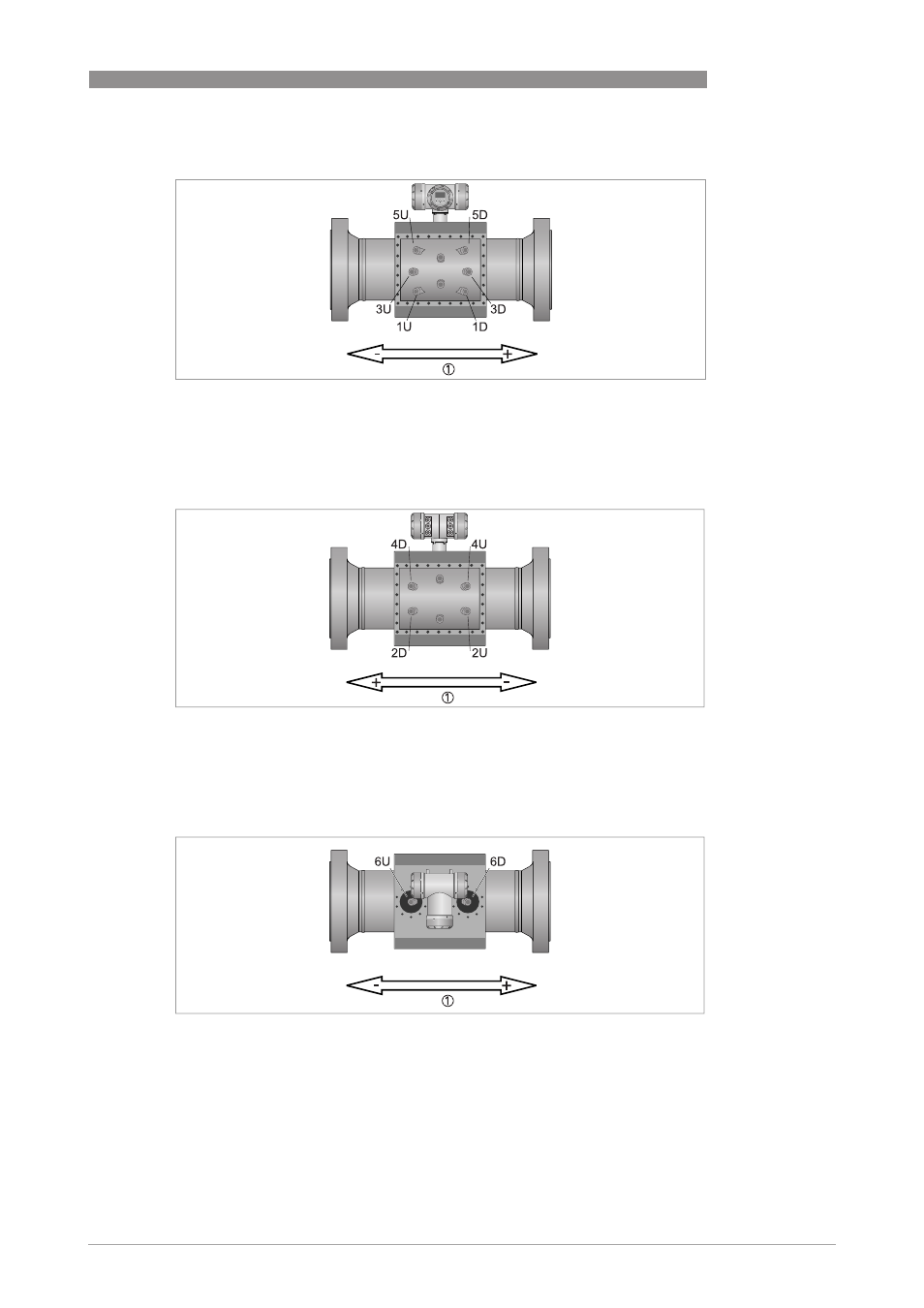

Figure 8-15: Transducers on front side of the flowmeter

Figure 8-16: Transducers on back side of the flowmeter

Figure 8-17: Transducers on top side of the flowmeter
