SOFTWARE SERVICE TOOL

7

43

ALTOSONIC V12

www.krohne.com

04/2013 - 4002643502 - MA ALTOSONIC V12 R02 en

Step 1:

Step 1:

Step 1:

Step 1: Click the button “File” to open the File menu.

Step 2:

Step 2:

Step 2:

Step 2: Select the option “Open Monitoring Configuration”.

A browser window will open.

Step 3:

Step 3:

Step 3:

Step 3: Select a monitoring configuration file and click “Open”.

As a start you can select the default monitoring configuration file.
A dialog box will appear, asking whether you want to start the monitoring function now:

Step 4:

Step 4:

Step 4:

Step 4: Click “Yes” to start the monitoring function.

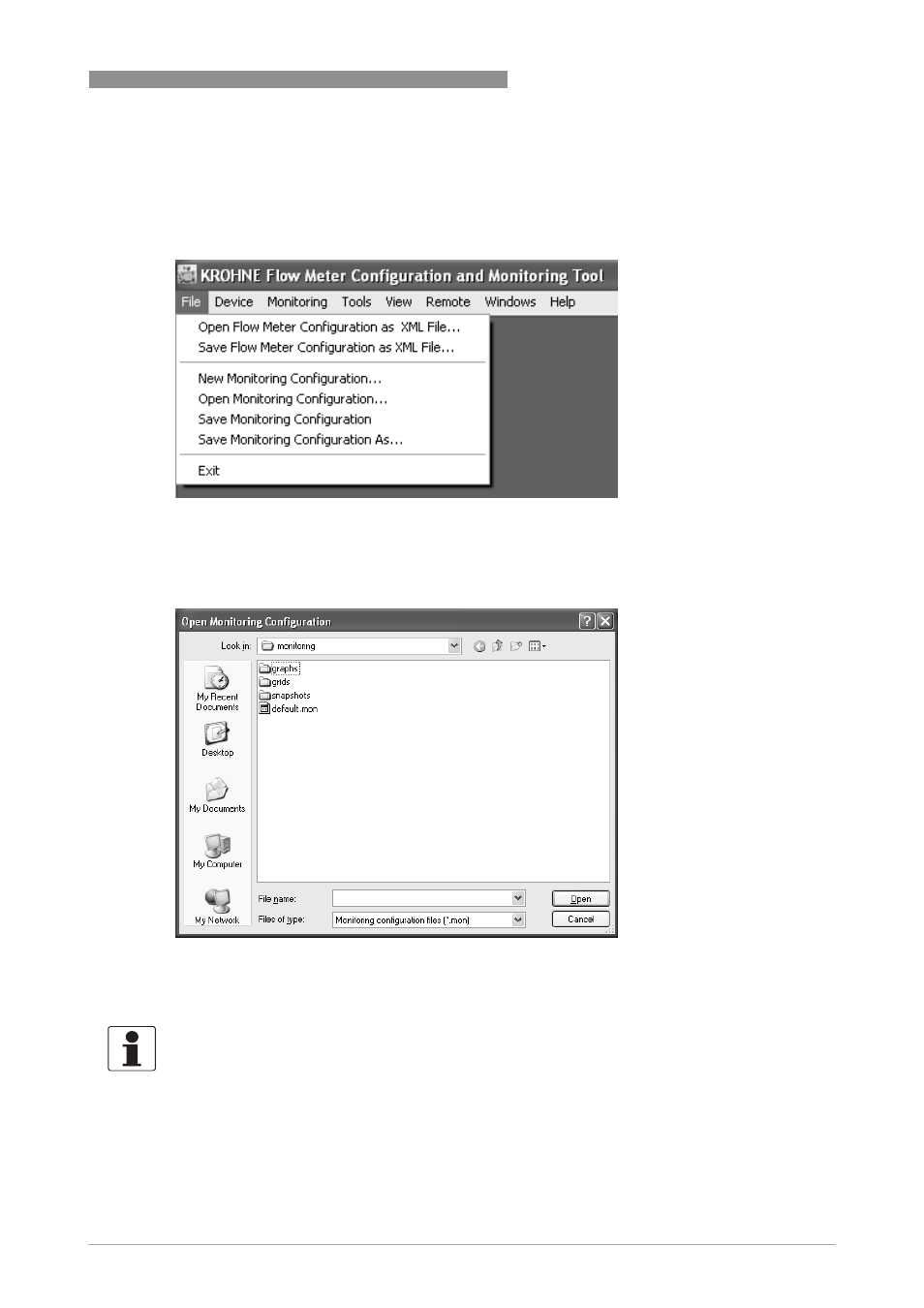

Figure 7-11: File menu

Figure 7-12: Open monitoring configuration

INFORMATION!
You can create and save one or more monitoring configurations of your own, according to your
own preferences. Later it will be explained how you can do this.
