8
SERVICE
86
ALTOSONIC V12
www.krohne.com 04/2013 - 4002643502 - MA ALTOSONIC V12 R02 en
• Fasten the transducer adapter by means of the bronze nut using a 5mm hexagon key.
Step 5: Mount the adapter plate
Square wedge model Square wedge model Square wedge model Square wedge model

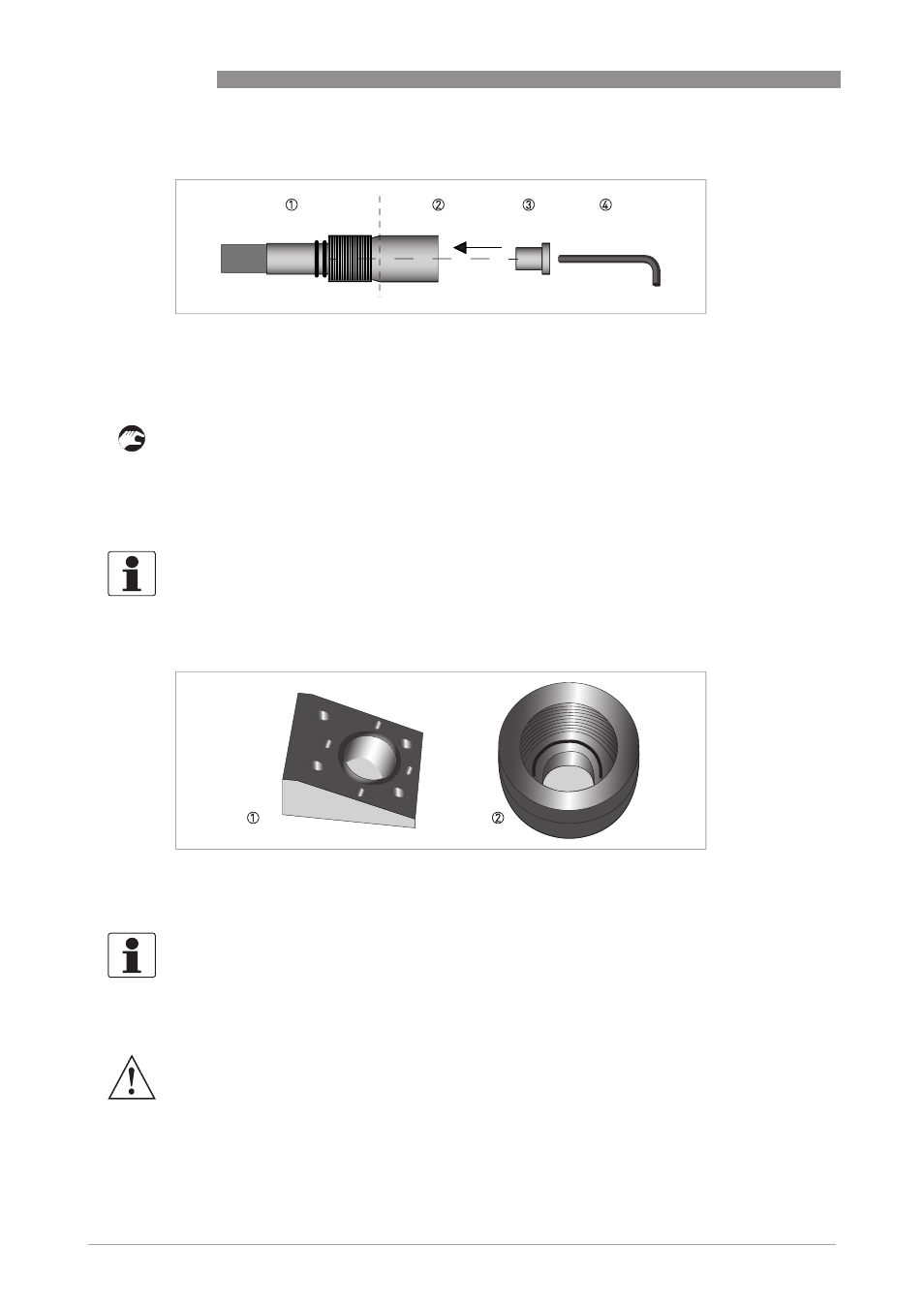

Figure 8-21: Mount bronze fixation nut
1 Transducer and fastening nut inside the flowmeter
2 Mounted transducer adapter.
3 Bronze nut
4 Use a 5 mm hexagon key.
INFORMATION!
To be able to install the retraction tool on the transducer port, a transducer adapter plate must
be used. Two different models are available. It depends from the construction of the flowmeter
which adapter must be installed.
Figure 8-22: Two models of transducer adapter plates
1 Square wedge shaped transducer adapter plate
2 Round shaped transducer adapter plate
INFORMATION!
The square wedge model is used for flowmeters that are machined out of one piece of metal. The
round model is used for flowmeters with welded transducer ports.
WARNING!
Make sure that the pressure sealing (O-ring) between the adapter plate and the meter body is in
good shape and fitted properly, if damaged replace (size 43.0 x 3.5 mm).
